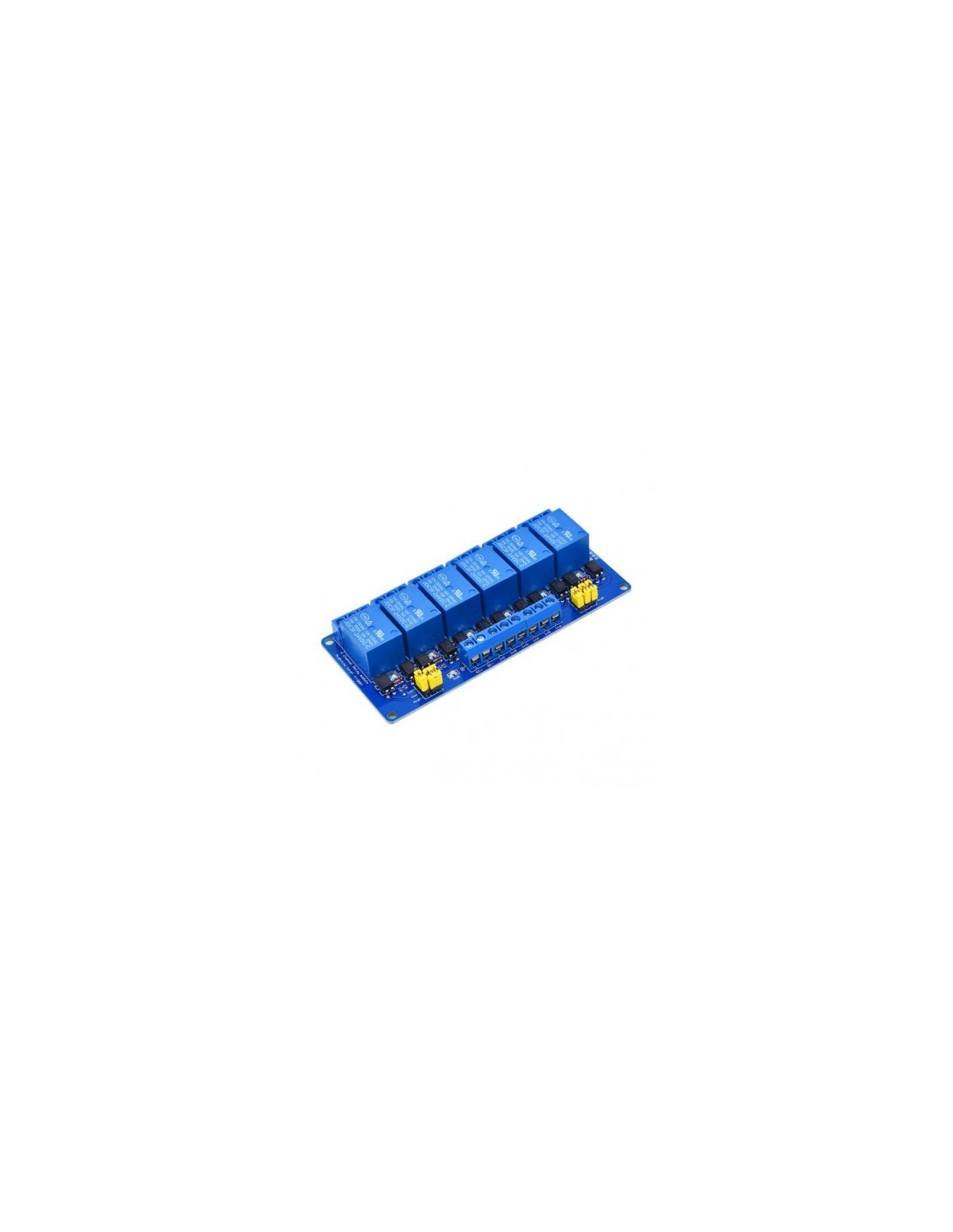

6 Channel 12V Relay with Optocoupler. High / Low Level

Introducing our 6 Channel 12V Relay Module – the ultimate solution for efficient and reliable control of your electronic devices. With its robust design and versatile features, this relay module is an indispensable tool for automation projects, electronics enthusiasts, and professionals alike.

Key Features:

1. Maximum Load Capacity: This relay module can handle a maximum load of AC 250V/10A and DC 30V/10A, ensuring compatibility with a wide range of electronic devices and systems.

2. Optocoupler Isolation: Equipped with optocoupler isolation, this module offers strong driving ability and stable performance. The chip optocoupler isolation ensures reliable electrical isolation between the control circuit and the load, enhancing safety and performance.

3. Trigger Current: With a trigger current of just 5mA, this relay module is highly efficient and responsive, providing smooth and reliable operation.

4. High/Low Level Trigger Option: Each channel of the module can be easily set up for high or low-level triggering, offering flexibility and customization according to your specific needs.

5. Fault-Tolerant Design: Even in the event of a control line break, the relay will not act, ensuring uninterrupted operation and peace of mind.

6. User-Friendly Interface: The module features a humanized interface design, with all terminals conveniently labeled and easily accessible. This allows for straightforward connections and hassle-free operation, making it suitable for users of all levels.

7. LED Indicators: The module is equipped with a power indicator (green) and six relay status indicators (red), providing visual feedback for easy monitoring and troubleshooting.

8. Compact Design: With a compact size of 108mm x 50mm x 18.6mm (length x width x height) and four fixed bolt holes, this relay module is easy to install and integrate into your projects.

Module Interface:

• DC+: Connect to the power positive pole.
• DC-: Connect to the power negative pole.
• IN1-IN6: Control the corresponding relay operation by setting high or low levels.
• Relay Output: Features 18 wire interfaces for easy connection and use.
  • NO1--NO6: Relay normally open contacts.
  • COM1--COM6: Relay common interfaces.
  • NC1--NC6: Relay normally closed contacts.

High and Low Level Trigger Option:

• S1-S6: Select high or low-level triggering for each relay channel.

Package Includes:

• 1 x 6 Channel 12V Relay Module

Experience seamless control and automation with our 6 Channel 12V Relay Module. Whether you're working on home automation, robotics, or industrial applications, this relay module delivers unmatched performance and reliability. Upgrade your projects today!
