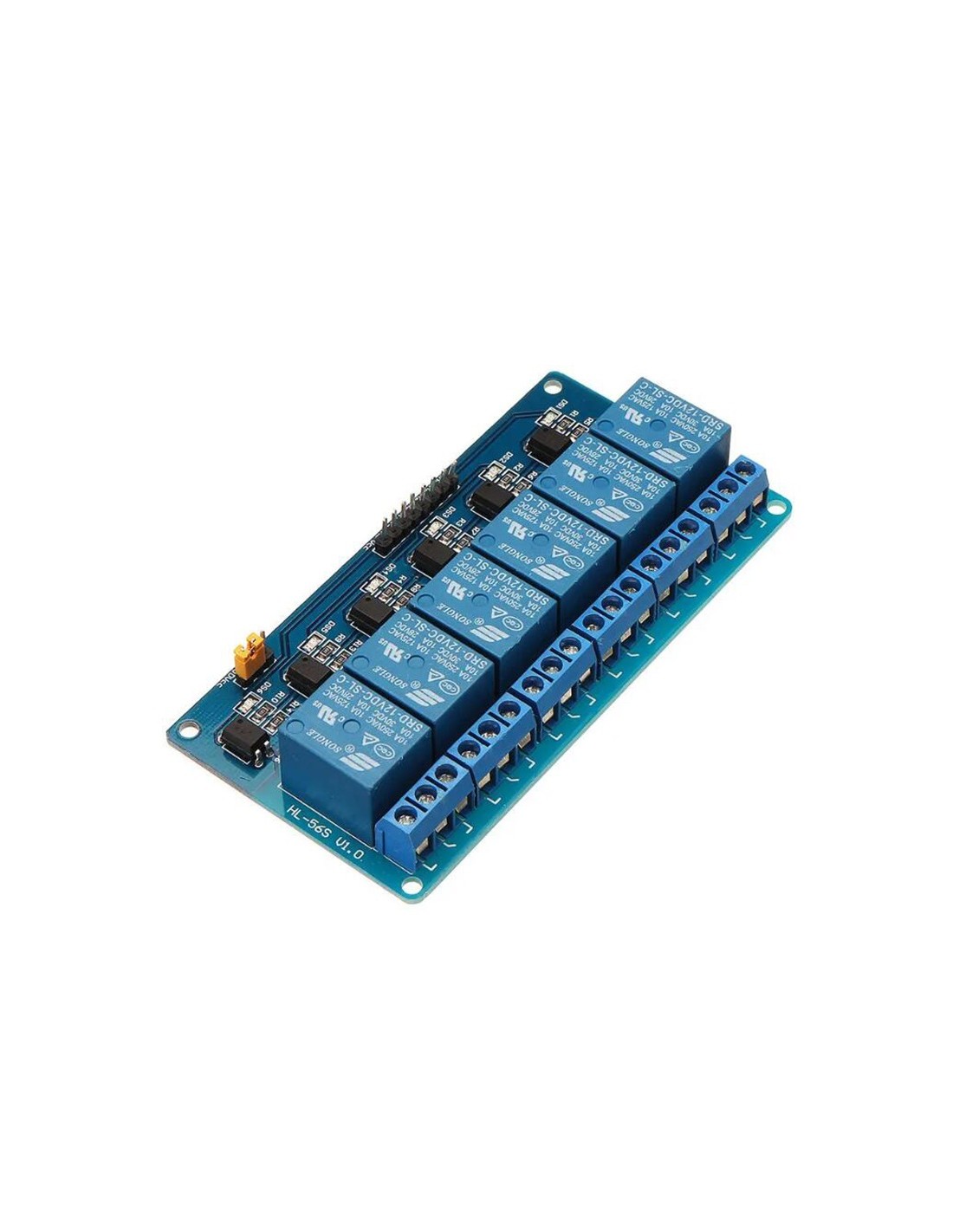

12V 6 Channels Optocoupler Isolation Relay: Low Level

Introducing our 12V 6 Channels Optocoupler Isolation Relay Module - designed specifically as a low-level relay to offer precise and reliable control for various applications. Engineered with precision and utilizing high-quality components, this module provides unparalleled performance and versatility for low-level triggering scenarios.

Technical Specifications:

1. Relay Load Capacity: The horizontal block features genuine high-quality relays capable of handling significant loads: AC 250V/10A, DC 30V/10A.

2. Optocoupler Isolation: Utilizing patch light drift isolation technology, this module ensures strong driving ability and stable performance, with a trigger current as low as 5mA.

3. Operating Voltage: The module operates at a working voltage of 12V, ensuring compatibility with various power supplies.

4. Flexible Triggering: Each channel of the module can be triggered by setting the low level through the line, providing customizable control options.

5. Fail-Safe Design: In the event of a control line break, the relay remains unaffected, preventing unintended operation and ensuring reliability.

6. Indicator Lights: Equipped with a power indicator (green) and 6 relay status indicators (red), allowing for easy monitoring of the module's operation.

7. User-Friendly Interface: The interface design is intuitive and user-friendly, with all interfaces directly accessible through the terminal block, offering convenience and ease of use.

8. Mounting Options: Featuring 4 national bolt holes (hole diameter: 3.1mm) spaced at 136mm x 44.5mm, facilitating secure and stable mounting.

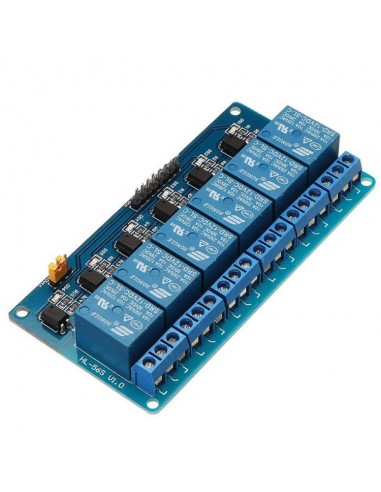

Module Interface:

1. DC+ and DC-: Connect to the positive and negative poles of the power supply respectively, with voltage options including 5V, 9V, 12V, and 24V.

2. IN1-IN8: Control the corresponding relay channels by setting the low level.

3. Spiral Output: Equipped with a 24-wire interface for easy connection, including:

   • NO1--NO8: Normally open interfaces for each channel.
   • COM1--COM8: Common electrical interfaces.
   • NC1--NC8: Normally closed interfaces for each channel.

Low-Level Trigger Selection:

• S1-S8: Low-level trigger selection for each channel, enabling precise control according to your requirements.

With its robust construction, advanced features, and user-friendly design, our 12V 6 Channels Optocoupler Isolation Relay Module offers unparalleled performance and reliability for low-level triggering applications.
