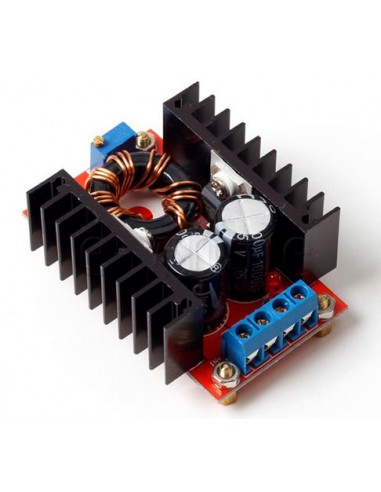

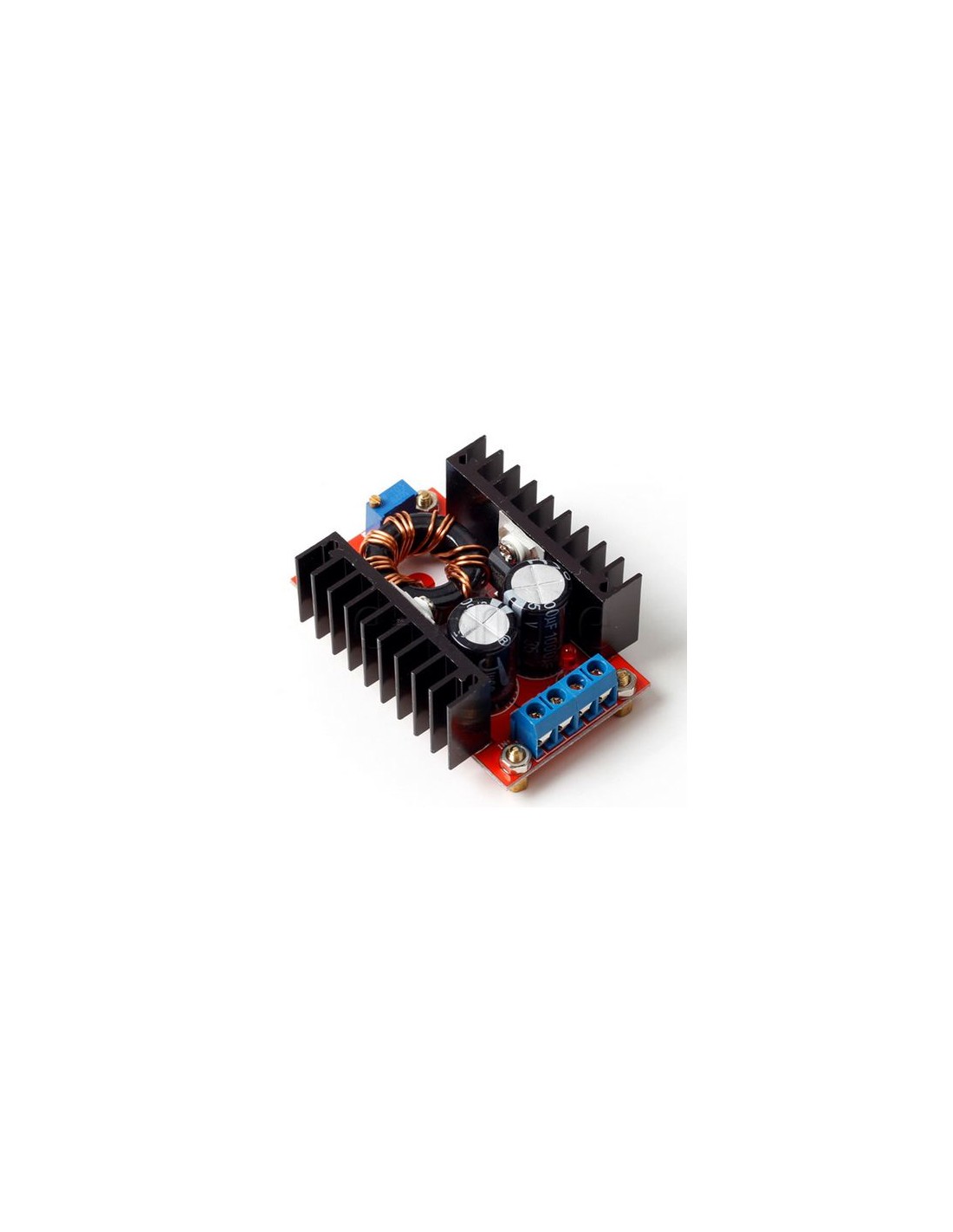

High Power ADJ DC Boost Module 150W 10A

High Power ADJ DC Boost Module 150W 10A

Backorder (Out of Stock)
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.


  • Properties: non-isolated step-up module
  • Size: Length 65MM * High 23MM * (W 56.5MM including heatsink)
  • Input: IN + input positive level, IN-input negative
  • Output: OUT + output positive level, OUT-output negative
  • Wiring: free soldering terminals
  • Input voltage :10-32V
  • Output voltage: adjustable (12-35V)
  • Output Current: 6A (MAX)
  • Input Current: 10A (MAX) (Please enhance heat dissipation than 10A)
  • Output power: natural cooling 100W (MAX), plus fan 150W (MAX)
  • Easy to drive 65W – 90W dual-core laptops, using battery to boot 19V 3.42A laptop, the temperature of the module is only 45oC
  • Conversion efficiency: 94% (input 16V output 19V 2.5A when measured) (for reference only)
  • Operating temperature: Industrial grade (-40 ℃ to +85 ℃) (ambient temperature exceeds 40 degrees, lower power use, or add a fan)
  • Full load temperature rise: 45 ℃
  • Non-Load Current: 25mA typical
  • Short Circuit Protection: None (Please install overcurrent protection devices)
  • Input Reverse Polarity Protection: None, at the input diode in series
  • Weight: 70G
  • DIY an output adjustable vehicle power supply, only need access to your 12V power input, the output voltage can (12-35V)  continuously adjust, but the output voltage can not be lower than the input voltage.
  • Universal on-vehicle laptop power supply. Input connector on your 12V power supply, the output voltage is adjusted to your laptop to work.
  • Boost charger, you can use the 12V power supply is higher than 12V battery charging, for example, 24V battery.
  • Power for your electronic devices, as long as the voltage and current of the voltage regulator to your needs can not exceed the rated current is working properly.
  • Primary front level system power supply, when you do a project at the time of 10-18V input when the system board and you need to supply 24V and about its great power, with ordinary DC-DC module power is too small , then you choose this module we will be your best choice, do not debug directly on the machine to work, easy to do and efficient power boost.
