ADC - ADS1115 16bits ADC+PGA Breakout...

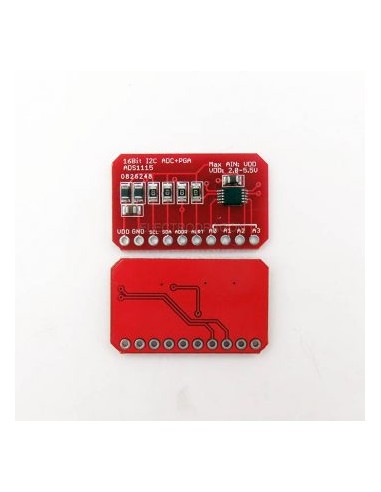

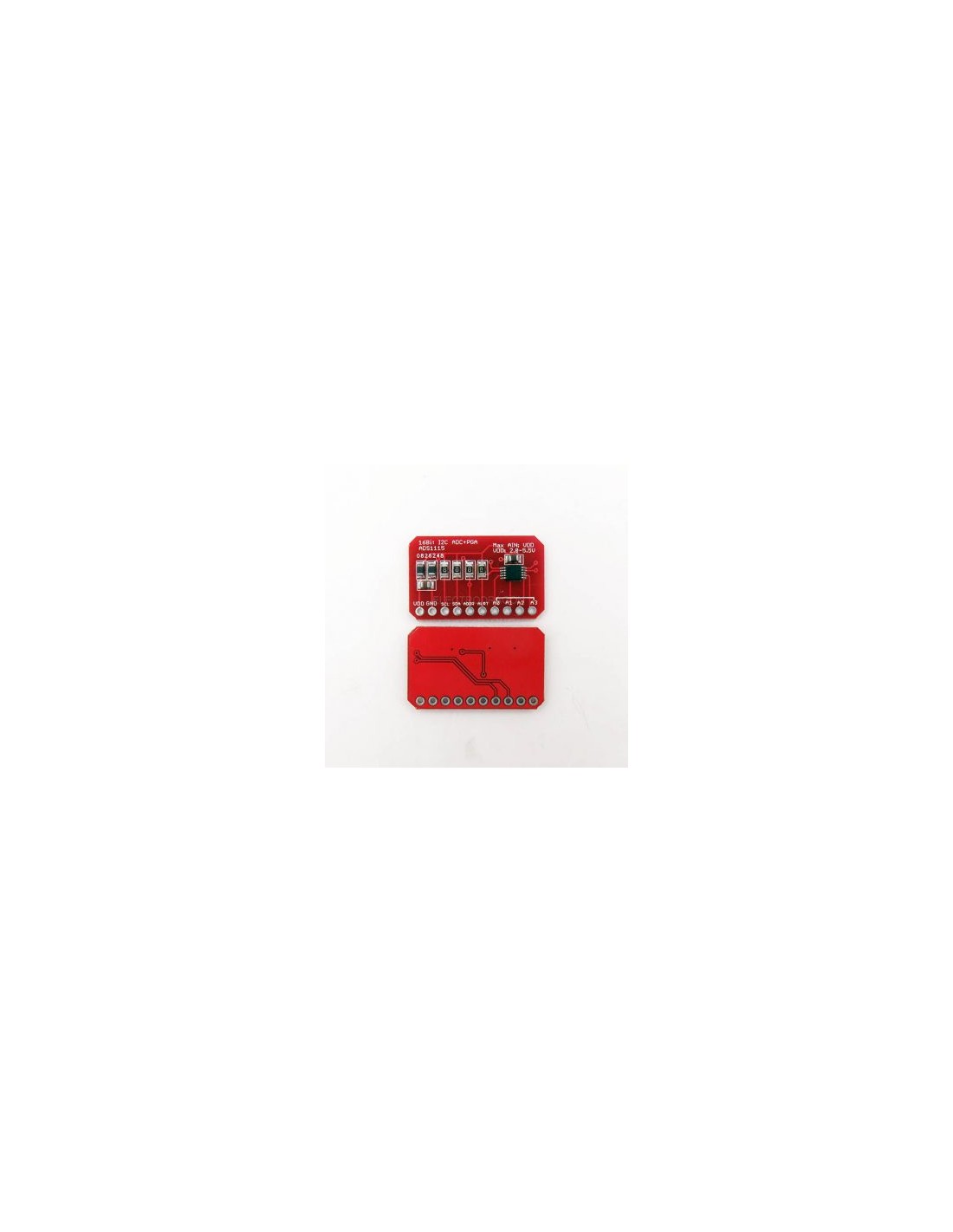

ADC - ADS1115 16bits ADC+PGA Breakout Board

COM-00456
Backorder (Out of Stock)
R274.80
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

Product Description

  • Wide supply range VDD : 2-5.5V
  • Low Power consumption:
    • Continuous Mode: Only 150µA
    • Single-Shot Mode: Auto Shut-Down
  • Programmable data rate: 8-860 SPS (samples/second)
  • Internal Low drift voltage reference
  • Internal oscillator
  • Internal PGA (programmerable gain amplifiter,  up to x16)
  • I2C interface connection, pin address configurable, 7-bit addresses between 0x48-0x4B, (see the datasheet table 5)
  • Four single ended, or two differential inputs
  • Programmable comparator
