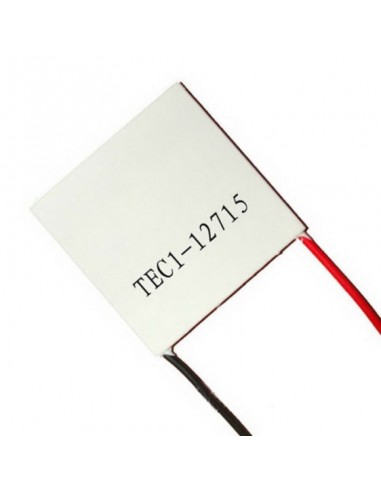

Thermoelectric Cooler (Peltier) - TEC1 - 12715

Heatsink Thermoelectric Cooler Peltier Plate Module
POW-00214
In Stock
R150.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Description:
Wire specification: lead long 2008mm RV standard conductor single head 5mm tin plating
Internal resistance: 0.8~0.9ω (ambient temperature 231℃, 1kHZ AC test)
Maximum temperature difference: 62 ℃ above
Working current: imax=11.8A (max voltage. 5V start 15A)
Rated Voltage: literal (maximum voltage: 5V)
Cooling power: 142W (high cooling surface temperature will reduce cooling power)
Assembling pressure: 85n/cm2
Working environment: Temperature range -55℃~83℃ (high ambient temperature will directly affect refrigeration efficiency)
Packaging process: Ambient standard 704 Silicone rubber seal
Packaging standards: Foam box packaging, storage conditions ambient temperature -10℃~40℃
Storage conditions:-40~60℃
Power Requirements: Single voltage 12V, current 15A above the working power supply (series and parallel use)
Device characteristics: Redline positive, black line negative (there is literally refrigeration surface, no literal heat dissipation surface)
Size: 40mm x 40mm x 4mm

Features:
Solid state, vibration free, noise-free.
Simple to install and operate.
The hot surface needs to be a good heat sink.



Peltier Cooling kit can be purchased seperatly.
