Ntag216 Black Stainless Steel Card

Ntag216 Black Stainless Steel Card

NFC Smartcards in Stainless Steel with a NTAG216 Chip
WIR-00309
In stock with us
R165.00
Tax included
24 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

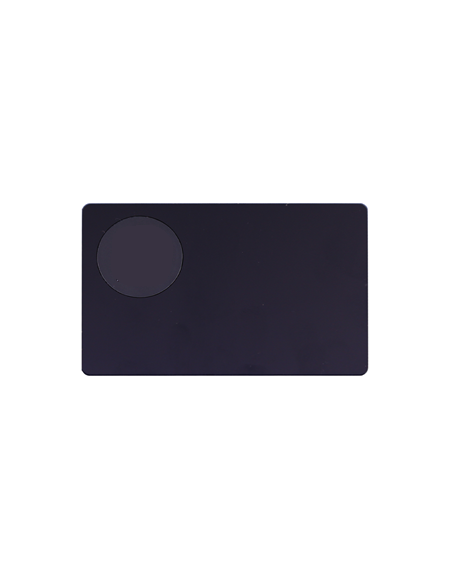

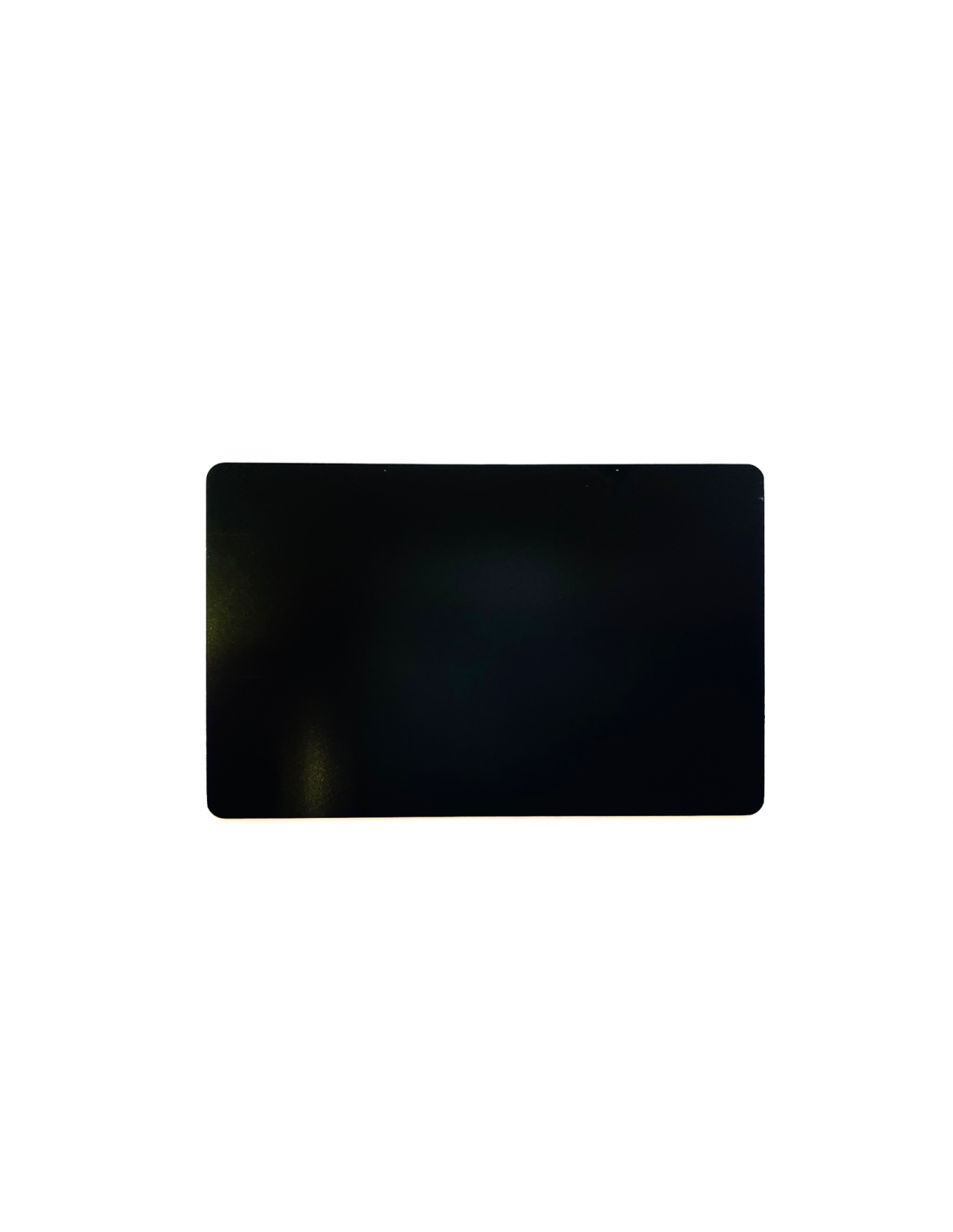

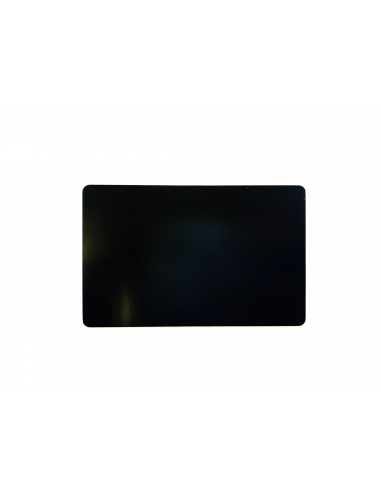

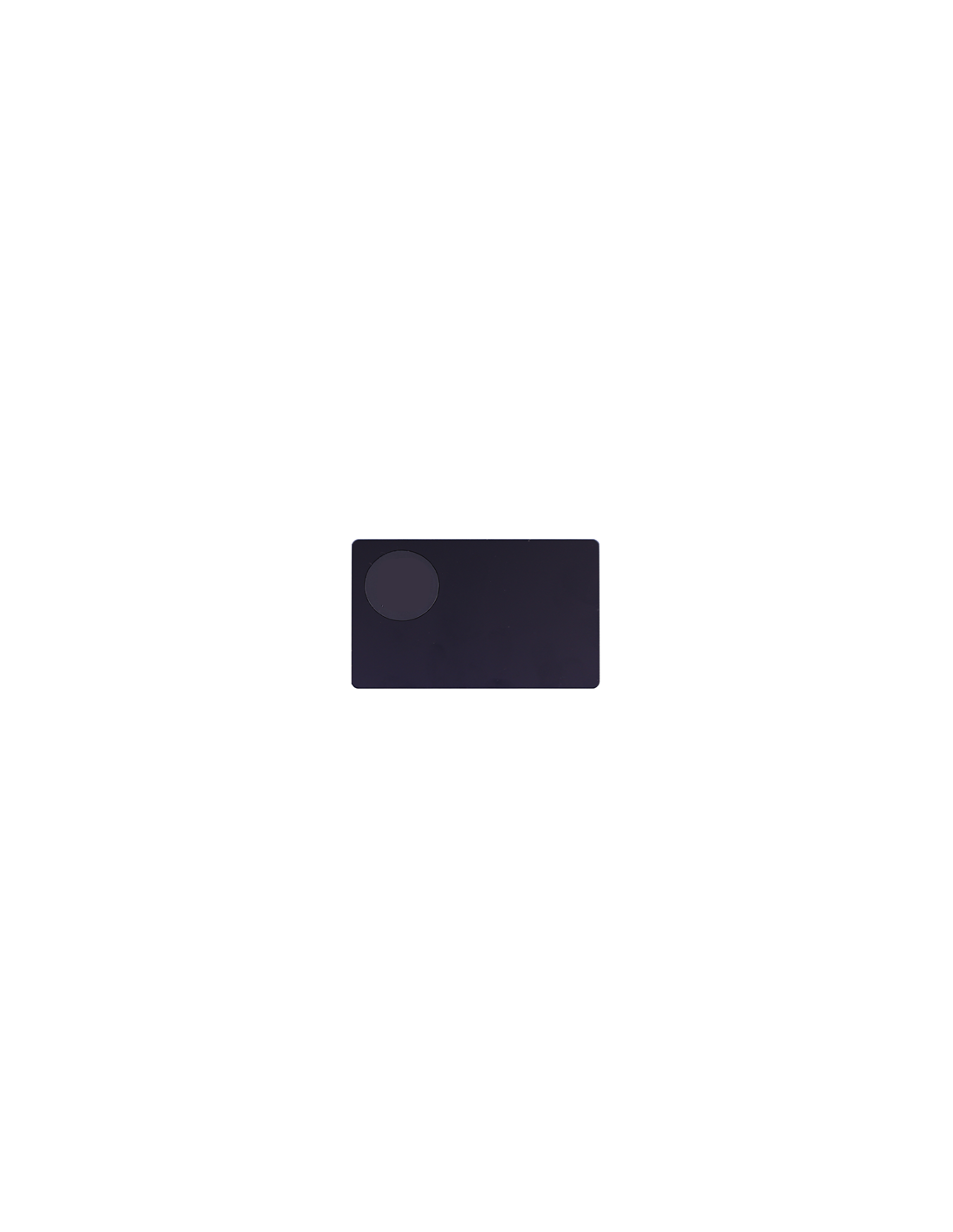

This is a black stainless steel NFC card with an Ntag216 Chip.

It has more memory than the Ntag213 & Ntag215. It has 924 bytes organised 231 pages with 4 bytes per page.

NTAG technology has a contactless chip, meaning it is great for access control, cashless vending, stock tracking, logical access, storing contact details, web links and more. This chip runs at 13.56MHz frequency. The NTAG 216 NFC chip has 924 bytes of usable memory and is suitable for web addresses, trigger, task launcher and similar NFC applications. NTAGs are the most suitable for marketing campaigns, because they are compatible with the different mobile operating systems: Android, Windows Phone and BlackBerry.

Features and benefits
Contactless transmission of data and supply energy
Operating frequency of 13.56 MHz
Data transfer of 106 kbit/s
Data integrity of 16-bit CRC, parity, bit coding, bit counting
Operating distance up to 100 mm (depending on various parameters as e.g. field strength and antenna geometry)
7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)
True anticollision
ECC based originality signature
Fast read command
UID ASCII mirror for automatic serialization NDEF messages
Automatic NFC counter triggered at read command
NFC counter ASCII mirror for automatic adding actual read counter value to the NDEF message
Configurable Field detect pin with open drain implementation
SLEEP mode to disable or re-enable the NTAG21xF device from the connected electronics device side

EEPROM
924 bytes organized 231 pages with 4 bytes per page
888 bytes freely available user Read/Write area (222 pages)
4 bytes initialized capability container with one time programmable access bits
Field programmable read-only locking function per page for the first 16 pages
Field programmable read-only locking function above the first 16 pages per 16 pages for NTAG216F
Configurable password protection with optional limit of unsuccessful attempts
Anti-tearing support for capability container (CC) and lock bits
ECC supported originality check
Data retention time of 10 years
Write endurance 100.000 cycles
What is NFC?
Near Field Communication (NFC) technology makes life easier and more convenient for consumers around the world by making it simpler to make transactions, exchange digital content, and connect electronic devices with a touch.

A standards-based connectivity technology, NFC harmonizes today's diverse contactless technologies, enabling current and future solutions in areas such as:

Goods and device authentication
Call request
SMS
Call to action
Bluetooth pairing
WiFi pairing
Connection handover


Product Details

24 Items

Reviews

No reviews
