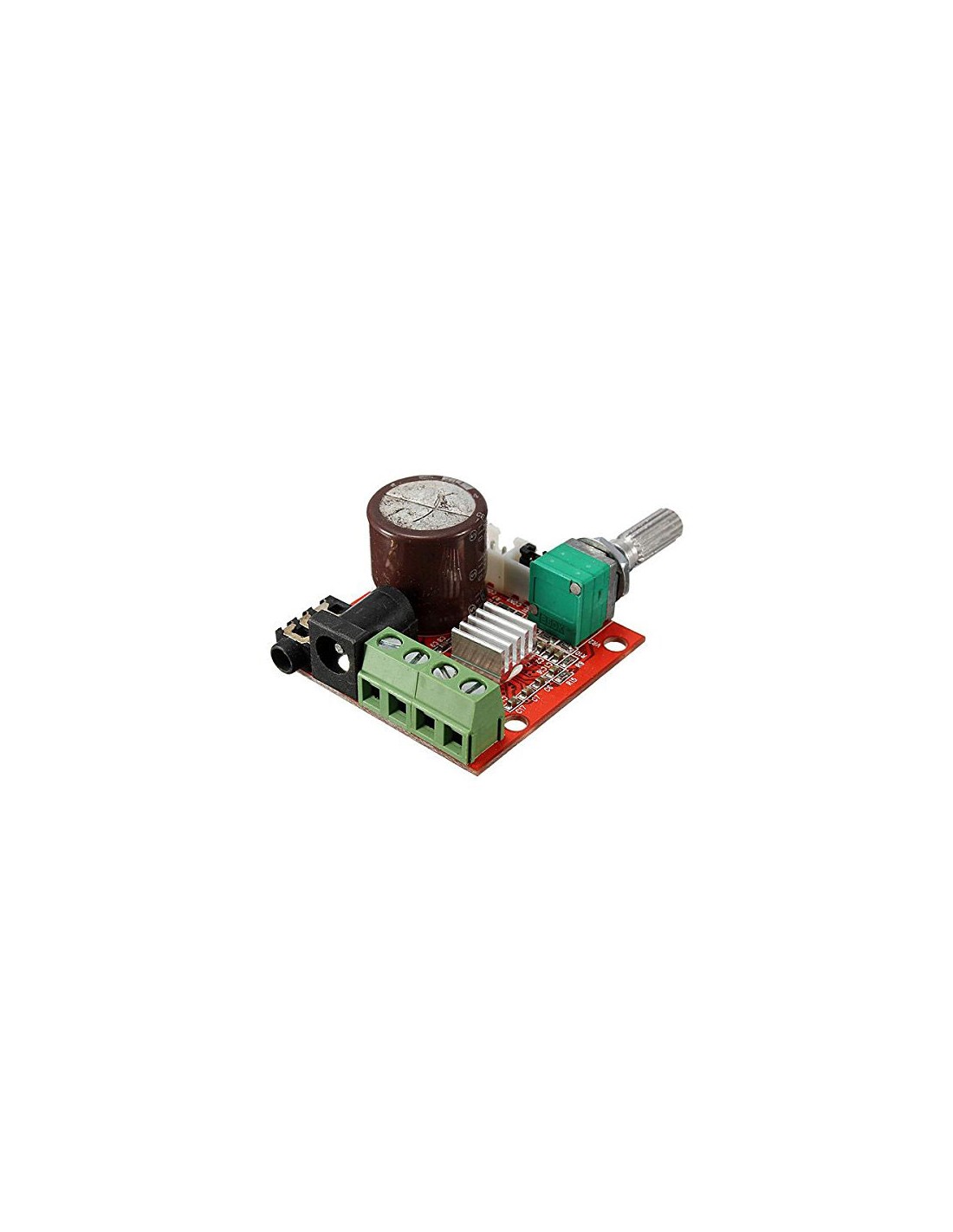

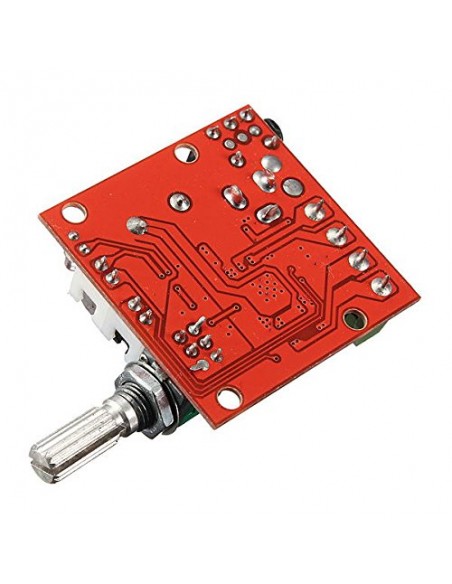

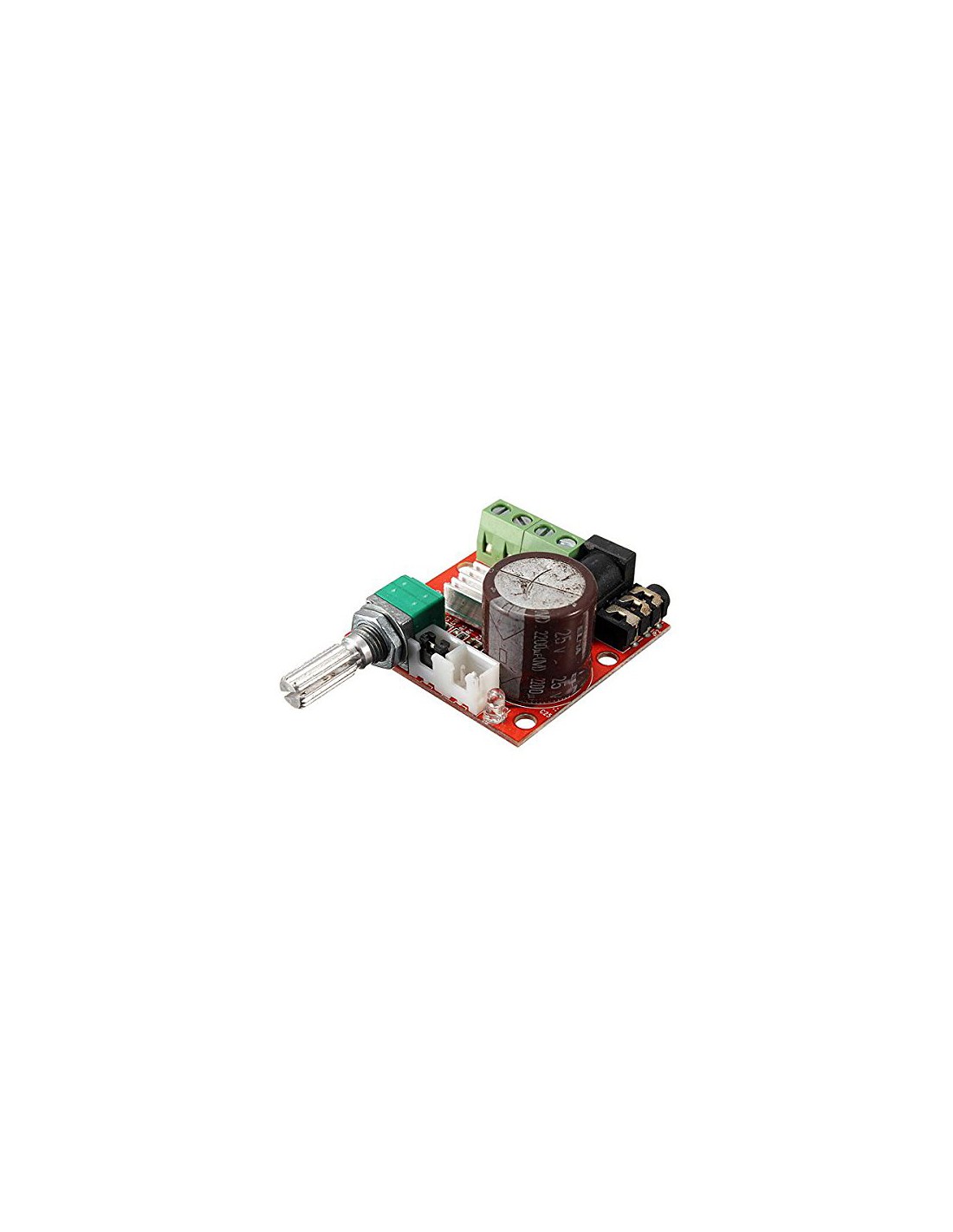

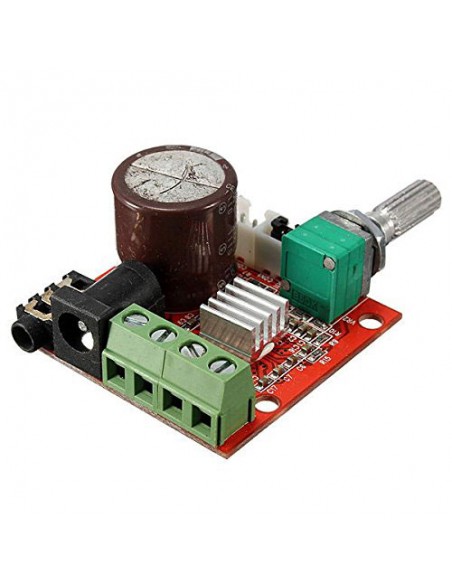

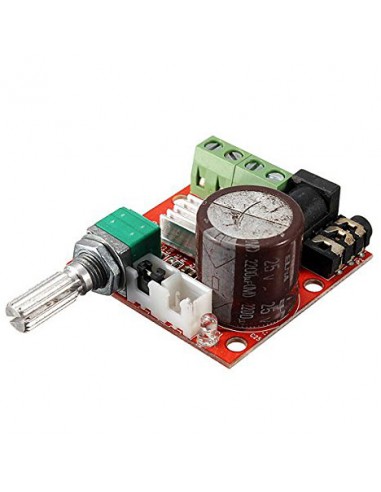

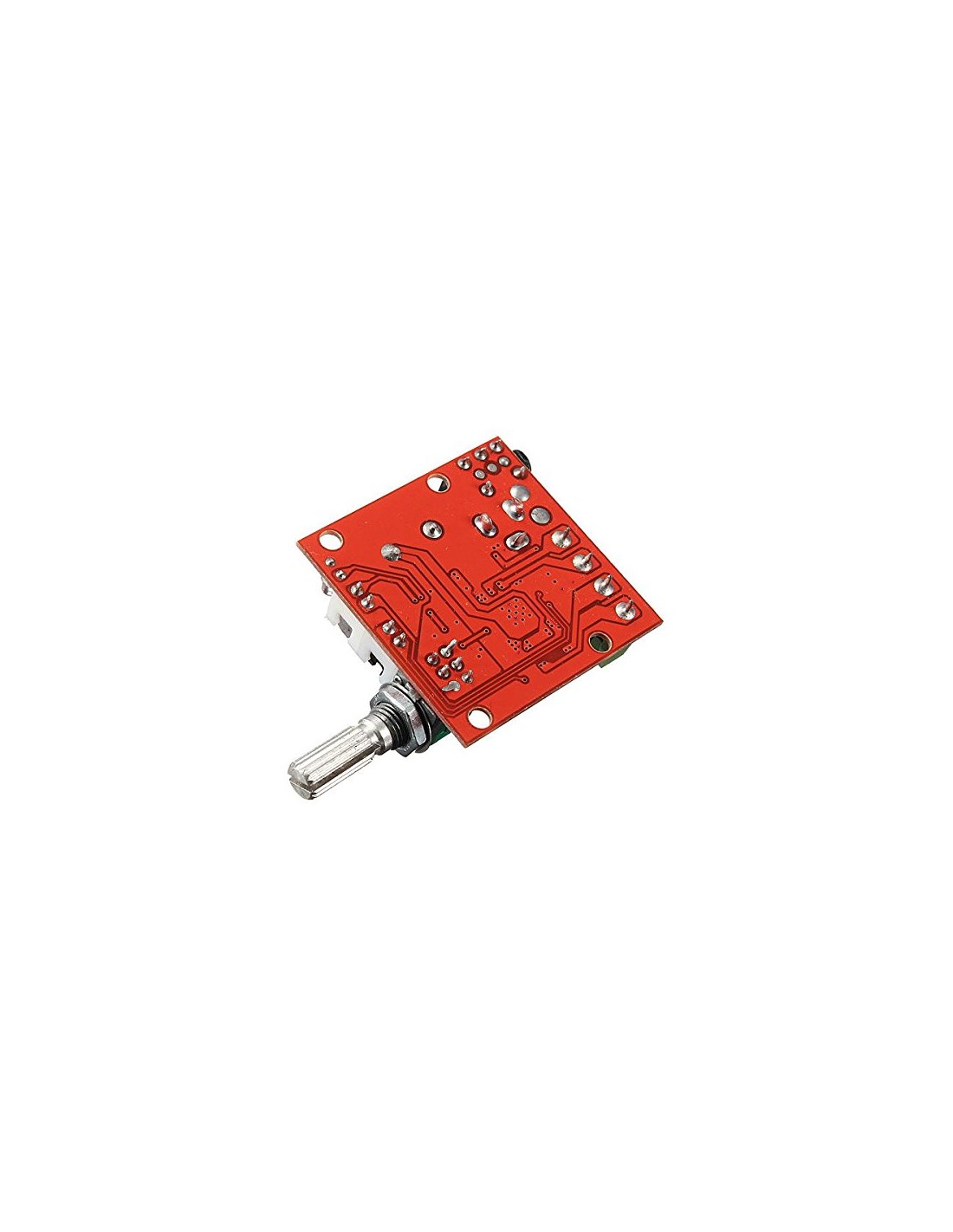

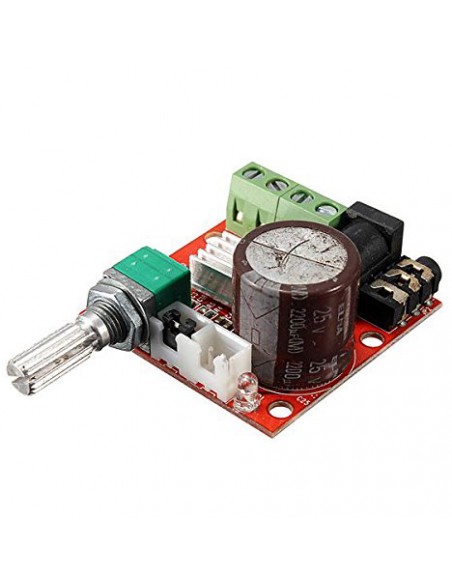

2x10W Dual Channel HIFI Mini Audio Amplifier PAM8610

Product Description

With the original PAM8610 chip, PAM8610 chip is 10W (each channel) D-level stereo audio amplifier.

• High-quality voice reproduction, low THD + N (0.1%) No filter. At 10V power supply with 8Ω load has 10% THD of 10W.
• Good PSRR, ultra-low noise output -90dB
• New type direct output drive speaker without needing low-pass filter.
• Low quiescent current, low EMI. Low power consumption, heat.
• With off / mute noise cancellation function.
• High efficiency of 90%, , operating voltage 7-13.5V, low THD + N, and low quiescent current,
• With over-current / temperature / short circuit protection

Specification:

• Work mode: high efficience D class
• Quiescent Current: 20mA
• Working efficiency: 90%
• Rated output power: 10W + 10W (8Ω)
• Frequency response: 20Hz to 50KHz
• Operating voltage: DC7.5-15V
• Recommended supply voltage: 12V
• PCB board size: (40 * 40) mm
• Weight One 24g

Board include mute, sound volume, L R channel output, audio jack input, features.

Note: This amplifier board must first connect the speaker, then the other! . Otherwise it will burn out!
