ON-ON Mini Toggle Switch

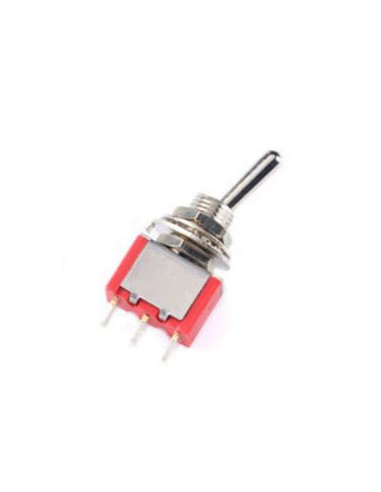

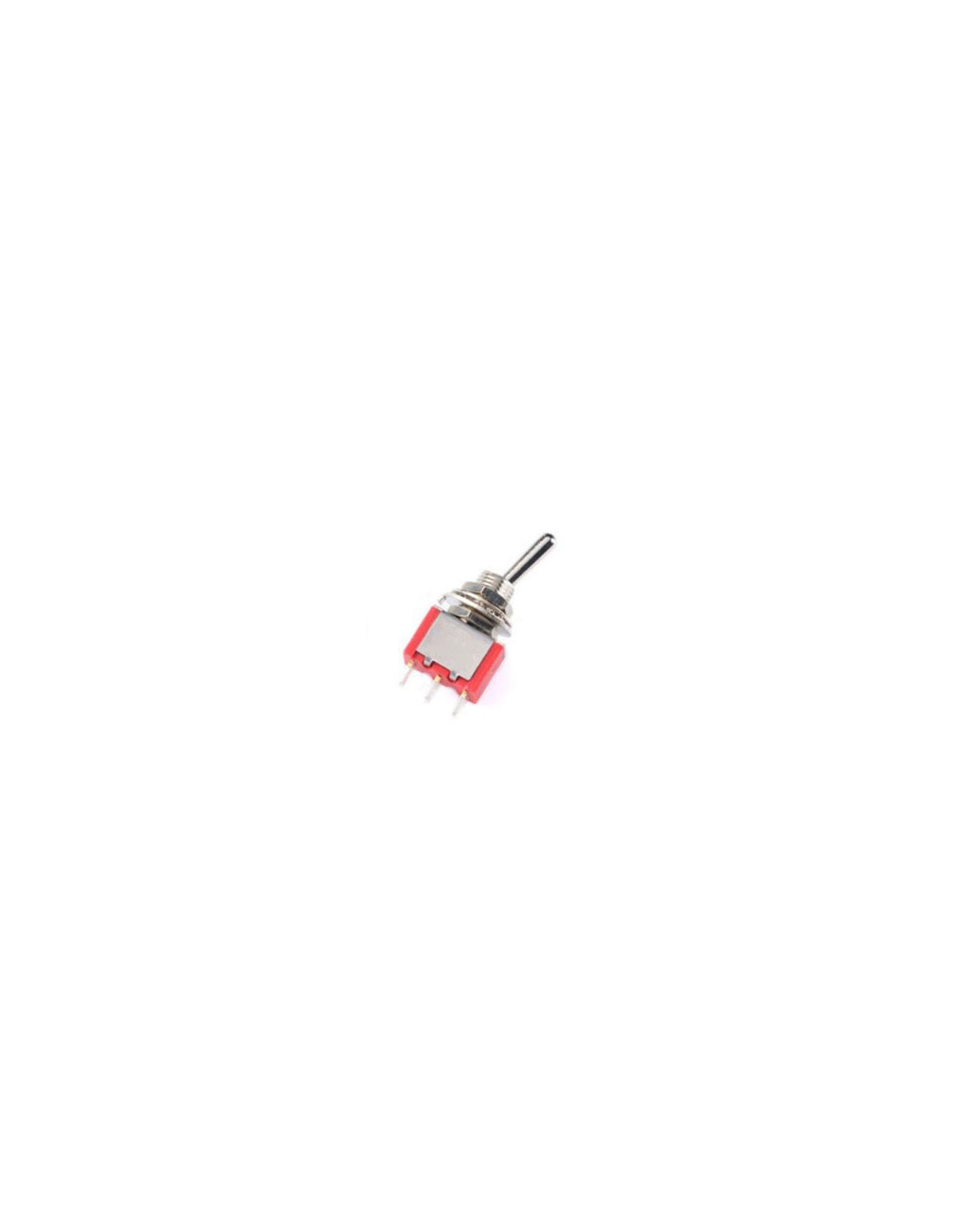

MTS-112 ON-ON Mini Toggle Switch (Red) – DPDT, 2 Position, Self-Resetting

The MTS-112 ON-ON Mini Toggle Switch is a compact and reliable switch designed for electronics, DIY projects, and professional applications. Featuring a durable metal toggle and red actuator, this switch provides precise control in circuits where two stable ON positions are needed. Its self-resetting mechanism ensures long-lasting performance and reliability.

Key Features:

• Switch Type: ON-(ON) Double Pole Double Throw (DPDT)

• Positions: 2-position (momentary ON-ON action)

• Pins: 3-pin (easy PCB or solder connection)

• Actuator: 6mm toggle lever with red cap

• Mounting Hole Size: 6mm (fits standard panel cut-outs)

Technical Specifications:

• Model: MTS-112

• Rated Current & Voltage:

  • 6A at 125V AC

  • 3A at 250V AC

• Contact Resistance: ≤ 20mΩ

• Insulation Resistance: ≥ 100MΩ at 500V DC

• Dielectric Strength: 1500V AC for 1 minute

• Mechanical Life: Over 30,000 cycles

• Operating Temperature: -25°C to +85°C

Applications:

• Electronic circuits and control panels

• DIY electronics and robotics projects

• Audio and video equipment

• Industrial machines and test equipment

This miniature ON-ON toggle switch is ideal for anyone needing a reliable, easy-to-install solution for switching between two circuits. Its small size, robust design, and dependable electrical ratings make it perfect for both hobbyists and professionals.
