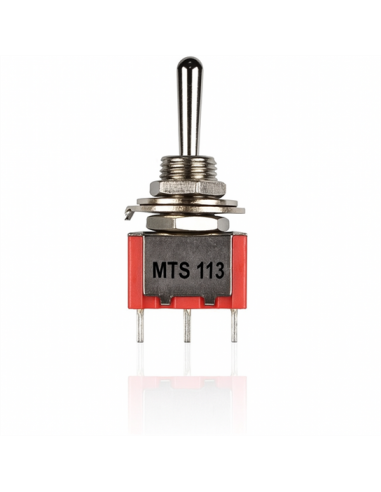

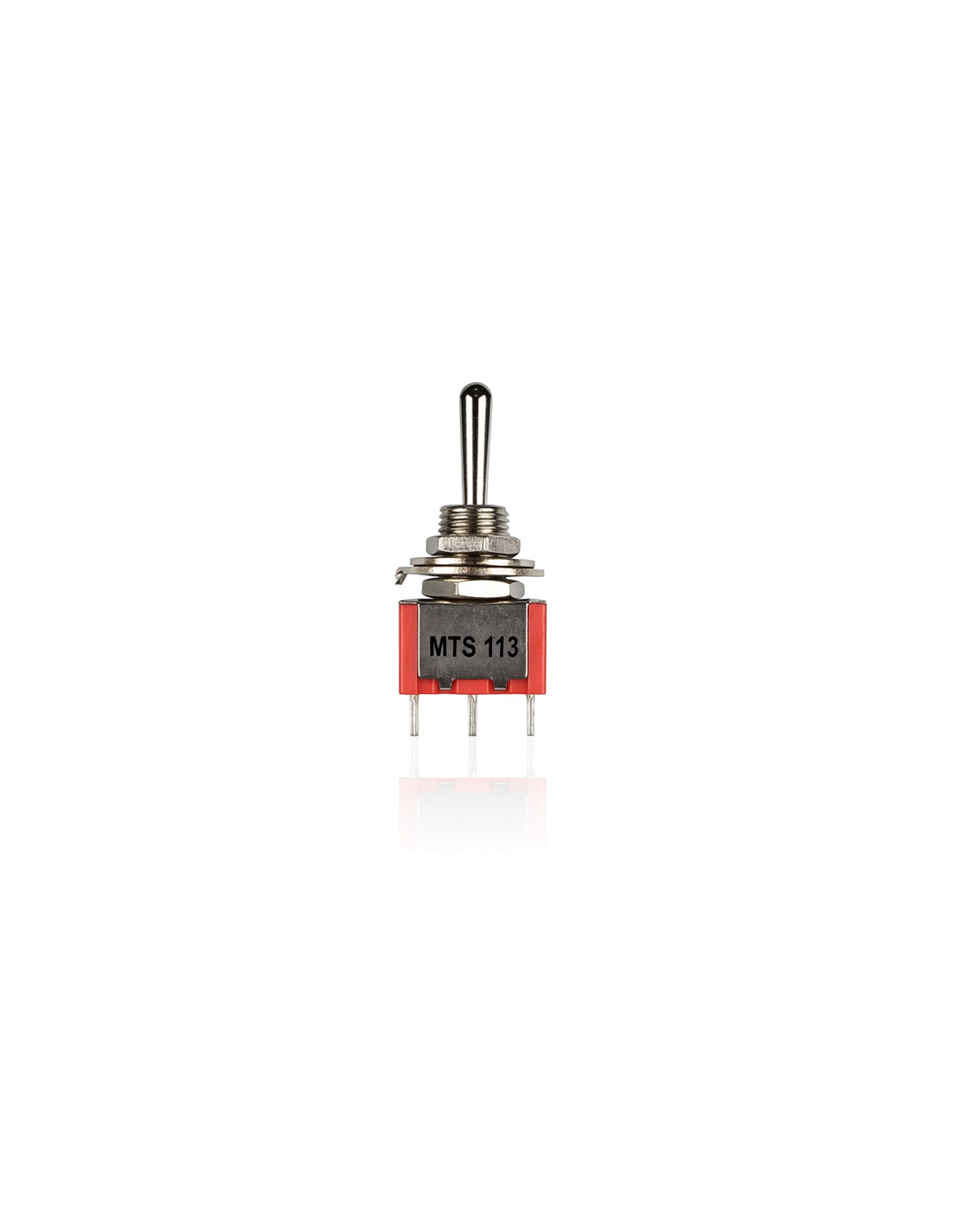

ON-OFF-(ON) Red Mini 3-Pin Toggle Switch

The MTS-113 ON-OFF-(ON) Mini Toggle Switch is a compact, durable, and reliable electrical switch designed for versatile control applications. Featuring a self-resetting (momentary ON) function, this switch is ideal for circuits that require a temporary connection — such as signal triggering, motor direction control, or equipment testing. The red lever handle provides clear visual feedback and easy manual operation.

Engineered for 6 A at 125 V AC or 3 A at 250 V AC, the MTS-113 delivers consistent performance and long mechanical life in compact devices, DIY electronics, and industrial control panels.

Key Features

• Switch Type: ON-OFF-(ON) (Momentary ON)

• Contact Configuration: SPDT (Single Pole Double Throw)

• Operation: Maintained ON-OFF with spring-loaded momentary ON position

• Mounting Hole Diameter: 6 mm

• Pins: 3 Pins (Solder Lug Terminals)

• Handle Color: Red

• Body Material: Nickel-plated brass housing for corrosion resistance

• Actuator Type: Toggle lever with positive tactile feedback

• Function: Self-resetting momentary switch returns automatically to center position

• Current Rating: 6 A @ 125 V AC / 3 A @ 250 V AC

• Contact Resistance: ≤ 20 mΩ (initial)

• Insulation Resistance: ≥ 1000 MΩ at 500 V DC

• Dielectric Strength: 1500 V AC / 1 min

• Mechanical Life: ≥ 40,000 cycles

• Operating Temperature: −25 °C to +85 °C

Applications

• Power control for small electronic devices

• Robotics and mechatronics projects

• Automotive dashboard or auxiliary lighting controls

• Industrial test benches and lab instruments

• DIY electronics and prototyping
