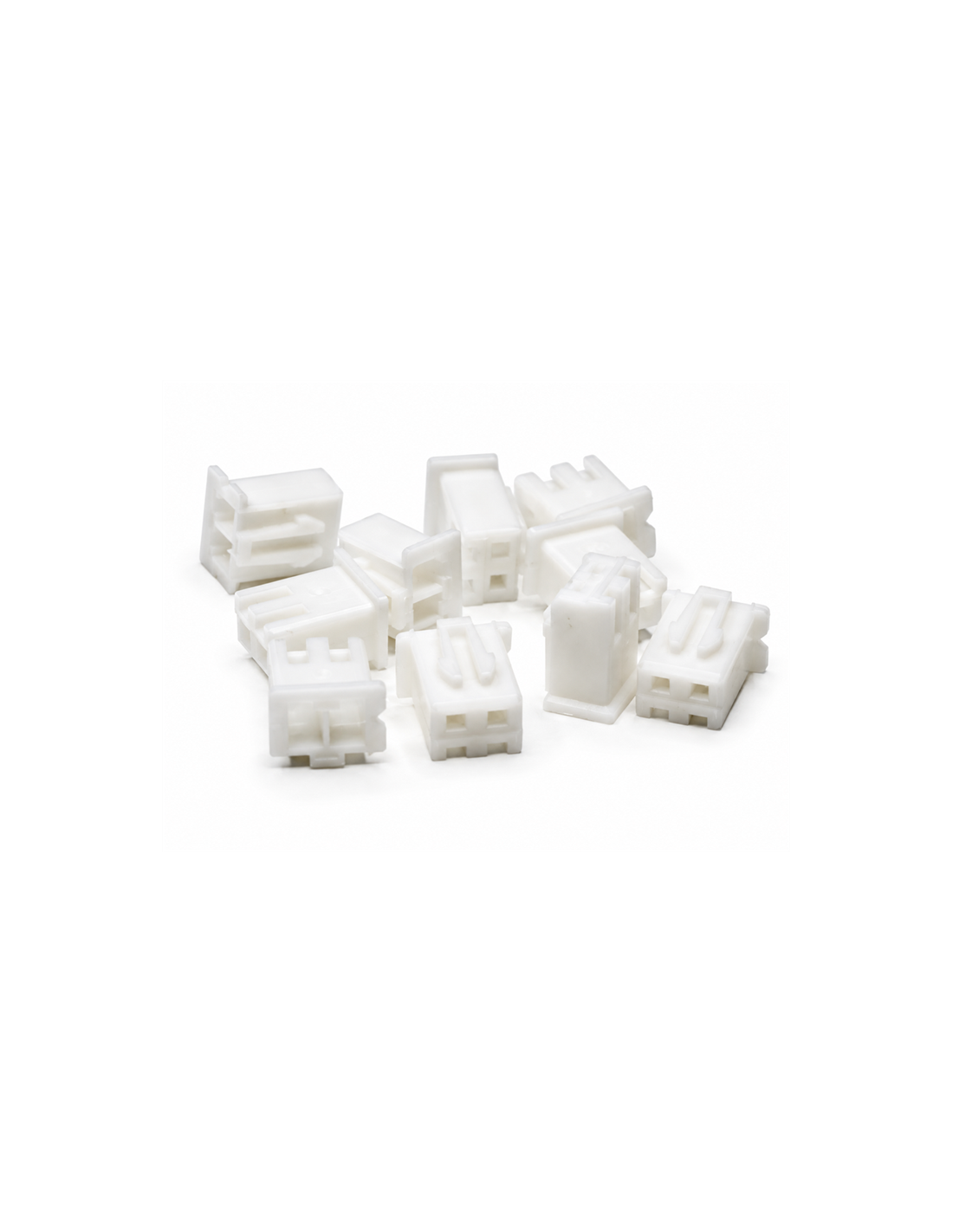

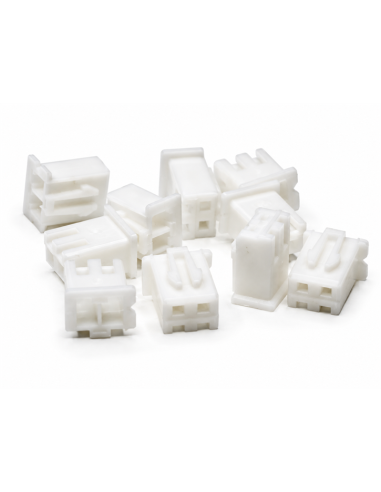

XH2.54 2P Female Connectors – 2.54mm Pitch – 10 Pack

XH2.54 2-Pin Female Connector Housings – 2.54mm Pitch Wire-to-Board Connectors for PCB, Arduino, ESP32 and DIY Electronics

The XH2.54 2P Female Connectors (10 Pack) are compact, lightweight connector housings designed for creating reliable, detachable electrical connections in electronic circuits, printed circuit boards (PCBs) and custom wiring projects.

Featuring a 2.54mm pin pitch and 2-pin configuration, these female connector housings are designed to accommodate compatible crimp terminals and mate with matching XH2.54 2-pin male PCB headers.

Manufactured from insulating white plastic, the connectors feature a keyed housing design that helps guide the mating connector into position. Their compact size makes them ideal for low-voltage electronics, power connections, sensor wiring and custom PCB assemblies.

Whether you're developing Arduino and ESP32 projects, repairing electronic equipment, assembling custom wiring harnesses or building DIY electronic circuits, these XH2.54 2-pin female connector housings offer a convenient and cost-effective connection solution.

Supplied in a pack of 10, they are suitable for electronics hobbyists, technicians, engineers and manufacturers.

Key Features

• 10 Pack: Includes 10 individual XH2.54 2-pin female connector housings.

• 2-Pin Configuration: Provides two positions for electrical connections, such as positive and negative power or signal and ground.

• 2.54mm Pin Pitch: Standard 2.54mm (0.1-inch) spacing between connector positions.

• Female Connector Housing: Designed to mate with compatible XH2.54 2-pin male PCB headers.

• White Insulating Plastic: Lightweight housing that keeps electrical contacts separated.

• Keyed Connector Design: Helps ensure correct alignment with compatible mating connectors.

• Crimp Terminal Compatibility: Accepts suitable XH-series female crimp terminals for wire termination.

• Detachable Connections: Allows electronic components and wiring harnesses to be connected and disconnected without desoldering.

• Compact Design: Suitable for space-constrained electronic assemblies.

• Versatile Applications: Ideal for PCB assembly, electronic repairs, prototyping and custom wiring projects.

Technical Specifications

• Product Name: XH2.54 2P Female Connector

• Connector Series: XH2.54 Compatible

• Connector Type: Female Wire Housing

• Number of Positions: 2

• Pin Pitch: 2.54mm (0.1 inch)

• Connection Type: Wire-to-Board

• Mounting Type: Cable / Wire Mount

• Housing Colour: White

• Housing Material: Insulating Plastic

• Terminal Type: Compatible Female Crimp Contacts

• Mating Connector: XH2.54 2-Pin Male PCB Header

• Assembly Method: Crimp terminals inserted into connector housing

• Quantity: 10 Pieces

Applications

These XH2.54 2-pin female connectors are suitable for a wide range of electronics applications, including:

• Arduino Projects: Create detachable connections between Arduino-based circuits, custom PCBs and electronic components.

• ESP32 and ESP8266 Development: Connect compatible sensors, modules and power circuits.

• PCB Assembly: Build custom two-wire harnesses for printed circuit boards.

• Power Connections: Create positive and negative power connections in compatible low-voltage electronic circuits.

• LED Lighting Projects: Connect LED modules, controllers and compatible lighting accessories.

• Sensor Wiring: Connect electronic sensors and peripherals requiring two-wire connections.

• Robotics and Automation: Create organised wiring connections for control circuits and electronic modules.

• 3D Printer Electronics: Suitable for compatible control boards, sensors and accessories using XH2.54 connectors.

• Electronic Repairs: Replace damaged connector housings in compatible electronic equipment.

• DIY Electronics: Ideal for hobbyists and makers developing custom electronic projects.

Compatibility

These female connector housings are designed to mate with compatible XH2.54 2-pin male PCB headers featuring a 2.54mm pitch.

Common compatible applications include:

• XH2.54 2P male PCB connectors

• Compatible XH-series female crimp terminals

• Custom PCB assemblies

• Arduino and ESP32-based electronic projects

• Electronic control boards

• Low-voltage power distribution circuits

• Sensor and peripheral modules

• Robotics and automation equipment

• Compatible 3D printer electronic components

• Custom two-wire wiring harnesses

Important Compatibility Note: Although these connectors feature a 2.54mm pitch, they are not necessarily interchangeable with all other 2.54mm connector series. Always verify the connector profile, number of positions, locking mechanism and mating compatibility before installation.

Installation

To assemble a two-wire harness using these connectors:

1. Strip a small section of insulation from the ends of the wires.

2. Crimp compatible XH-series female terminals onto the wires using a suitable crimping tool.

3. Insert the crimped terminals into the connector housing until securely seated.

4. Check that both terminals are correctly positioned and retained.

5. Connect the completed female housing to a compatible XH2.54 2-pin male header.

Package Includes

• 10 × XH2.54 2-Pin Female Connector Housings – 2.54mm Pitch

Please Note: These are female plastic connector housings only. Crimp terminals, wires and mating male PCB headers are not included.

The XH2.54 2P Female Connector 10 Pack provides a practical, affordable and space-saving solution for creating detachable wire-to-board connections in electronics prototyping, PCB assembly, repairs and custom electronic projects.

Pins sold separately. Click here
