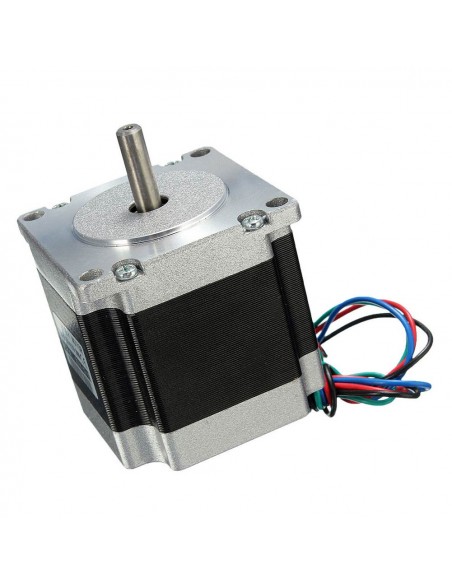

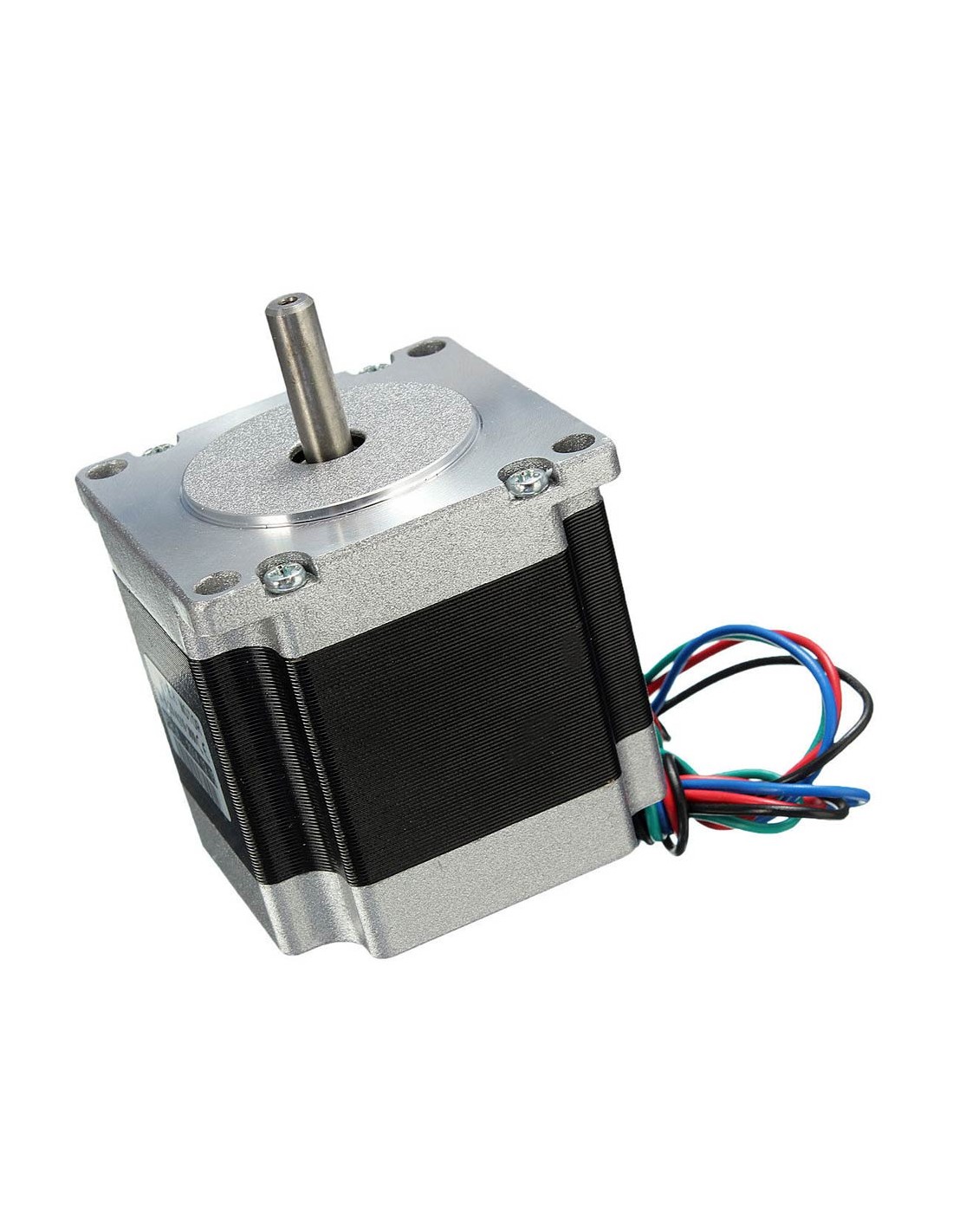

NEMA23 56mm 8mm Stepper Motor
NEMA23 56mm 8mm Stepper Motor

NEMA23 56mm 8mm Stepper Motor

3DP-00240
Out-of-Stock
R1,130.35
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

The NEMA23 56mm 8mm Stepper Motor - the perfect power-packed solution for your Ultimaker extruder, Reprap, Makerbot, and various other 3D printers and CNC machines. With its exceptional performance and robust construction, this stepper motor is designed to elevate your projects to new heights.

Featuring a 2 Phase Bipolar configuration with 4 lead wires, this stepper motor ensures precise and reliable motion control. Its rated voltage of 24V, combined with a rated current of 3A, delivers optimal power to tackle demanding tasks with ease. Whether you're engaged in rapid prototyping or intricate CNC machining, this motor provides the necessary strength and stability to achieve outstanding results.

Equipped with a holding torque of 1.3N.m, the NEMA23 56mm 8mm Stepper Motor offers impressive holding power to keep your extruder or CNC tool firmly in place. Say goodbye to slippage or loss of positioning, as this motor guarantees precise and accurate movements, ensuring the highest quality output every time.

With its 1.8-degree step angle, this stepper motor allows for fine-grained control and smooth operation, resulting in exceptional detail and precision in your prints or machined parts. Whether you're working on intricate designs or complex geometries, this motor's precise movements will bring your vision to life.

Measuring 56mm in depth and featuring an 8mm round shaft diameter, this motor is designed for easy integration into various 3D printers and CNC machines. Its compact and versatile design ensures compatibility with popular models such as Ultimaker, Reprap, Makerbot, and more. Upgrade your existing setup or build a custom machine - the NEMA23 56mm 8mm Stepper Motor will fit right in, providing you with enhanced performance and reliability.

Don't compromise on quality or precision. Choose the NEMA23 56mm 8mm Stepper Motor for your extruder or CNC machine and experience unparalleled control and accuracy. Elevate your 3D printing and CNC projects to the next level with this exceptional stepper motor.

Specifications:
Motor Type: NEMA23
Configuration: 2 Phase Bipolar
Lead Wires: 4
Rated Voltage: 24V
Rated Current: 3A
Holding Torque: 1.3N.m
Step Angle: 1.8°

Additional Specifications:
Motor Type: Hybrid Stepper Motor
Frame Size: NEMA23 (56mm)
Motor Length: 56mm
Phase: 2
Configuration: Bipolar
Step Angle: 1.8 degrees
Holding Torque: 1.3N.m
Rated Voltage: 24V
Rated Current: 3A
Resistance per Phase: 1.2Ω
Inductance per Phase: 4mH
Detent Torque: 0.22N.cm
Rotor Inertia: 300g.cm²
Mass: 1.1kg

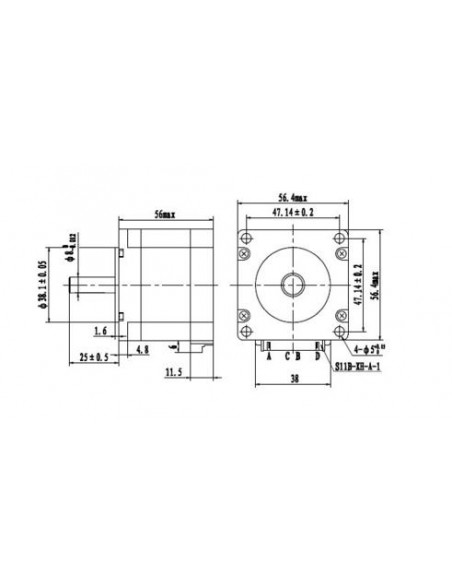

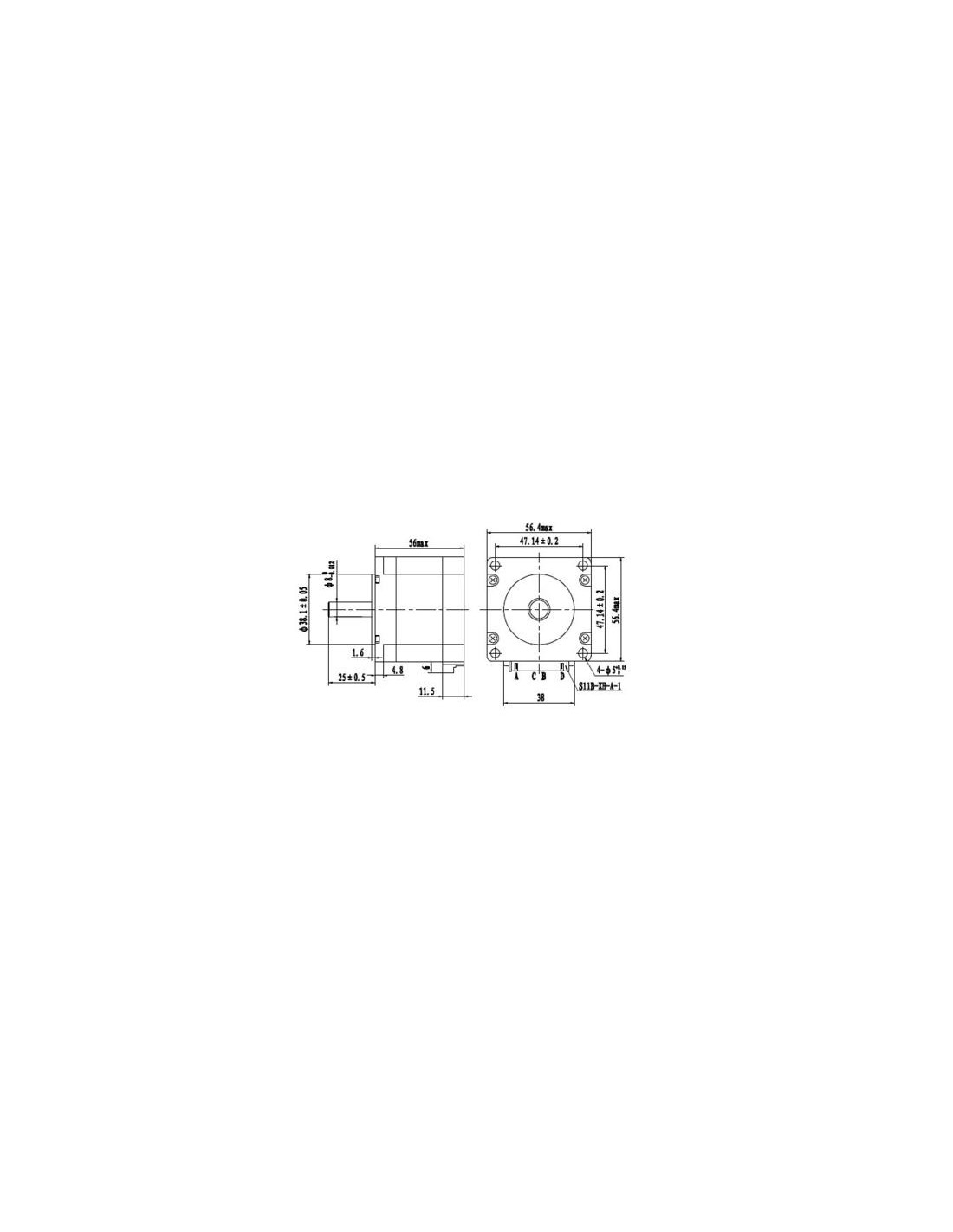

Dimensions:
Shaft Diameter: 8mm
Shaft Length: Variable (depends on specific model)
Motor Depth: 56mm
Motor Width: 56mm
Mounting Hole Size: M3
Mounting Hole Spacing: 42mm x 42mm (center to center)
Weight: 1.1kg

Compatibility:
Suitable for Ultimaker extruders
Compatible with Reprap and Makerbot 3D printers
Ideal for various CNC machines
