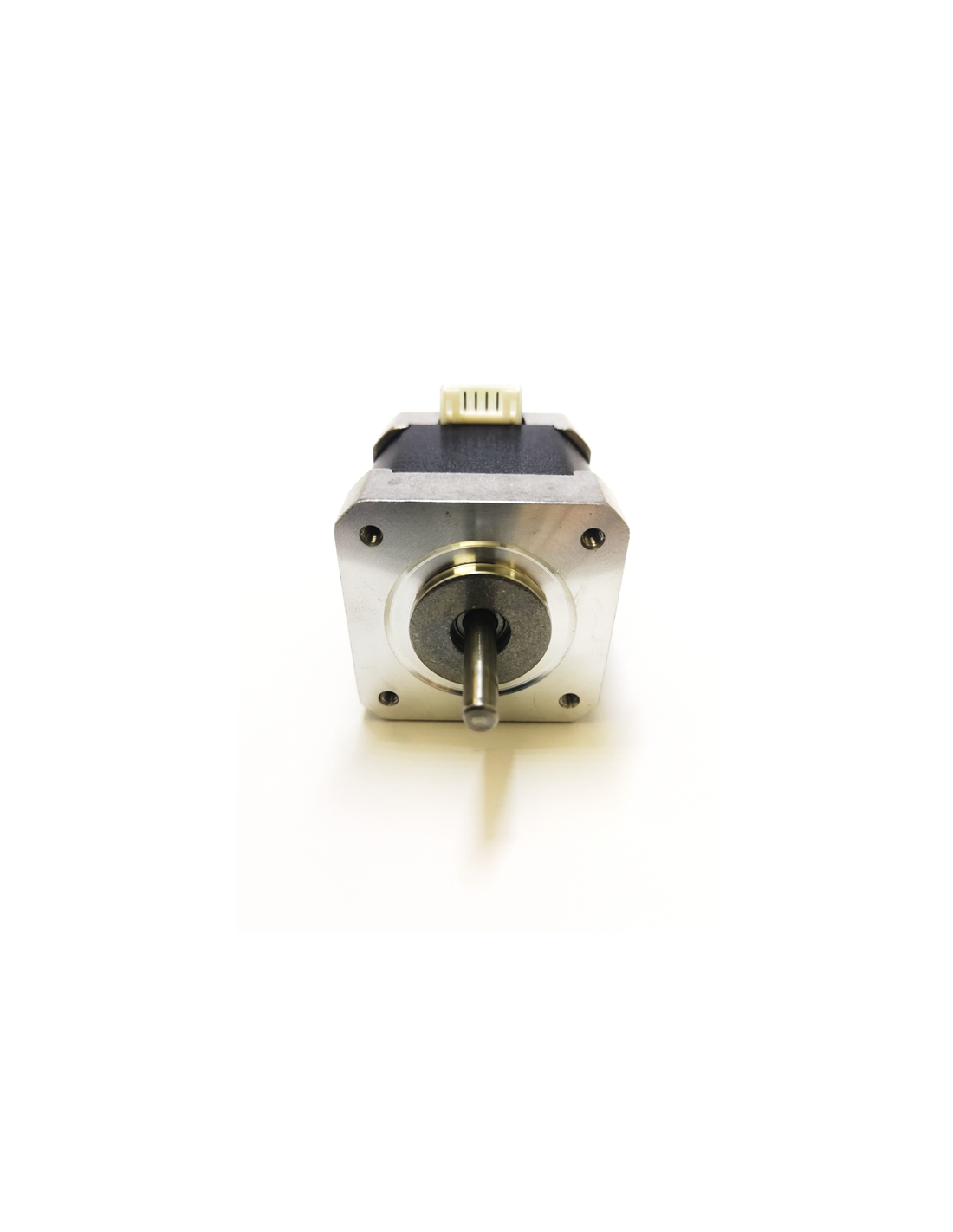

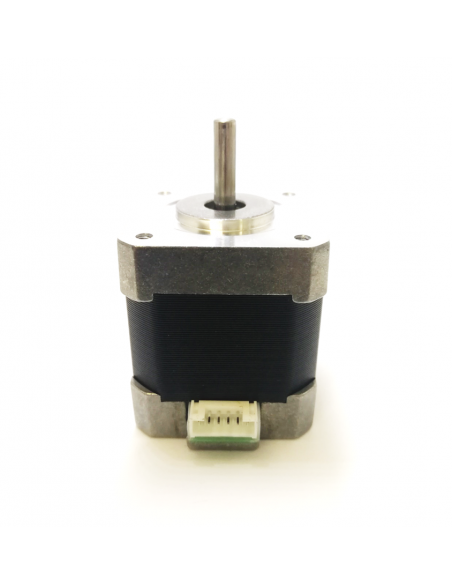

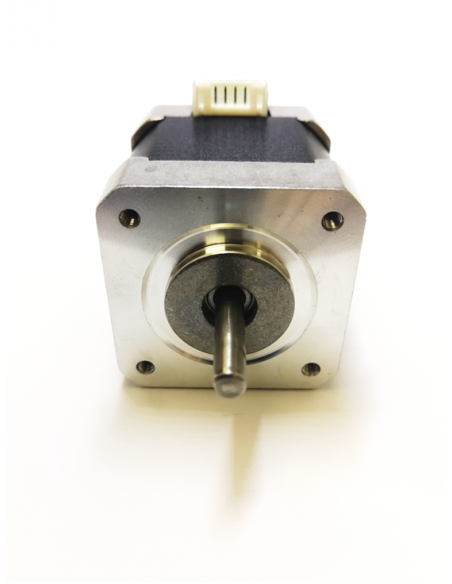

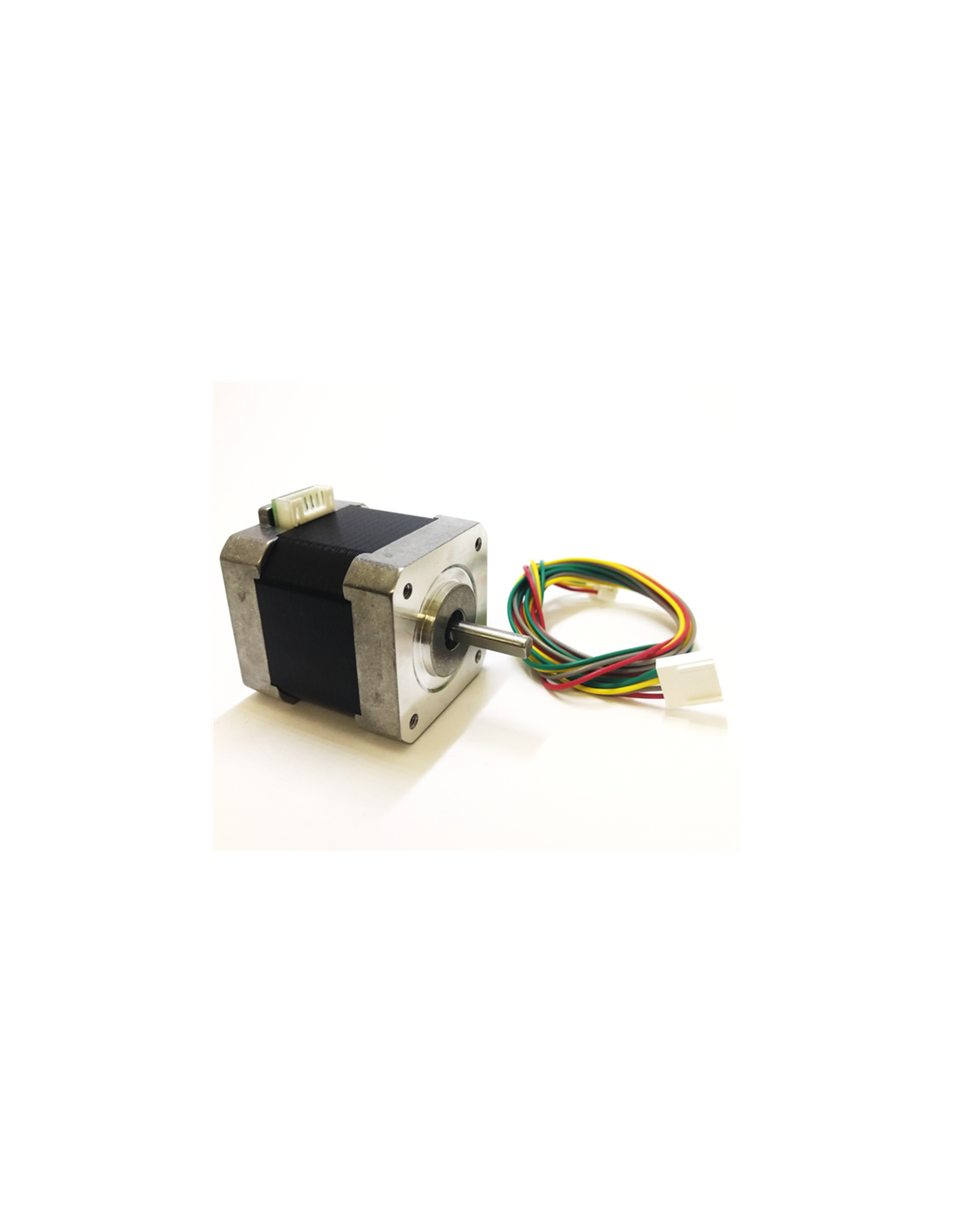

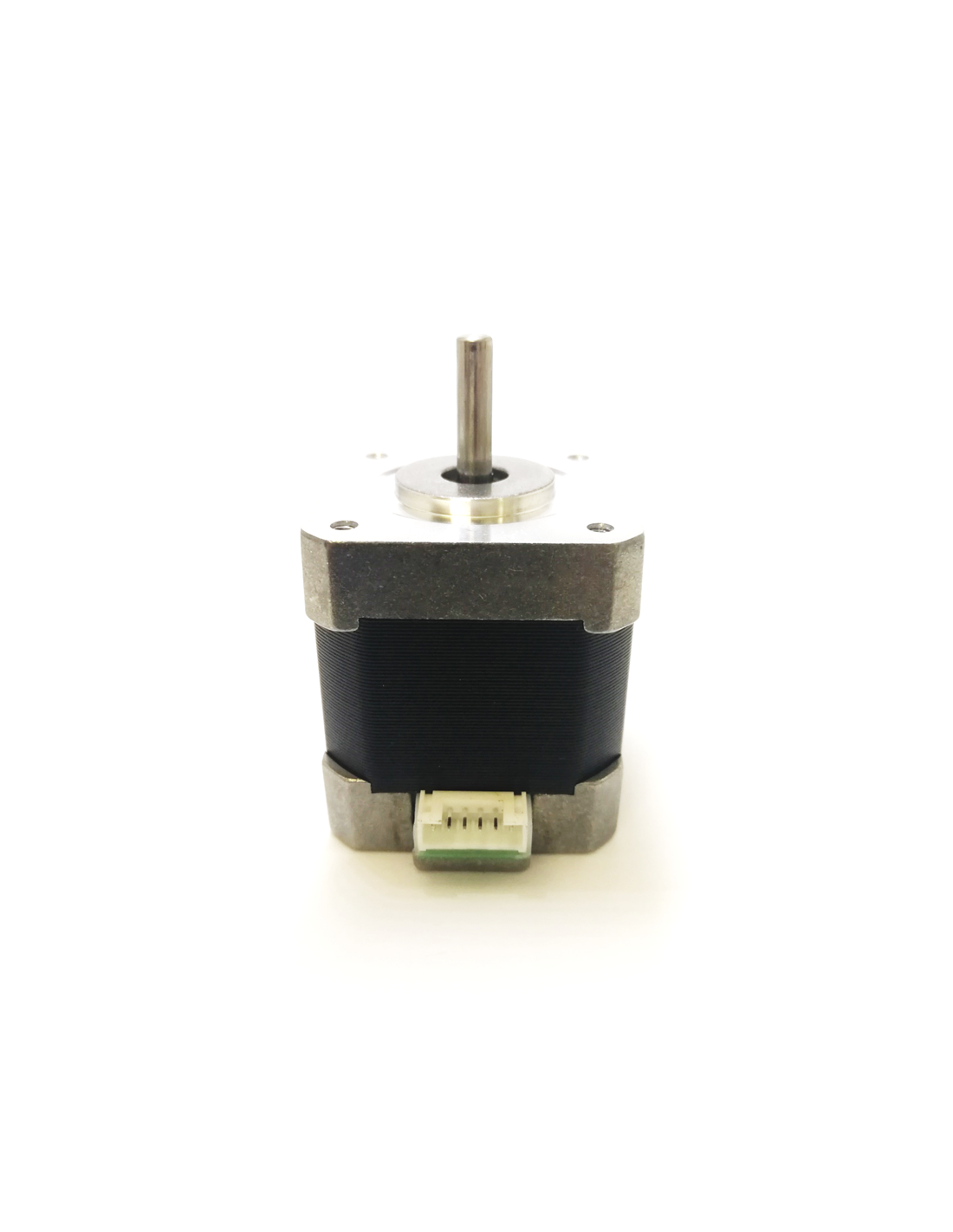

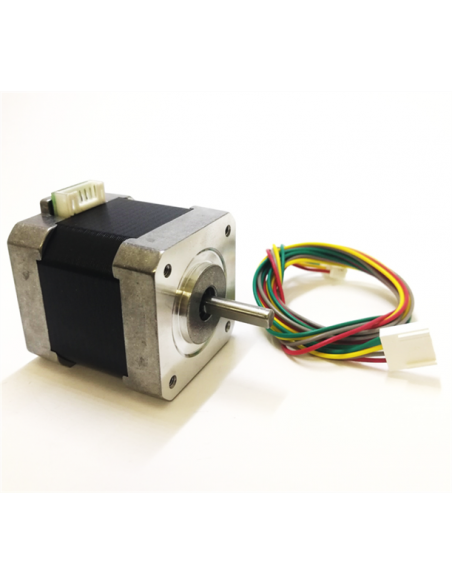

NEMA17 48mm Stepper 1.8 deg Motor .44 Nm
NEMA17 48mm Stepper 1.8 deg Motor .44 Nm
NEMA17 48mm Stepper 1.8 deg Motor .44 Nm
NEMA17 48mm Stepper 1.8 deg Motor .44 Nm

NEMA17 48mm Stepper 1.8 deg Motor .44 Nm

NEMA17 48mm Stepper 1.8 deg Moto(200 steps per revolution)
3DP-00237
Out-of-Stock
R360.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Round Shaft for Ultimaker Extruder. Reprap, Makerbot and more 3D Printers

Specifications:
  • 200 steps per revolution (1.8 deg/step)
  • 2 Phase Bipolar 4 lead wire
  • Rated Voltage 3.36V
  • Rated Current 1.68A
  • Phase Resistance: 1.65Ω± 10% (20º C)
  • Phase inductance: 3.8mH ± 20% (1kHz 1 V rms)
  • Holding torque: 0.44Nm (62 oz.in)

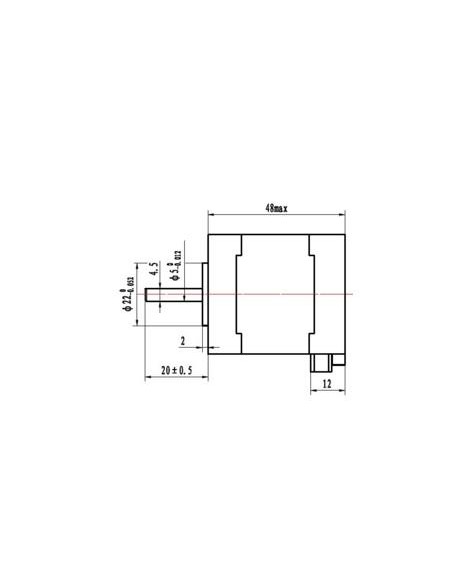

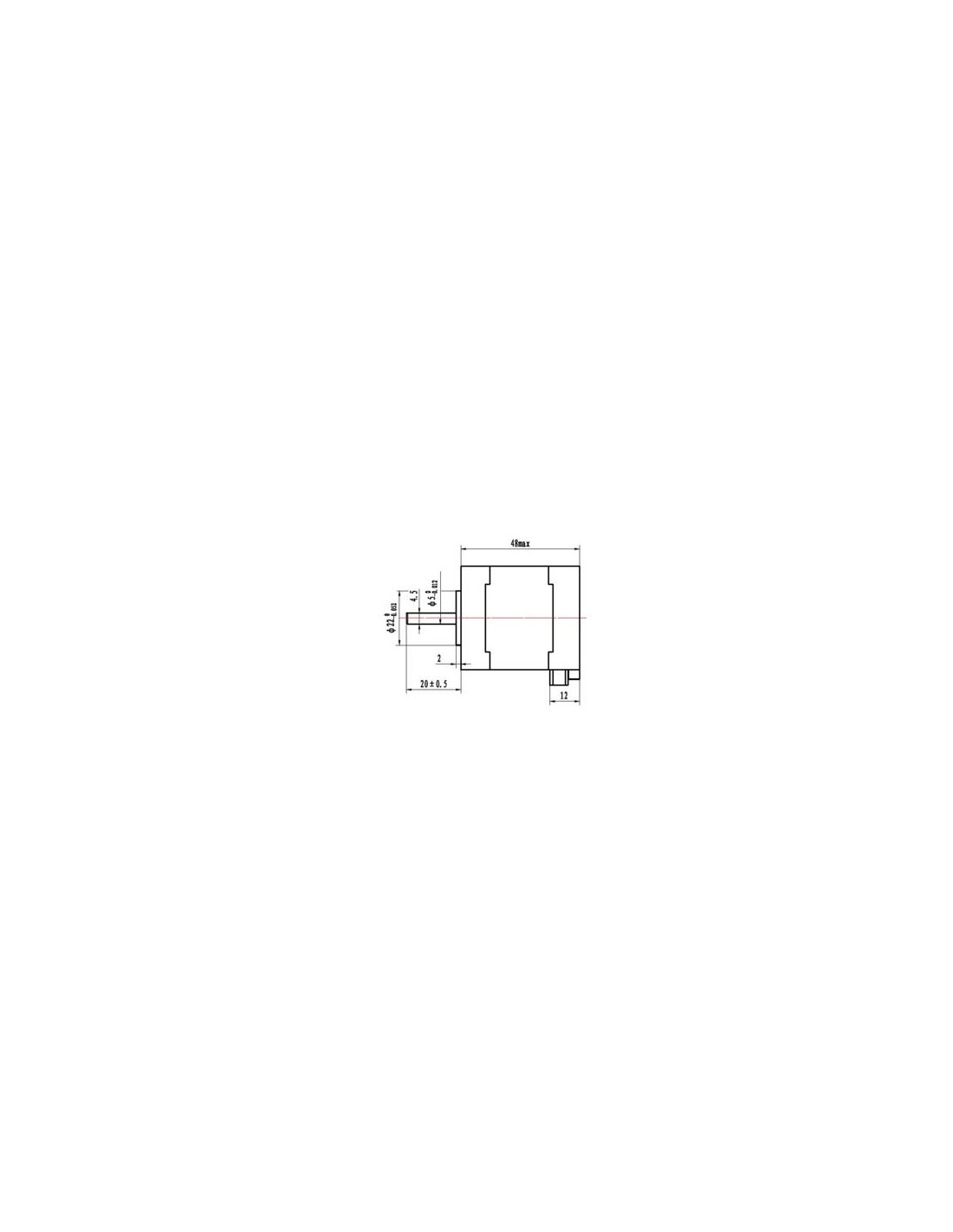

Dimensions:

  • Shaft diameter: 5mm 0.188" (3/16")
  • Motor depth: 48mm
