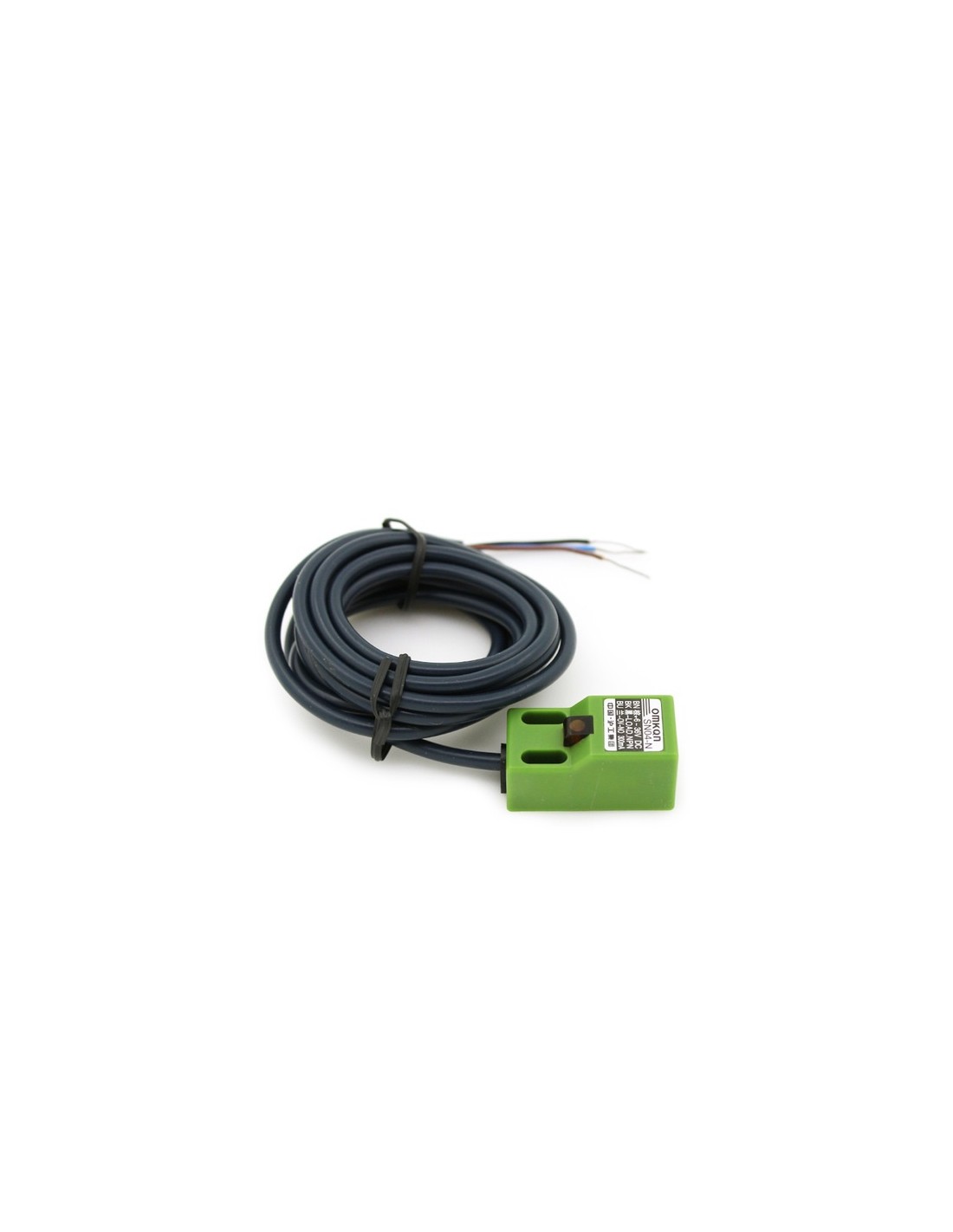

SN04-N Inductive Proximity Sensor/Switch
SN04-N Inductive Proximity Sensor/Switch

SN04-N Inductive Proximity Sensor/Switch

3DP-005121
In Stock
R77.20
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

This inductive proximity sensor will detect the prescence of a metallic object within 5mm of the surface of the sensor. The detection distance may vary slightly depending on the shape, size, and type of metal the object is made of. It can detect through thin, non-metallic materials and has an LED indicator that turns on when the device is powered, and increases in brightness when an object is detected.


Specifications:
Detecting Distance: Max 5 mm
Signal Voltage: 5V
Sensor Type: Proximity (Inductive)
Switch Type: Normally Open

Electrical Properties
Supply Voltage Min:6 V DC
Supply Voltage Max:36 V DC
Current Consumption:5ma MAX

Physical Properties
Cable Length 1 m
Material ABS Plastic
Operating Indicator: Red LED
IP Rating: IP67
Operating Temperature Min:-25 °C
Operating Temperature Max: 75 °C
