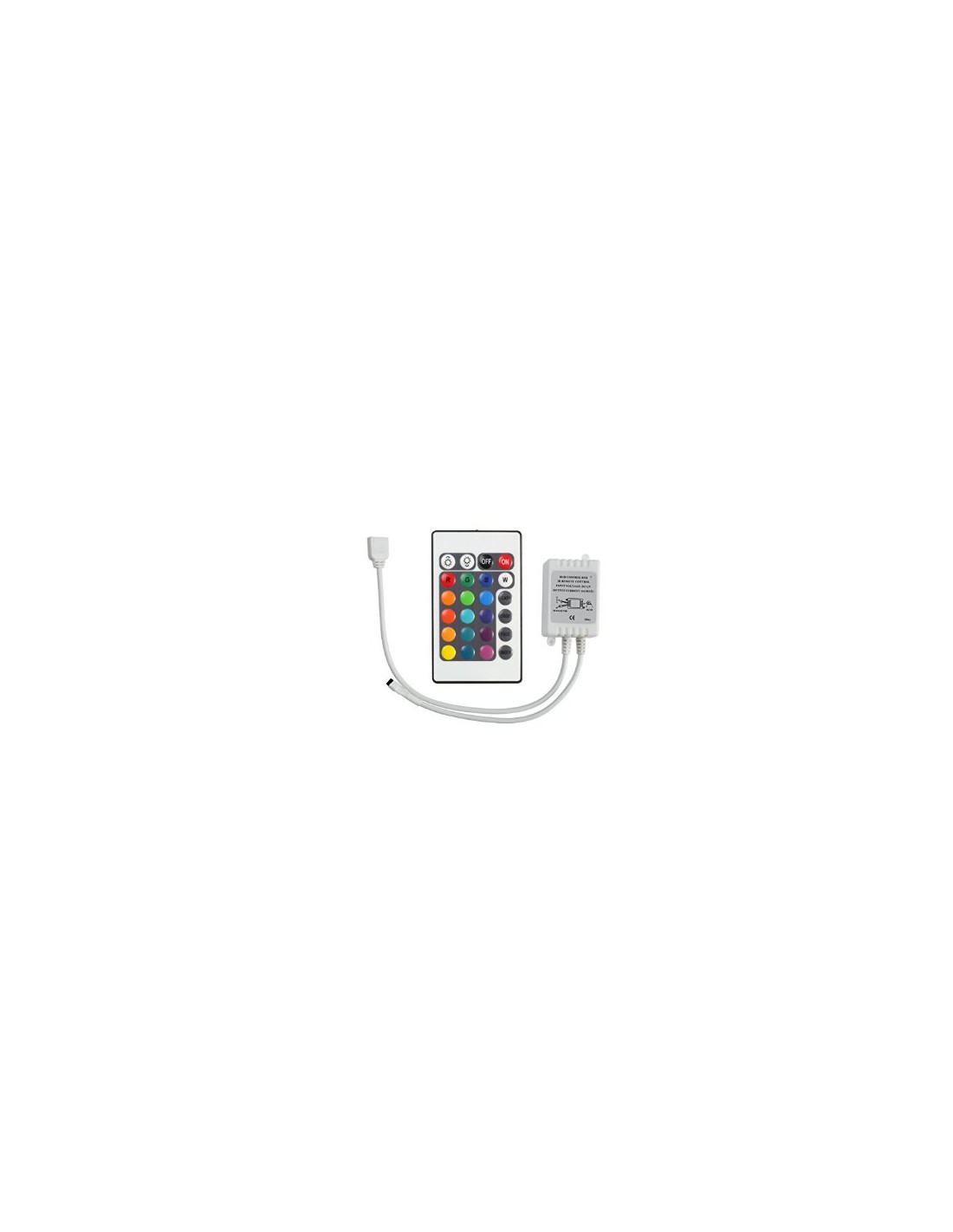

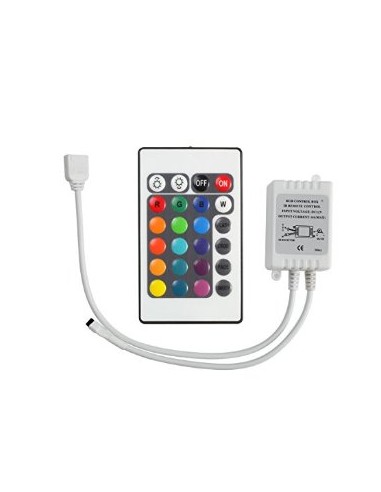

RGB/LED Controller with Remote

RGB/LED Controller with Remote

A 38Khz infrared remote control

WIR-00072
Last items in stock
R94.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

The use of advanced computer control chip, used to control a variety of led lamps as the light source such as: point light source, soft light strip, wall washer lamp, glass curtain wall light and so on; has the advantages of low price, easy wiring, simple to use; by infrared remote control to adjust brightness, static color choices and various dynamic changes in lighting effects.

Features:
  • 24-key infrared controller
  • Working temperature: -20-60 ℃
  • Supply voltage: 12V, 24V optional (default DC 12V, can also work with 24V, depends on the power supply of light stripe)
  • Output: 3 channels
  • Connection mode: common anode
  • Dimensions: L63ΧW35ΧH22 mm
  • Net weight: 50g
  • Static power consumption: <1W
  • Output current: <6A
  • Output power: 5V <30W, 12V <72W, 24V <144W
It can control up to:
  • 5050: 30 LEDs – 10 m
  • 5050: 60 LEDs  – 5 m
  • 3528: 60 LEDs – 10 m
  • 100 group of nine leds RGB module
PLEASE NOTE:
  • 12V Power Supply, you will need another DC power plug for this, please be aware of this.

*Can only power 1 LED Strip at a time.
