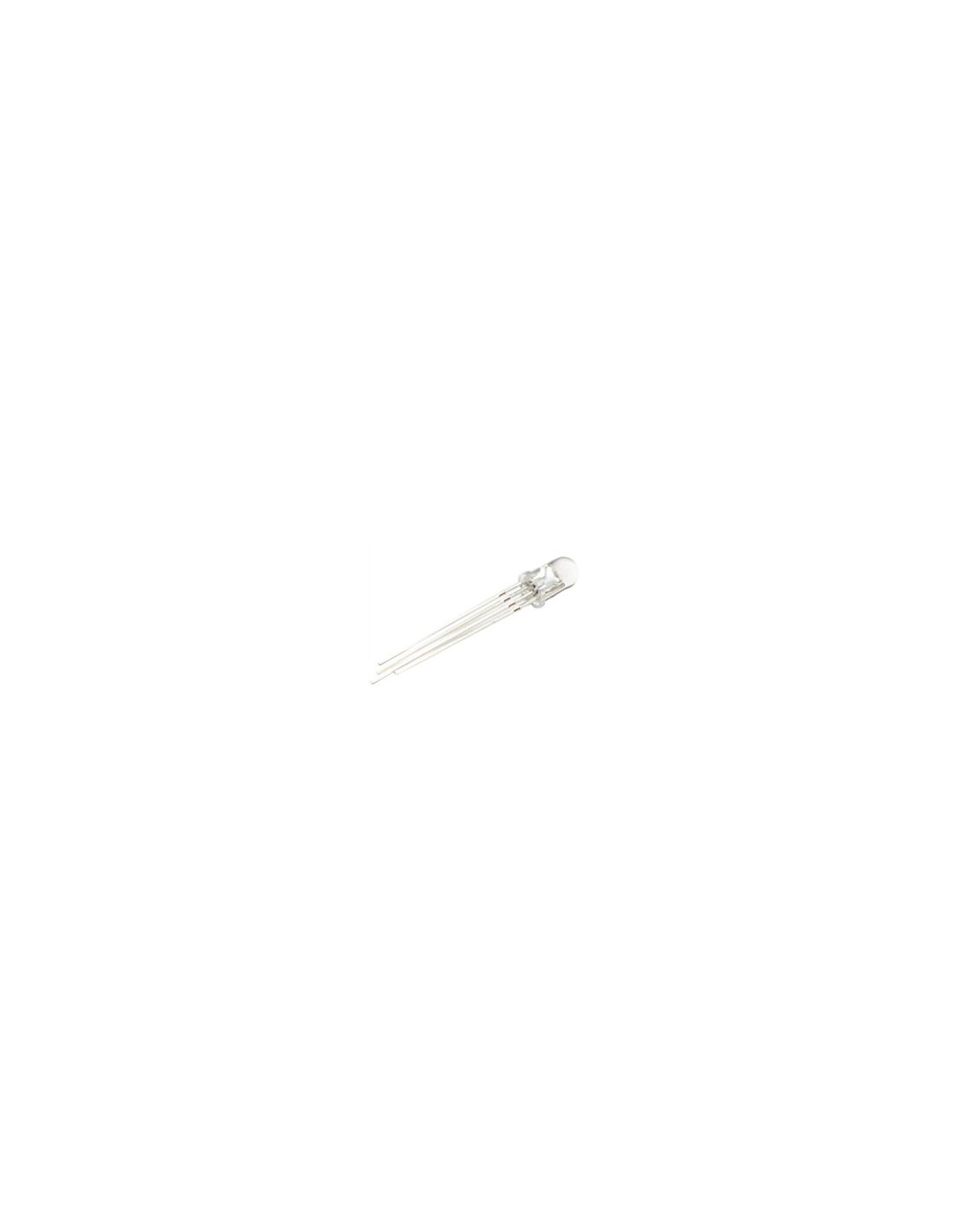

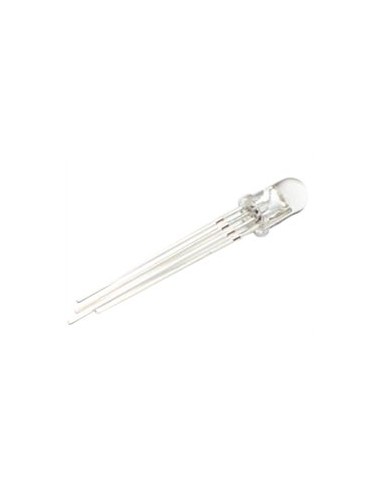

5mm LED RGB Anode-Common triple output - 3 pack
These 5mm units have four pins: one for each color and a common anode. Use this one LED for three status indicators or pulse width modulate all three and get mixed colors.
|
Chip Material |
Lens Type |
Emitting |
Forward Voltage(V) |
Dominant Wavelength(nm) |
Luminous Intensity(mcd) |
Reverse Current(uA) |
Viewing Angel(deg) |
|
InGaN |
Water Clear |
Red |
1.8/2.5 |
615/645 |
200/600 |
10 |
±60 |
|
InGaN |
Water Clear |
Green |
2.8/4.0 |
455/480 |
200/400 |
10 |
±60 |
|
InGaN |
Water Clear |
Blue |
2.8/4.0 |
500/540 |
300/800 |
10 |
±60 |
|
|
|
|
IF=20mA |
IF=20mA |
IF=20mA |
VR=5V |
IF=20mA |
