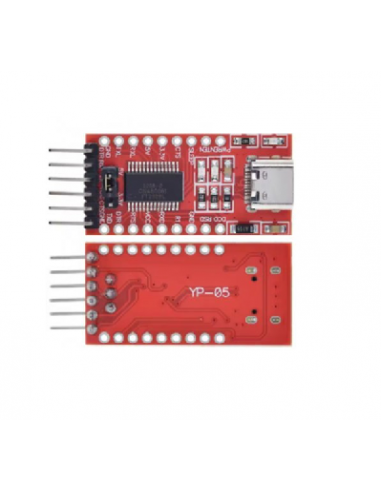

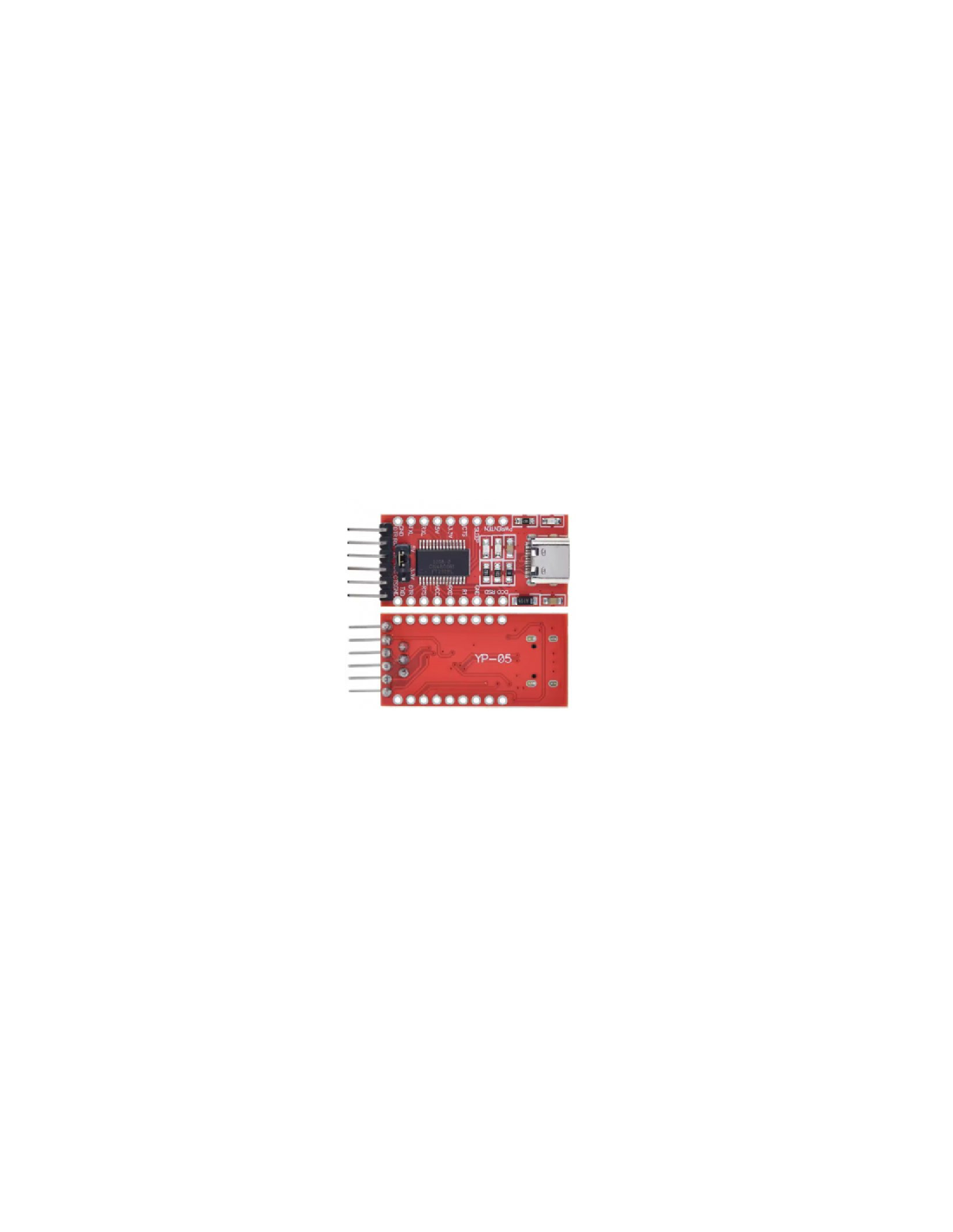

Type-C FT232 FTDI USB to TTL Serial Adapter Module (3.3V / 5V)

This Type-C FT232 FTDI USB to TTL Serial Adapter Module provides a reliable bridge between modern USB-C ports and TTL serial interfaces. Based on the high-performance FTDI FT232RL chipset, it supports communication at both 3.3V and 5V logic levels, making it versatile for use with a wide range of microcontrollers, development boards, and embedded systems.

Unlike generic adapters, the FT232 chipset ensures stable drivers, wide OS compatibility, and error-free data transmission — essential for programming, debugging, and serial communication projects.

Key Features

• FT232RL Chipset – Industry-standard FTDI solution for stable USB to UART/TTL communication.

• USB Type-C Connector – Modern reversible connector for convenience and reliability.

• Dual Voltage Support – Selectable 3.3V or 5V logic levels for compatibility with various microcontrollers.

• Multiple Signal Outputs – TXD, RXD, RTS, CTS, DTR, DSR, DCD, and RI pins available.

• Plug-and-Play – Compatible with Windows, macOS, and Linux with official FTDI drivers.

• Compact PCB Design – Breadboard-friendly size with clearly labeled pins.

Technical Specifications

• Chipset: FTDI FT232RL

• USB Connector: Type-C Female

• Input Voltage (from USB): 5V

• Logic Level Output: Selectable 3.3V / 5V

• I/O Pins: TXD, RXD, RTS, CTS, DTR, DSR, DCD, RI, VCC, GND

• Data Transfer Rates: Up to 3 Mbps

• Dimensions: Approx. 50 mm x 18 mm

• Driver Support: Windows, macOS, Linux (official FTDI drivers available)

Applications

• Programming and debugging Arduino, ESP32, ESP8266, STM32, and other MCUs

• USB-C to UART/serial communication for embedded systems

• Interfacing sensors, modules, or devices that use TTL serial

• Development, prototyping, and lab testing environments
