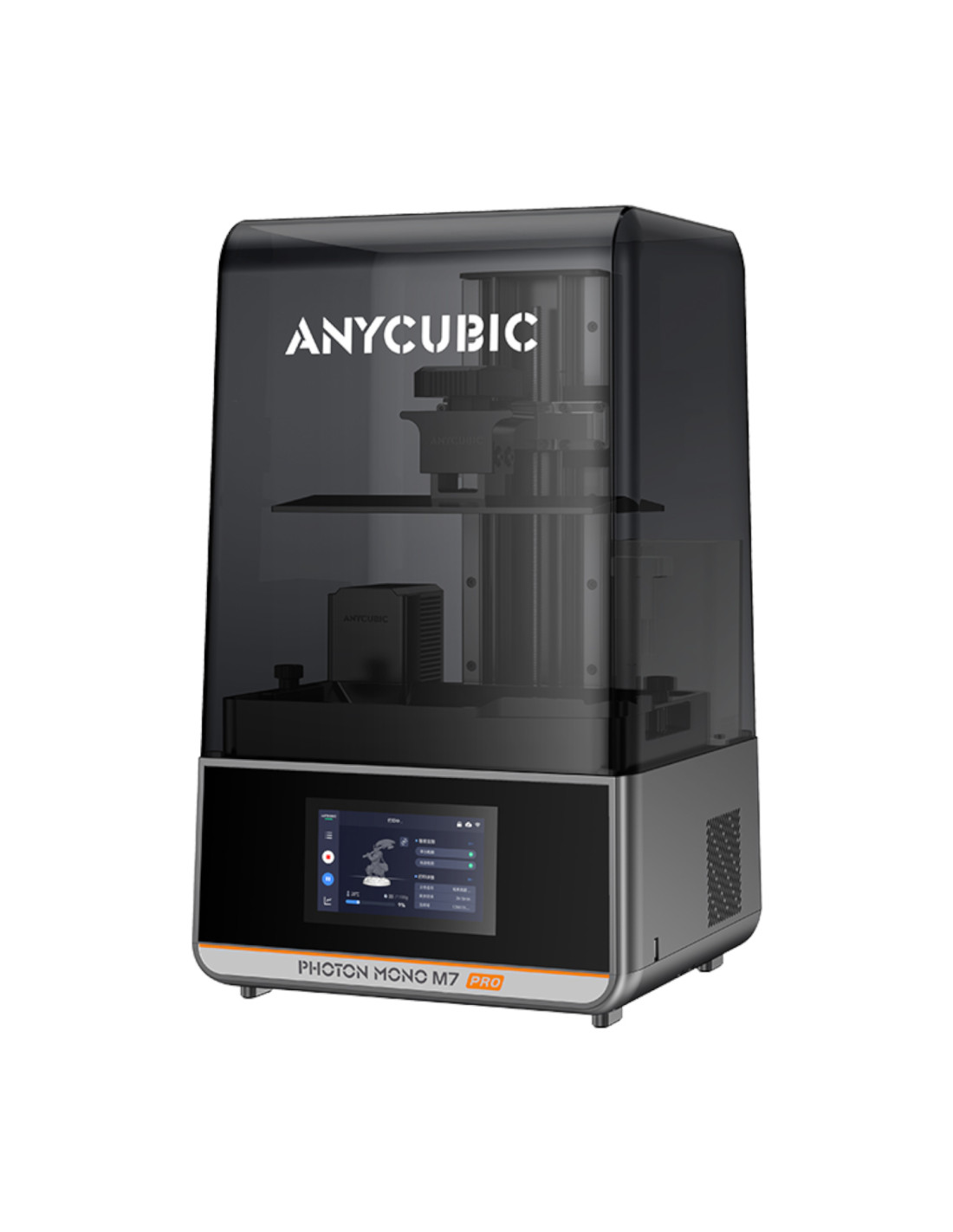

Anycubic Photon Mono M7 Pro 14K Resin 3D Printer

14K ultra-high-resolution resin printing | Up to 170mm/h high-speed printing | Dynamic resin temperature control | Automatic resin refill & withdrawal | Large 223 × 126 × 230mm build volume

The Anycubic Photon Mono M7 Pro 14K Resin 3D Printer combines exceptional print detail, high-speed performance and intelligent automation in a powerful desktop MSLA resin 3D printer. Designed for demanding hobbyists, miniature makers, designers and professional users, the Photon Mono M7 Pro delivers highly detailed resin prints while introducing features that make the printing process faster, easier and more reliable.

At the heart of the M7 Pro is a 10.1-inch 14K monochrome LCD with an impressive 13312 × 5120 resolution. With an XY pixel size of approximately 16.8 × 24.8μm, the printer can reproduce extremely fine textures, sharp edges and intricate surface details, making it ideal for miniatures, figurines, jewellery prototypes, scale models, engineering prototypes and other precision resin prints.

High-Speed Resin Printing – Up to 170mm/h

High resolution doesn't have to mean slow printing. The Anycubic Photon Mono M7 Pro can reach speeds of up to 170mm/h when using compatible high-speed resin at a 0.1mm layer height.

With standard resin at 0.1mm, printing speeds can reach up to 130mm/h, giving you the flexibility to prioritise speed, detail or a balance between the two depending on your project.

Dynamic Resin Temperature Control

One of the standout features of the Photon Mono M7 Pro is its dynamic temperature-control resin vat.

The system intelligently heats the resin to help maintain suitable printing conditions, particularly useful when printing in cooler environments. Maintaining a more consistent resin temperature can improve resin flow and help produce more predictable, repeatable printing results.

Automatic Resin Refill & Withdrawal

The included Auto-Fill Unit takes much of the manual work out of managing resin during longer printing jobs.

The system supports automatic resin refill and withdrawal, helping maintain sufficient resin in the vat during printing while also making resin management and cleanup more convenient.

This is particularly useful for larger models, batch printing and longer jobs where the printer may need to operate with less supervision.

14K Detail with Advanced COB Light Technology

The Photon Mono M7 Pro combines its 14K monochrome LCD with an advanced COB light source, Fresnel lens and light uniformity algorithm.

This system provides consistent UV illumination across the printing area, helping achieve accurate curing, sharp details and reliable results throughout the build plate.

With a light intensity of approximately 5500 ±10% μW/cm², the M7 Pro is engineered for both high-speed curing and precision printing.

Large 6.5L Build Volume

With a generous 223 × 126 × 230mm build volume, the M7 Pro gives you approximately 6.5 litres of printable space.

The larger build area provides plenty of room for:

• Large figurines and display models

• Multiple miniatures printed simultaneously

• Scale models

• Product prototypes

• Jewellery and design prototypes

• Engineering components

• Batch production of smaller resin parts

Whether you're printing one large model or filling the build plate with multiple parts, the M7 Pro provides the capacity for more ambitious projects.

Leveling-Free Design

The leveling-free design simplifies printer setup and eliminates the traditional manual build-plate levelling process.

A laser-engraved build platform provides strong first-layer adhesion, while the dual-linear-rail Z-axis system with 10μm precision provides stable and accurate vertical movement during printing.

Together, these features help reduce setup time while improving consistency from one print to the next.

Wide Resin Compatibility

The Anycubic Photon Mono M7 Pro supports a broad range of 405nm UV-curable 3D printing resins, including:

• High-Speed Resin

• Standard Resin

• ABS-Like Resin

• Water-Washable Resin

• Plant-Based Resin

• Other compatible UV-curable photopolymer resins

This makes the M7 Pro suitable for everything from highly detailed display models to tougher functional prototypes.

Smart Connectivity & Slicer Support

Transfer your print files using USB, Wi-Fi or LAN, allowing the M7 Pro to fit easily into different printing environments.

The printer supports Anycubic Photon Workshop and CHITUBOX, while Anycubic App support provides additional smart functionality and printer management options.

A responsive 4.3-inch touch-control screen provides easy access to printer settings and controls directly from the machine.

Key Features

• 10.1-inch 14K monochrome LCD for exceptionally detailed resin printing

• 13312 × 5120 LCD resolution

• Fine 16.8 × 24.8μm XY pixel size

• Maximum printing speed of up to 170mm/h with High-Speed Resin at 0.1mm

• Up to 130mm/h with Standard Resin at 0.1mm

• Large 223 × 126 × 230mm build volume

• Approximately 6.5L printing capacity

• Dynamic temperature-control resin vat

• Automatic resin refill and withdrawal

• COB light source with Fresnel lens

• Light uniformity algorithm for consistent exposure

• Leveling-free build platform

• Laser-engraved build plate for reliable adhesion

• Dual-linear-rail Z-axis with 10μm precision

• Improved ACF release film

• USB, Wi-Fi and LAN connectivity

• 4.3-inch touch-control screen

• Anycubic App support

• Compatible with multiple resin types

• Replaceable scratch-resistant LCD protection film

Specifications

• Brand: Anycubic

• Model: Photon Mono M7 Pro

• Printer Type: Resin 3D Printer

• Printing Technology: MSLA / LCD Resin

• LCD Screen: 10.1-inch Monochrome LCD

• LCD Resolution: 14K / 13312 × 5120

• XY Pixel Size: 16.8 × 24.8μm

• Build Volume: 223 × 126 × 230mm

• Build Capacity: Approximately 6.5L

• Layer Height: 0.01–0.15mm

• Maximum Printing Speed: Up to 170mm/h with High-Speed Resin at 0.1mm

• Standard Resin Speed: Up to 130mm/h at 0.1mm

• Light Source: COB Light Source + Fresnel Lens + Light Uniformity Algorithm

• Light Intensity: 5500 ±10% μW/cm²

• Build Platform: Laser-Engraved Build Plate

• Z-Axis: Dual Linear Rails

• Z-Axis Precision: 10μm

• Release Film: Improved ACF Film

• Resin Vat Capacity: Up to 1L

• Machine Levelling: Leveling-Free

• Dynamic Temperature-Control Vat: Supported

• Automatic Resin Refill: Supported

• Automatic Resin Withdrawal: Supported

• Power-Loss Resume: Not Supported

• Slicing Software: Anycubic Photon Workshop / CHITUBOX

• File Transfer: USB / Wi-Fi / LAN

• Control Screen: 4.3-inch Touch-Control Screen

• Anycubic App: Supported

• Air Purifier: Optional Accessory

• Power Supply: 240W

• Machine Dimensions: 312 × 315 × 520mm

• Machine Weight: Approximately 12.8kg

• Colour: Grey / Black

• Warranty: 12 Months

What's in the Box

• 1 × Anycubic Photon Mono M7 Pro 14K Resin 3D Printer

• 1 × Print Platform

• 1 × Resin Vat

• 1 × Auto-Fill Unit

• 1 × Wi-Fi Antenna

• 1 × Hex Key Set

• 5 × Filters

• 2 × Scrapers

• 1 × Levelling Paper

• 1 × USB Drive

• 1 × Power Cord

• 1 × Screen Protector Kit

• 1 × Protective Equipment Set

• 1 × User Manual

Ideal For

The Anycubic Photon Mono M7 Pro is an excellent choice for users who need high-resolution resin printing combined with faster production and intelligent automation. It is particularly well suited to tabletop miniatures, figurines, jewellery prototypes, scale models, dental and design models, engineering prototypes, product development and small-batch resin production.

With its 14K monochrome LCD, 170mm/h maximum printing speed, heated resin vat, automatic resin management, leveling-free design and large 6.5L build volume, the Photon Mono M7 Pro delivers an impressive combination of detail, speed and convenience for serious resin 3D printing.
