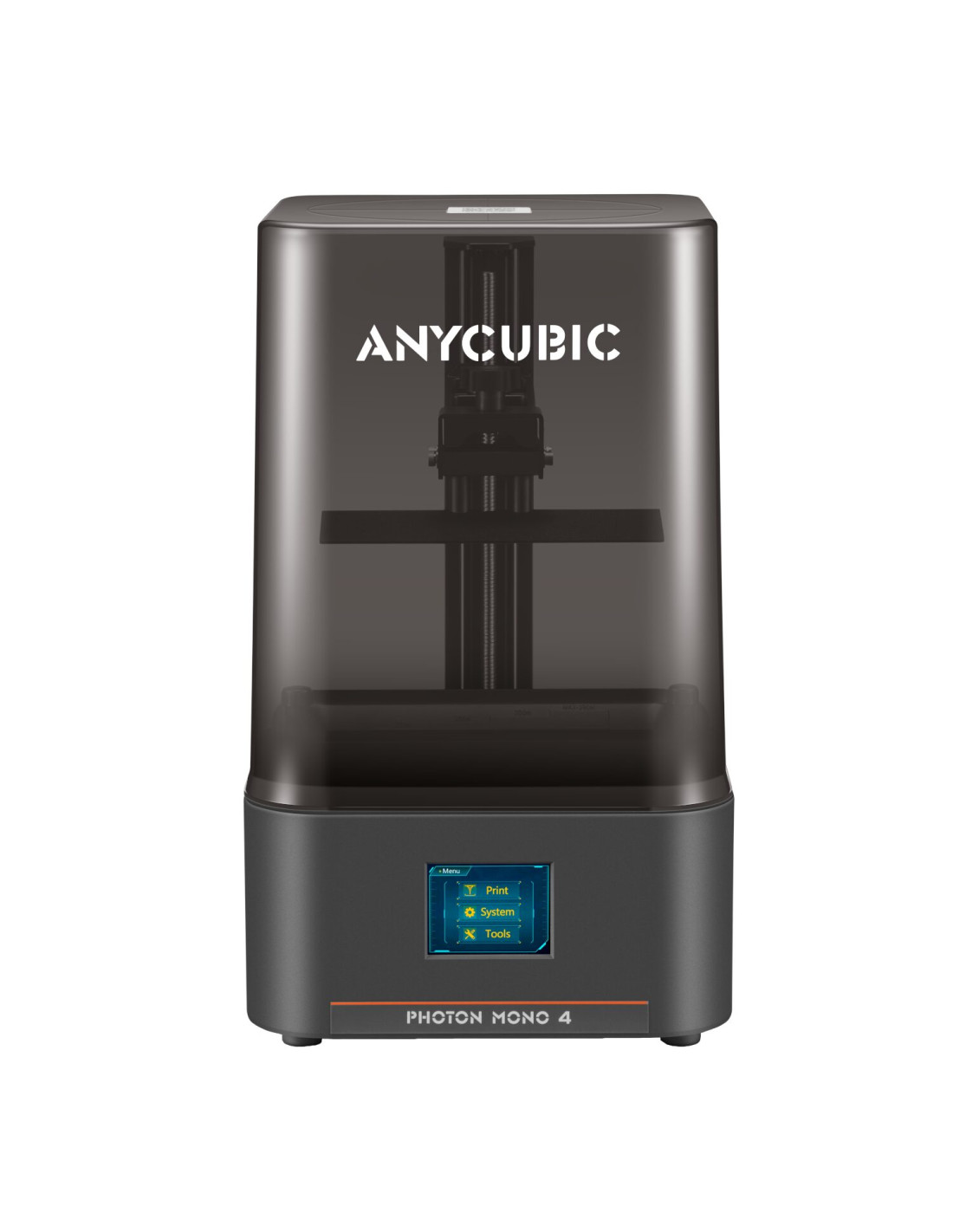

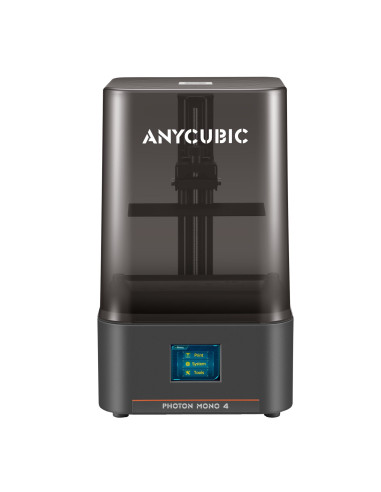

Anycubic PHOTON Mono 4 Resin 3D Printer

10K monochrome LCD for exceptional detail | 17 × 17μm XY pixel resolution | Up to 70mm/h with high-speed resin | 153.4 × 87 × 165mm build volume | MSLA resin 3D printing

The Anycubic Photon Mono 4 Resin 3D Printer is a high-resolution 10K MSLA resin printer designed for makers, hobbyists, miniature painters, model builders and creators who want exceptional detail at an accessible price.

At the heart of the Photon Mono 4 is a 7-inch 10K monochrome LCD with a resolution of 9024 × 5120 pixels and an impressive 17 × 17μm XY pixel resolution. This allows the printer to reproduce extremely fine textures, sharp edges, small features and smooth surfaces, making it an excellent choice for detailed miniatures, figurines, jewellery prototypes, display models and precision components.

The upgraded parallel matrix light source delivers consistent UV exposure across the printing area for reliable curing and uniform print quality. Combined with the laser-engraved build platform and stable single-linear-rail Z-axis system, the Photon Mono 4 provides dependable adhesion and accurate layer positioning.

With a generous 153.4 × 87 × 165mm build volume, the Photon Mono 4 provides approximately 2.2 litres of printable space while maintaining a compact desktop footprint. Print speeds reach up to 50mm/h with standard resin and up to 70mm/h when using compatible high-speed resin at a 0.1mm layer height, helping reduce production time for larger or repeated prints.

The printer features 4-point manual levelling, USB file transfer and a straightforward 2.8-inch touch-control screen. Models can be prepared using Anycubic Photon Workshop, providing an easy workflow from slicing your 3D model to starting the finished resin print.

The Photon Mono 4 supports a wide selection of 405nm UV-curable resins, including standard, high-speed, water-washable, ABS-like and plant-based resins, making it a versatile resin 3D printer for both beginners and experienced users.

Key Features

• 7-inch 10K monochrome LCD with 9024 × 5120 resolution

• Ultra-fine 17 × 17μm XY pixel resolution for highly detailed prints

• MSLA / LCD resin 3D printing technology

• Upgraded parallel matrix UV light source for consistent curing

• 153.4 × 87 × 165mm build volume

• Print speeds up to 50mm/h with standard resin

• Up to 70mm/h with compatible high-speed resin at 0.1mm layer height

• Laser-engraved build platform for improved print adhesion

• Single linear rail Z-axis with 30μm accuracy

• 4-point manual levelling system

• 2.8-inch touch-control interface

• USB file transfer

• Compatible with Anycubic Photon Workshop slicing software

• Supports standard, high-speed, water-washable, ABS-like and plant-based UV resins

• Replaceable scratch-resistant LCD protection film

• Optional activated-carbon air purifier compatibility

Specifications

• Brand: Anycubic

• Model: Photon Mono 4

• Printer Type: Resin 3D Printer

• Printing Technology: MSLA / LCD

• LCD Screen: 7-inch Monochrome 10K LCD

• LCD Resolution: 9024 × 5120 pixels

• XY Pixel Resolution: 17 × 17μm

• Build Volume: 153.4 × 87 × 165mm

• Build Capacity: Approximately 2.2L

• Layer Height Range: 0.03–0.15mm

• Standard Resin Print Speed: Up to 50mm/h

• High-Speed Resin Print Speed: Up to 70mm/h at 0.1mm layer height

• Light Source: Parallel Matrix Upgrade Light Source

• Light Intensity: Approximately 3000μW/cm²

• Build Platform: Laser-Engraved Build Plate

• Z-Axis: Single Linear Rail

• Z-Axis Accuracy: 30μm

• Release Film: FEP

• Resin Vat Capacity: Up to 0.39L

• Levelling: 4-Point Manual Levelling

• Control Screen: 2.8-inch Touch-Control Screen

• File Transfer: USB

• Slicing Software: Anycubic Photon Workshop

• Compatible Materials: 405nm UV-Curable Resin

• Power Supply: 54W

• Machine Dimensions: 230 × 235 × 391mm

• Machine Weight: Approximately 4kg

What's in the Box

• 1 × Anycubic Photon Mono 4 Resin 3D Printer

• 1 × Print Platform

• 1 × Resin Vat

• 2 × Filters

• 2 × Scrapers

• 3 × Hex Keys

• 1 × USB Drive

• 1 × Power Cord

• 1 × User Manual

• 1 × Screen Protector Kit

• 1 × Levelling Paper

• Protective equipment

Ideal For

The Anycubic Photon Mono 4 10K Resin 3D Printer is ideal for printing:

• Highly detailed miniatures and tabletop models

• Figurines and collectibles

• Jewellery prototypes

• Scale models

• Detailed decorative pieces

• Product prototypes

• Small precision components

• Hobby and creative resin projects

With its 10K resolution, 17μm XY precision, practical build volume and broad resin compatibility, the Anycubic Photon Mono 4 offers an excellent combination of detail, usability and value for anyone looking to get started with high-resolution resin 3D printing.
