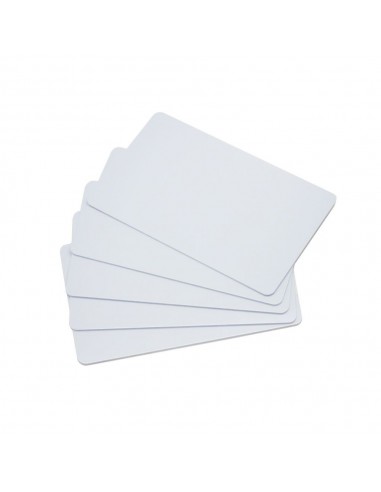

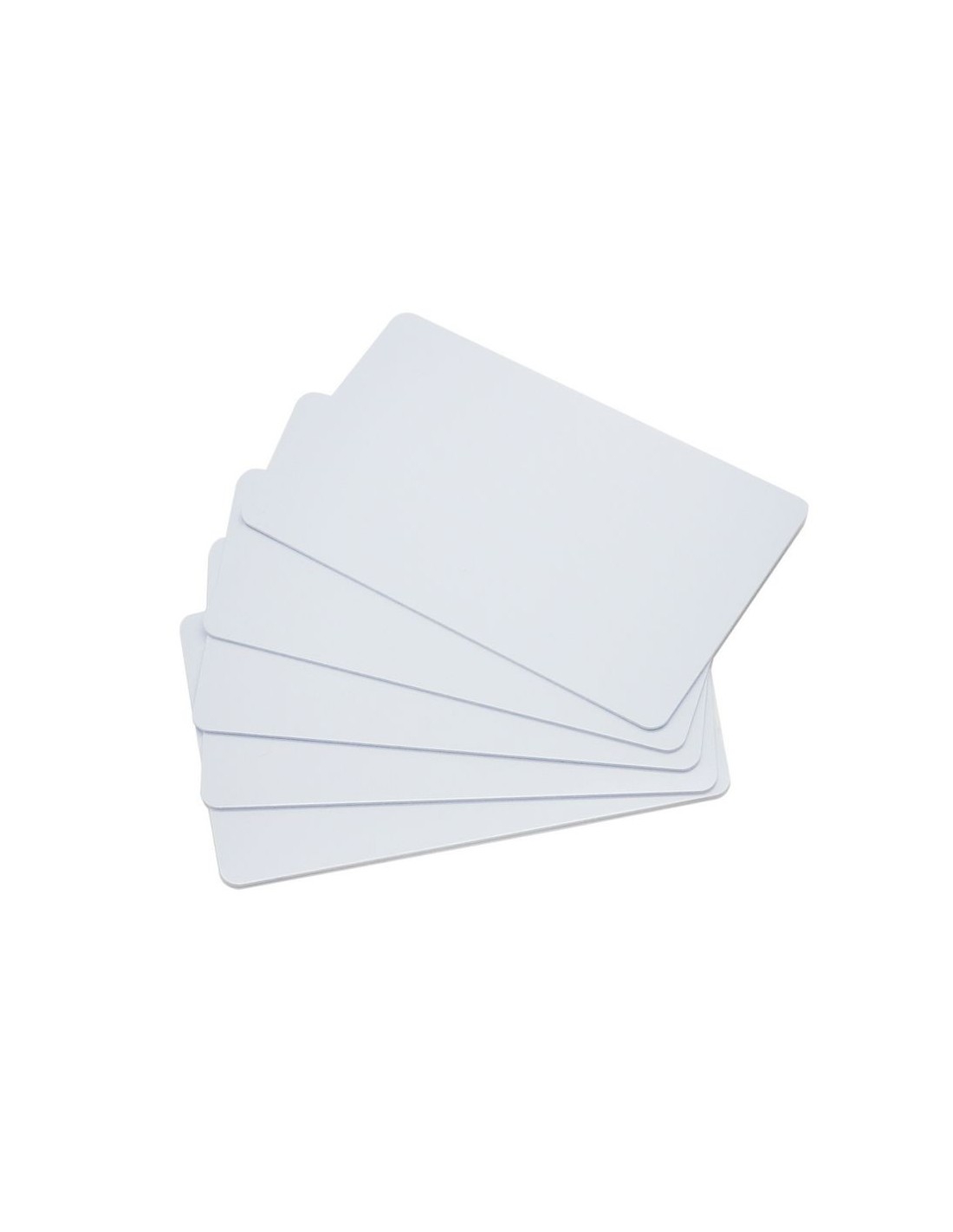

ISO Card MIFARE DESFire EV3 2K

The ISO Card MIFARE DESFire EV3 2K is a high-performance contactless smart card designed for advanced access control, secure identification, public transportation, and cashless payment applications. Built on the latest evolution of the NXP MIFARE DESFire family, the EV3 platform enhances security, speed, and user experience, making it a trusted choice for high-security environments.

Manufactured in standard CR80 (credit card) format, this durable PVC card supports multiple applications and enables seamless integration with existing NFC infrastructures. With its high-speed data transfer, secure messaging, and enhanced anti-cloning features, the DESFire EV3 2K card is ideal for organizations requiring robust data protection and long-term reliability.

Key Features:

• Genuine NXP MIFARE DESFire EV3 chip

• 2KB EEPROM memory (ideal for multi-application use)

• ISO/IEC 14443-A compliant (13.56 MHz contactless interface)

• Fast transaction speed with data transfer up to 848 kbps

• Supports 128-bit AES, 2K3DES, and 3K3DES encryption

• Proximity read range of up to 10 cm (depending on reader and environment)

• Unique 7-byte UID or random ID (selectable)

• Secure messaging with CMAC (Cipher-based Message Authentication Code)

• File system with up to 32 applications and 32 files per application

• Over 500,000 read/write cycles and 10-year data retention

• Anti-tear mechanism for transaction integrity

Technical Specifications:

• Chip Type: NXP MIFARE DESFire EV3 2K

• Memory: 2 KB EEPROM

• Frequency: 13.56 MHz (NFC Type A)

• Standards: ISO/IEC 14443 Type A, ISO/IEC 7816-4 command set

• Encryption: 3DES, 3K3DES, AES-128

• UID: 7-byte unique or random ID

• Read Range: Up to 100 mm (depending on reader)

• Dimensions: 85.6 x 54 mm (CR80 standard card size)

• Material: High-quality PVC

• Operating Distance: Up to 10 cm

• Operating Temperature: -25°C to +70°C

Common Applications:

• Corporate and government secure ID

• Public transport ticketing

• Campus and hotel access control

• Multi-application smart card systems

• Loyalty and membership programs

• Cashless vending and event ticketing

Upgrade your security system with the ISO Card MIFARE DESFire EV3 2K for fast, secure, and scalable performance. Contact us for bulk pricing and customization options including card printing, encoding, or UID mapping.

Contact us for bulk orders and custom printing options at info@netram.co.za or call us at 021 300 3116.

**price is for 1 card
