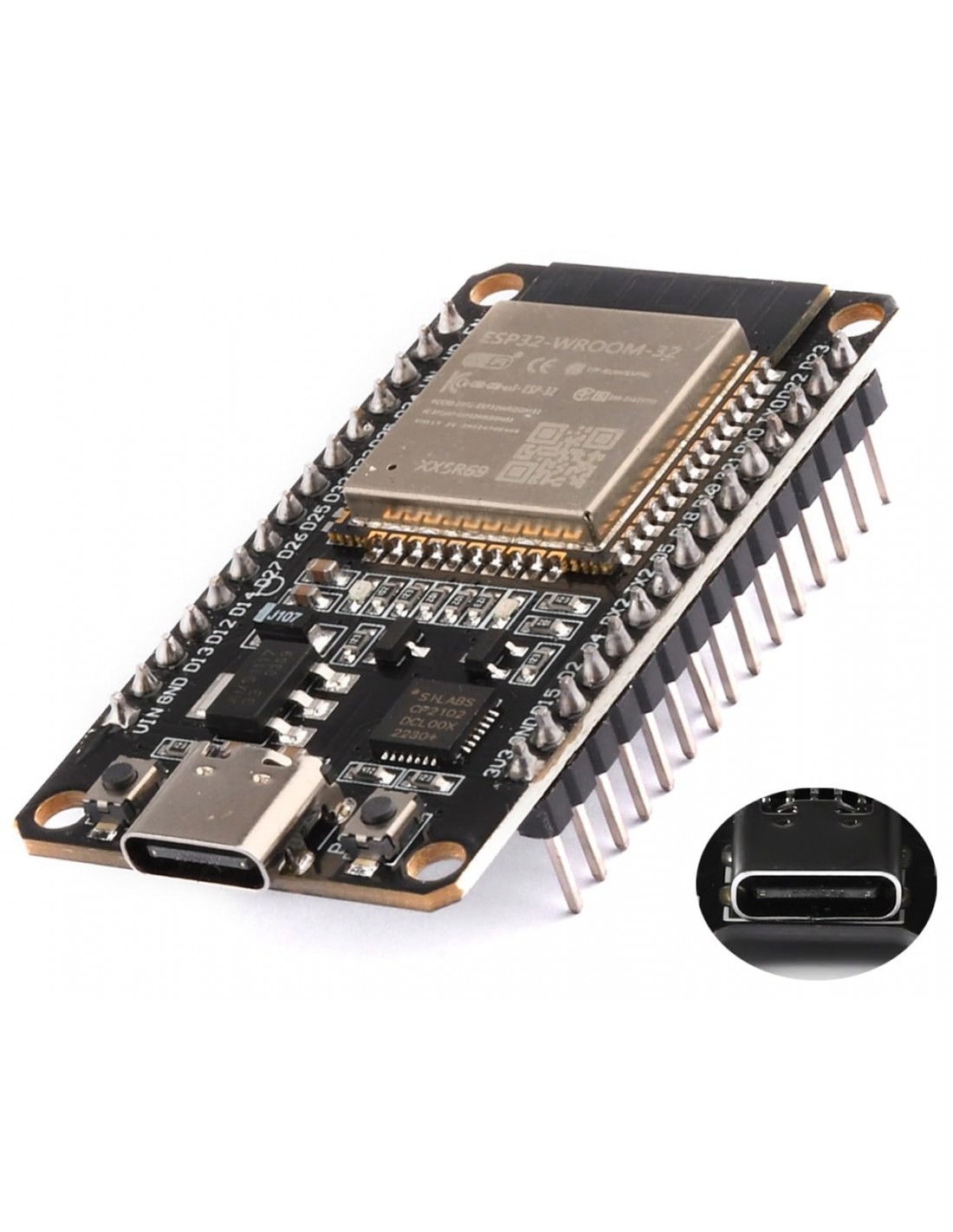

ESP32 CP2102 Type-C Development Board – WiFi & Bluetooth Dual-Core Microcontroller

The ESP32 CP2102 Type-C Development Board is a powerful and versatile microcontroller platform designed for IoT, embedded systems, and wireless communication projects. Built around the ESP32 dual-core processor, this board provides integrated WiFi and Bluetooth connectivity with ultra-low power consumption, making it ideal for both prototyping and production-ready designs.

Equipped with a CP2102 USB-to-UART converter and a modern USB Type-C interface, the board offers stable, high-speed programming and serial communication with improved reliability compared to older USB designs. The ESP32’s dual-core architecture allows one core to handle wireless communication while the other manages application logic, resulting in efficient multitasking and responsive performance.

With multiple GPIO pins, PWM, ADC, DAC, UART, SPI, and I²C interfaces, this ESP32 development board supports a wide range of sensors, displays, relays, and peripherals. It is fully compatible with the Arduino IDE, ESP-IDF, and MicroPython, making it suitable for beginners and advanced developers alike.

Key Features

• Dual-core ESP32 processor for high performance

• Integrated 2.4 GHz WiFi (802.11 b/g/n) and Bluetooth (Classic + BLE)

• Ultra-low power consumption for battery-powered applications

• USB Type-C interface for stable power and data connection

• CP2102 USB-to-UART chip for reliable programming and debugging

• Wide GPIO support for flexible hardware integration

Technical Specifications

• Microcontroller: ESP32 Dual-Core (Xtensa LX6)

• Clock Speed: Up to 240 MHz

• Wireless Connectivity: WiFi 2.4 GHz, Bluetooth Classic & BLE

• USB Interface: USB Type-C

• USB-to-Serial Chip: CP2102

• Operating Voltage: 3.3 V

• Input Voltage: 5 V via USB

• GPIO: Multiple digital I/O pins with PWM support

• Communication Interfaces: UART, SPI, I²C, ADC, DAC

• Programming Support: Arduino IDE, ESP-IDF, MicroPython

Typical Applications

• IoT and smart home devices

• Wireless sensors and data loggers

• Home automation and remote monitoring

• Robotics and automation projects

• Wearable and low-power embedded systems

The ESP32 CP2102 Type-C Development Board delivers a reliable, feature-rich platform for modern wireless projects, combining high processing power, flexible connectivity, and low energy consumption in a compact form factor.
