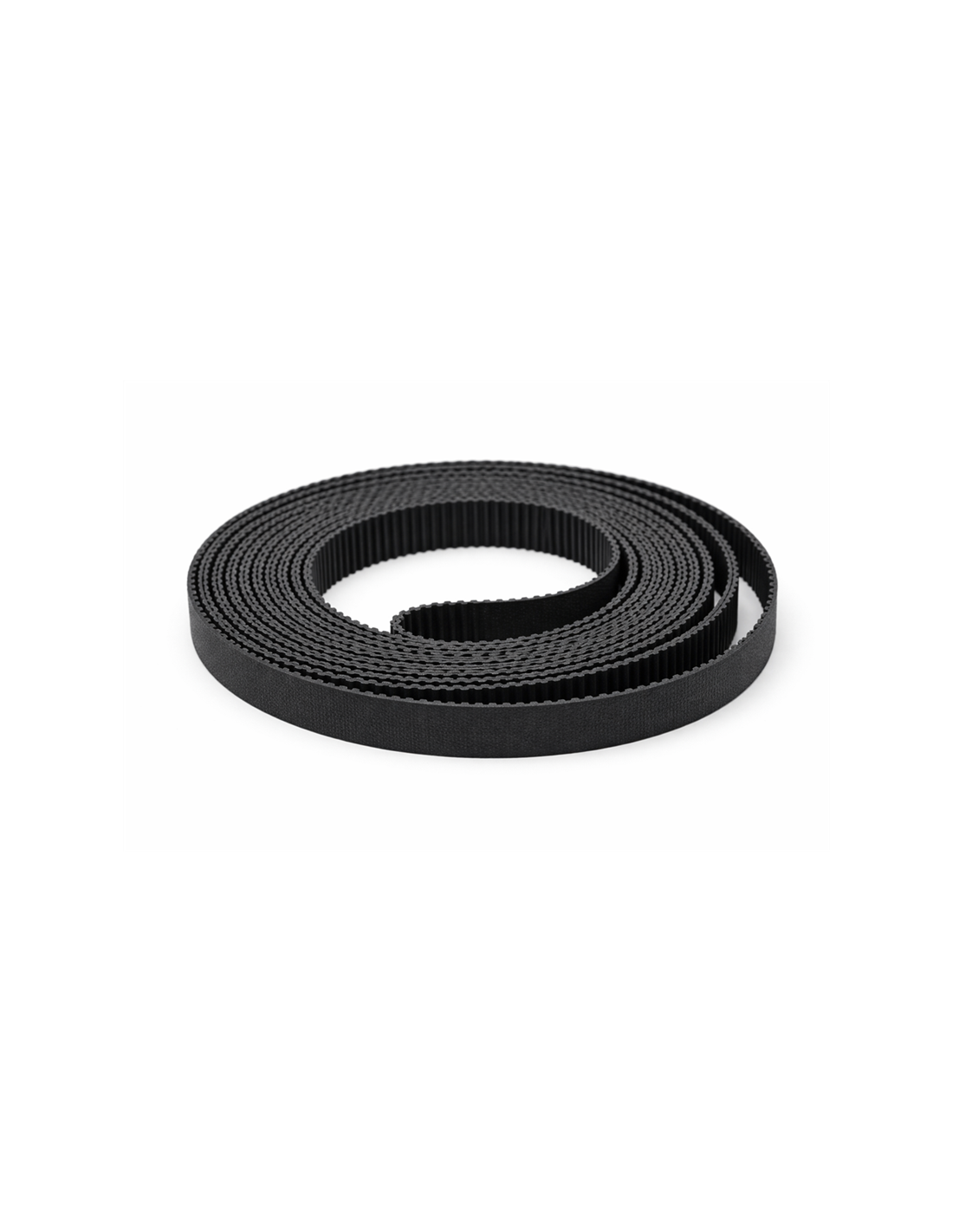

GT2 400mm Endless Belt

400-2GT-6 Timing Belt – 2 mm Pitch, 6 mm Width, 400 mm Length (400 Teeth)

The 400-2GT-6 timing belt is a precision synchronous belt engineered for accurate, smooth, and reliable motion transmission in compact belt-driven systems. With a 2 mm GT2 pitch, 6 mm belt width, and an overall length of 400 mm, this belt is ideal for applications where space is limited but positioning accuracy is critical.

The GT2 tooth profile provides improved tooth engagement, reduced backlash, and quieter operation compared to standard trapezoidal timing belts. Manufactured from high-quality reinforced rubber with strong tensile cords, the belt delivers excellent flexibility, dimensional stability, and long service life under continuous operation.

Key Features

• Precision GT2 (2 mm pitch) timing profile

• Smooth, low-backlash motion control

• Quiet operation with reduced vibration

• High wear resistance and long lifespan

• Suitable for continuous and high-speed motion systems

Technical Specifications

• Model: 400-2GT-6

• Pitch: 2 mm (GT2)

• Belt Width: 6 mm

• Length: 400 mm

• Number of Teeth: 400

• Material: Reinforced rubber with tensile cords

• Tooth Profile: GT2

• Type: Closed-loop timing belt

Typical Applications

• 3D printers and compact CNC machines

• Linear motion and positioning systems

• Robotics and automation assemblies

• Small belt-driven mechanical systems

The 400-2GT-6 GT2 timing belt is a reliable choice for precision motion applications requiring consistent performance, accuracy, and durability.
