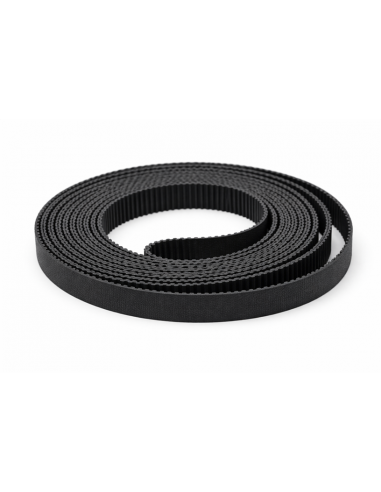

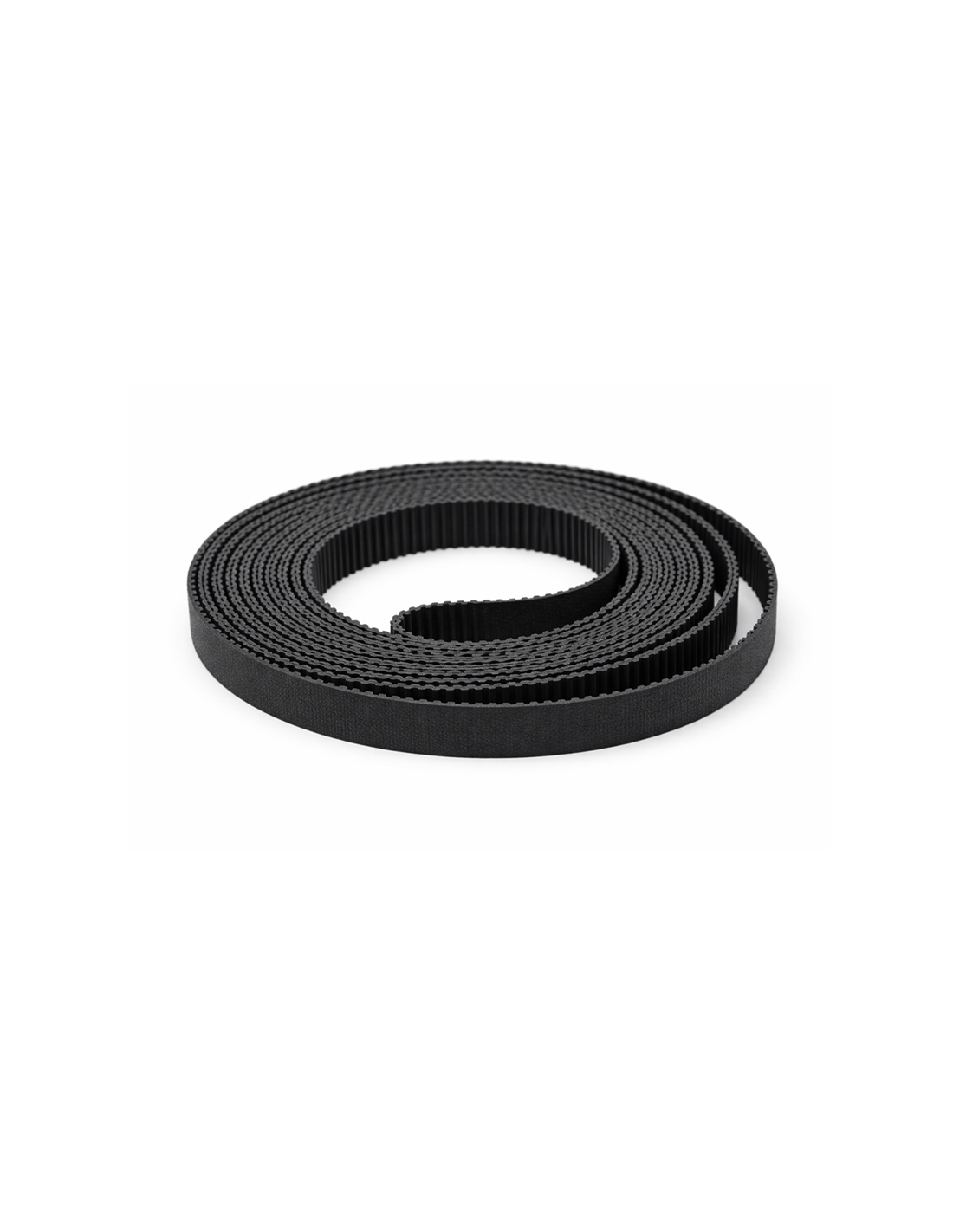

GT2 500mm Endless Belt

500-2GT-6 Timing Belt – 2 mm Pitch, 6 mm Width, 500 mm Length (500 Teeth)

The 500-2GT-6 timing belt is a precision synchronous belt designed for smooth, accurate, and dependable motion transfer in compact belt-driven systems. With a 2 mm GT2 pitch, 6 mm belt width, and an overall length of 500 mm, this belt is well suited to applications requiring precise positioning and low backlash.

The GT2 tooth profile delivers improved tooth engagement, reduced vibration, and quieter operation compared to standard timing belts. Manufactured from high-quality reinforced rubber with strong tensile cords, the belt offers excellent flexibility, dimensional stability, and long service life under continuous use.

Key Features

• Precision GT2 (2 mm pitch) tooth profile

• Smooth, low-backlash motion control

• Quiet operation with reduced vibration

• High wear resistance and durability

• Suitable for continuous and high-speed motion systems

Technical Specifications

• Model: 500-2GT-6

• Pitch: 2 mm (GT2)

• Belt Width: 6 mm

• Length: 500 mm

• Number of Teeth: 500

• Material: Reinforced rubber with tensile cords

• Tooth Profile: GT2

• Type: Closed-loop timing belt

Typical Applications

• 3D printers and small CNC machines

• Linear motion and positioning systems

• Robotics and automation projects

• Compact belt-driven mechanisms

The 500-2GT-6 GT2 timing belt is an excellent choice for precision motion applications where reliability, accuracy, and consistent performance are required.
