XH2.54 6P Female Connectors – 2.54mm Pitch – 10 Pack

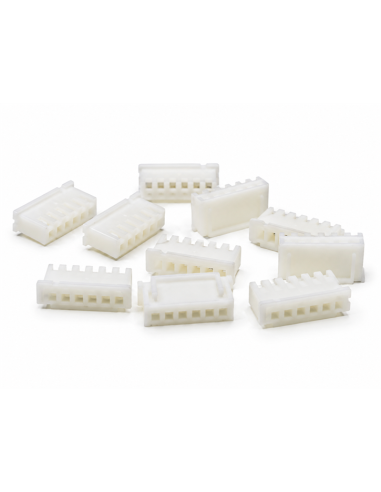

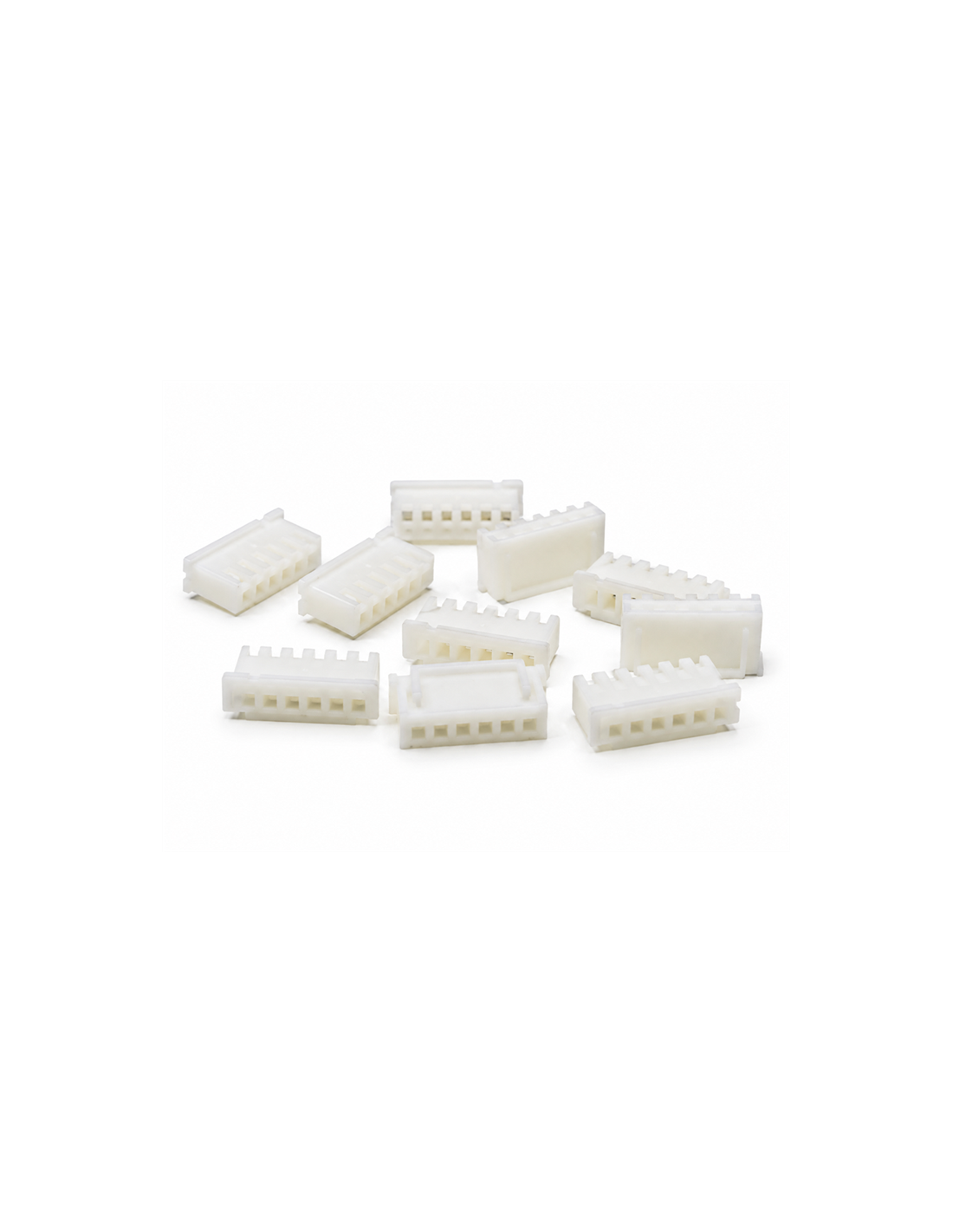

XH2.54 6-Pin Female Connector Housings – 2.54mm Pitch Wire-to-Board Connectors for PCB, Arduino, ESP32 and DIY Electronics

The XH2.54 6P Female Connectors (10 Pack) provide a compact and reliable solution for creating detachable wire-to-board connections in electronic circuits, printed circuit boards (PCBs) and custom electronics projects.

Featuring a standard 2.54mm pin pitch and 6-pin configuration, these female connector housings are designed to accommodate compatible crimp terminals and mate with matching XH2.54 6-pin male PCB headers.

Manufactured from insulating white plastic, the connectors feature a keyed housing design that helps ensure correct alignment when connecting to compatible male headers. Their compact construction makes them ideal for organising wiring, connecting electronic modules and simplifying maintenance or repairs.

Whether you're assembling custom PCB circuits, building Arduino and ESP32 projects, repairing electronic equipment or developing automation systems, these XH2.54 6-pin female connector housings offer a convenient and reusable connection solution.

Supplied in a pack of 10, they are suitable for electronics hobbyists, technicians, engineers and manufacturers.

Key Features

• 10 Pack: Includes 10 individual XH2.54 6-pin female connector housings.

• 6-Pin Configuration: Provides six positions for electrical connections, including power, ground and signal lines.

• 2.54mm Pin Pitch: Standard 2.54mm (0.1-inch) spacing between connector positions.

• Female Connector Housing: Designed to mate with compatible XH2.54 6-pin male PCB headers.

• White Insulating Plastic: Lightweight housing that helps keep electrical contacts separated.

• Keyed Design: Helps guide the connector into the correct mating position.

• Crimp Terminal Compatibility: Accepts suitable XH-series female crimp terminals for wire termination.

• Detachable Connections: Allows compatible wire harnesses to be connected and disconnected without desoldering.

• Compact Construction: Suitable for applications where PCB space is limited.

• Versatile Applications: Ideal for PCB assembly, electronic repairs, prototyping and custom wiring harnesses.

Technical Specifications

• Product Name: XH2.54 6P Female Connector

• Connector Series: XH2.54 Compatible

• Connector Type: Female Wire Housing

• Number of Positions: 6

• Pin Pitch: 2.54mm (0.1 inch)

• Connection Type: Wire-to-Board

• Mounting Type: Cable / Wire Mount

• Housing Colour: White

• Housing Material: Insulating Plastic

• Terminal Type: Compatible Female Crimp Contacts

• Mating Connector: XH2.54 6-Pin Male PCB Header

• Assembly Method: Crimp terminals inserted into connector housing

• Quantity: 10 Pieces

Applications

These XH2.54 6-pin female connectors are suitable for a wide range of electronics and electrical projects, including:

• Arduino Projects: Create detachable connections between Arduino development boards, custom PCBs and electronic peripherals.

• ESP32 and ESP8266 Development: Connect compatible electronic modules, sensors and control circuits.

• PCB Assembly: Build custom wire harnesses for printed circuit boards.

• Sensor Connections: Connect multiple sensor signals, power and ground through a single connector.

• Robotics and Automation: Create organised wiring connections for control systems, sensors and electronic modules.

• 3D Printer Electronics: Suitable for compatible control boards, sensors and electronic accessories using XH2.54 connectors.

• Electronic Repairs: Replace damaged connector housings in compatible electronic equipment.

• DIY Electronics: Ideal for hobbyists and makers assembling custom electronic projects.

• Custom Wiring Harnesses: Create detachable multi-wire connections for electronic equipment.

• Prototyping and Testing: Simplify circuit connections and allow easier component replacement.

Compatibility

These female connector housings are designed to mate with compatible XH2.54 6-pin male PCB headers featuring a 2.54mm pitch.

Common compatible applications include:

• XH2.54 6P male PCB connectors

• Compatible XH-series female crimp terminals

• Custom PCB assemblies

• Arduino and ESP32-based electronic projects

• Electronic control boards

• Sensor and peripheral modules

• Robotics and automation equipment

• Compatible 3D printer electronic components

• Custom low-voltage wiring harnesses

Important Compatibility Note: Although these connectors feature a 2.54mm pitch, they are not necessarily interchangeable with all other 2.54mm connector series. Always verify the connector profile, number of positions, locking mechanism and mating compatibility before installation.

Installation

To assemble a wire harness using these connectors:

1. Strip the insulation from the ends of the wires.

2. Crimp compatible XH-series female terminals onto the wires using a suitable crimping tool.

3. Insert the crimped terminals into the connector housing until securely seated.

4. Check that each terminal is correctly positioned and retained.

5. Connect the completed female housing to a compatible XH2.54 6-pin male header.

Package Includes

• 10 × XH2.54 6-Pin Female Connector Housings – 2.54mm Pitch

Please Note: These are female plastic connector housings only. Crimp terminals, wires and mating male PCB headers are not included unless otherwise specified.

The XH2.54 6P Female Connector 10 Pack offers a practical and cost-effective solution for creating organised, detachable wire-to-board connections in electronics prototyping, PCB assembly, repairs and custom electronic projects.
