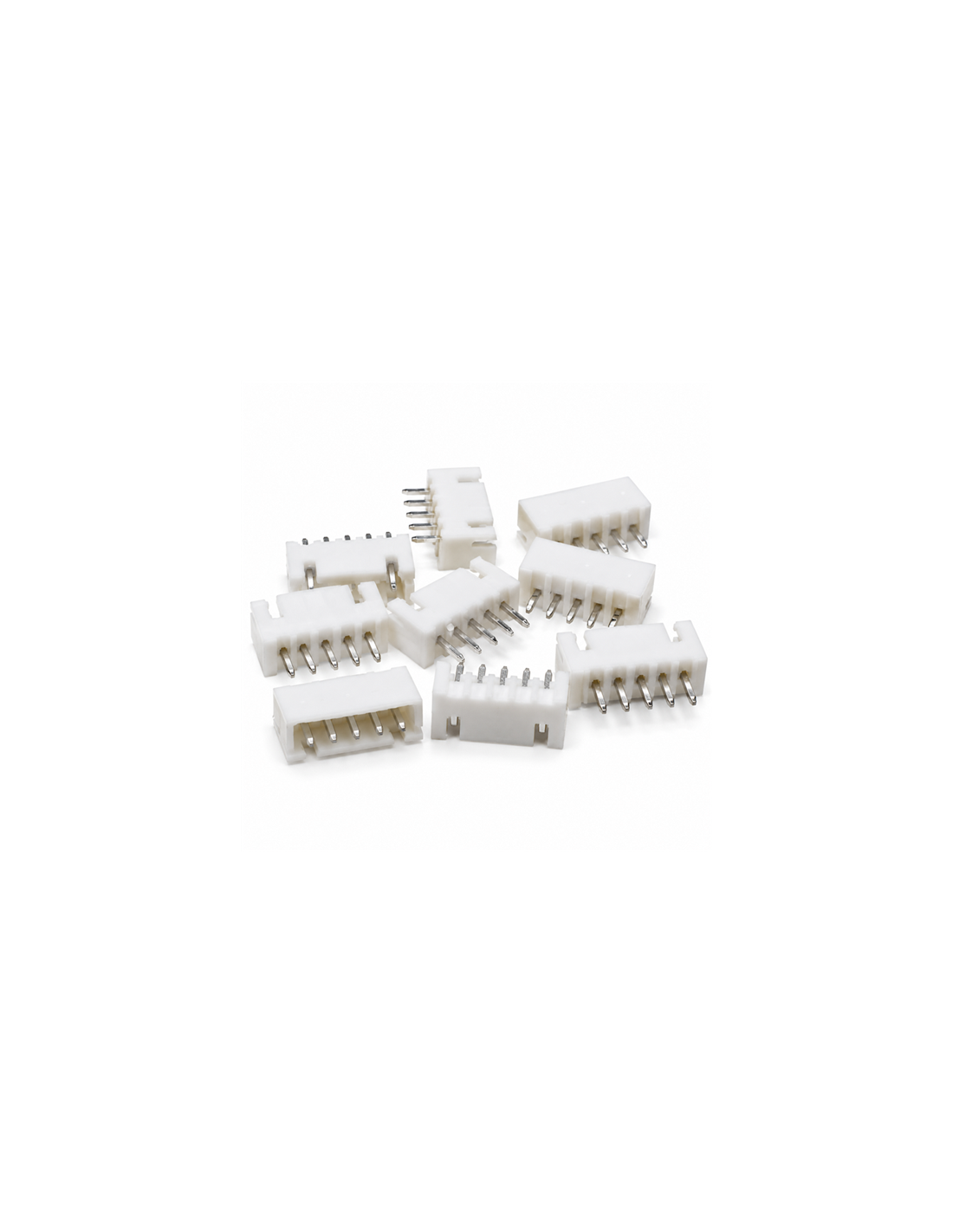

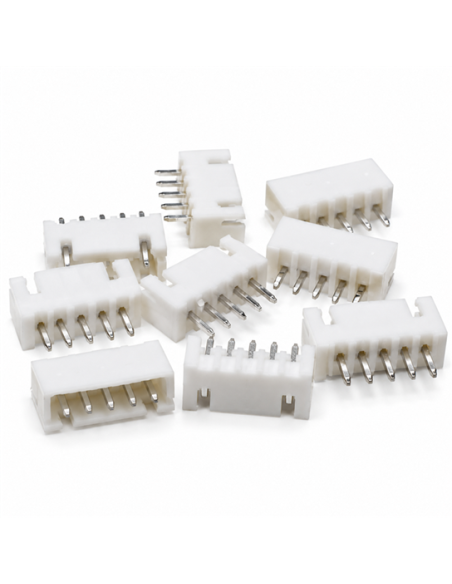

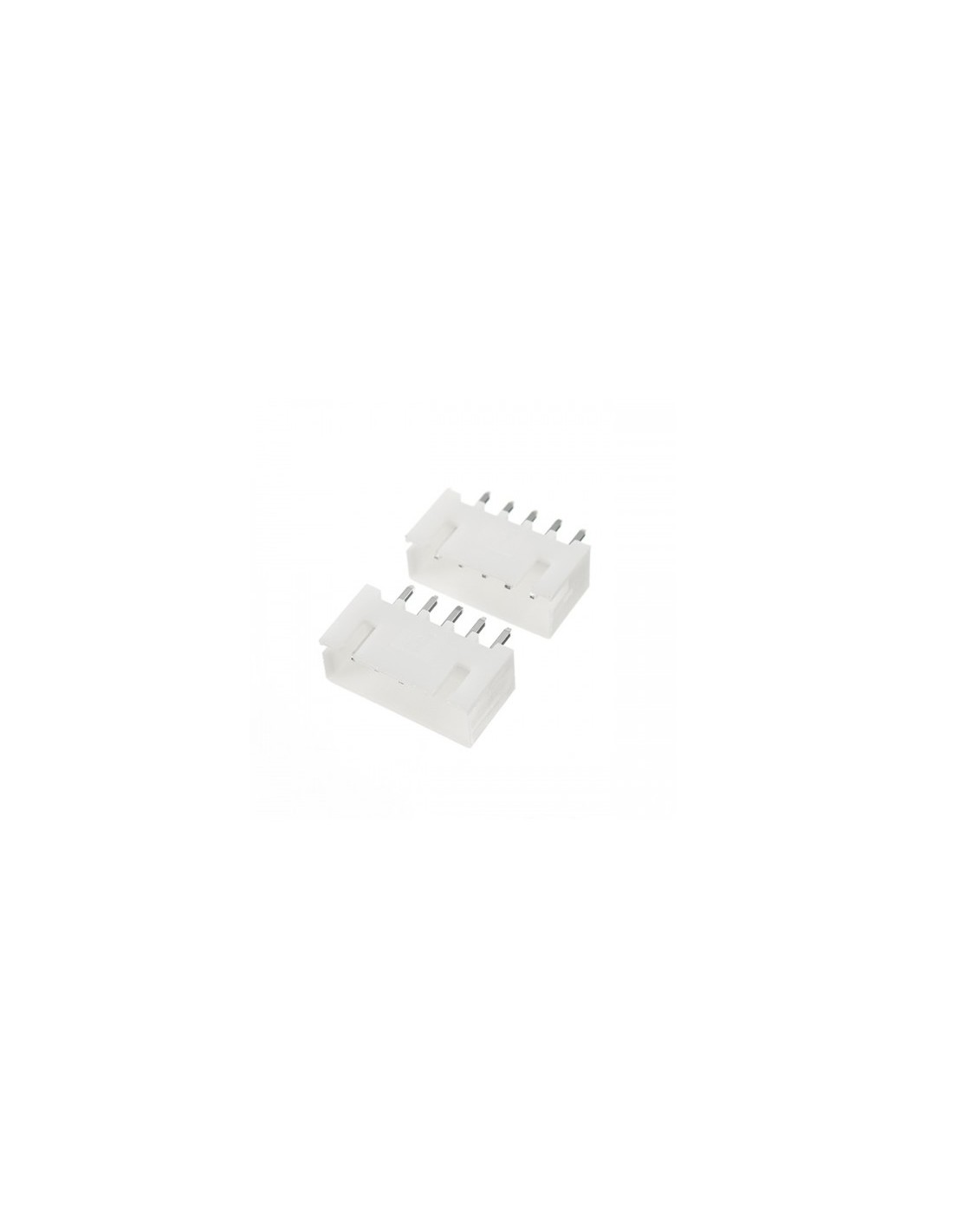

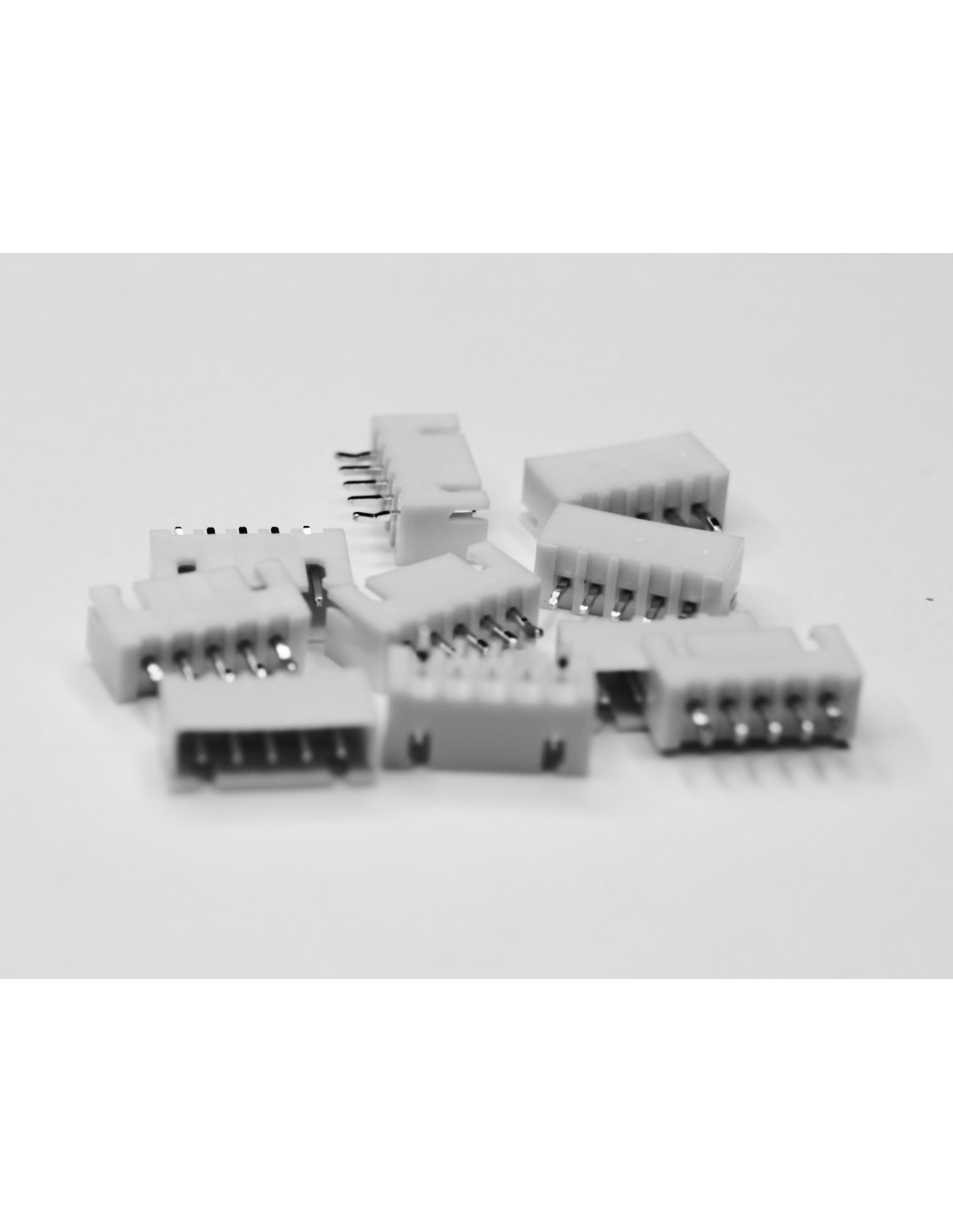

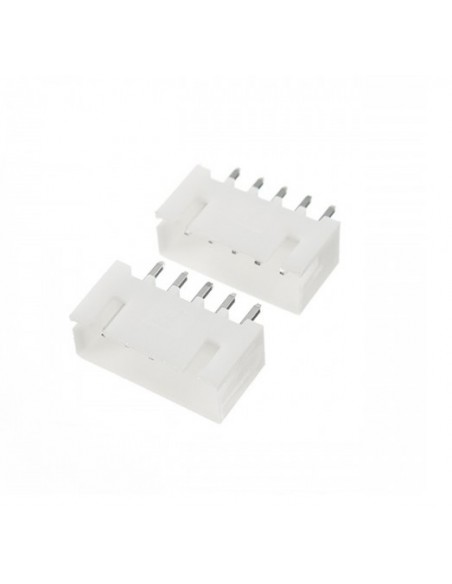

XH2.54 5P Male PCB Connector – 2.54mm Pitch (10 Pack)

The XH2.54 5-Pin Male PCB Connector is a compact and reliable wire-to-board connector designed for secure electrical connections in electronic circuits. Featuring a standard 2.54mm pin pitch, these connectors are ideal for Arduino projects, 3D printers, robotics, PCB assemblies and various DIY electronics applications.

Each connector features five metal pins housed in a durable white plastic body, providing a secure connection when paired with a compatible XH2.54 5-pin female connector housing.

The right-angle design allows for horizontal PCB mounting, making these connectors particularly useful in applications where space is limited or where cables need to connect parallel to the circuit board.

Key Features

• 5-Pin Configuration: Provides five electrical connection points for signal and power connections.

• 2.54mm Pin Pitch: Compatible with matching XH2.54 series female connector housings.

• Right-Angle Design: Designed for horizontal PCB mounting and convenient cable routing.

• Durable Construction: White insulating plastic housing with metal contact pins.

• Secure Connection: Shrouded and polarised design helps ensure correct connector alignment.

• PCB Mounting: Suitable for through-hole soldering onto printed circuit boards.

• Versatile Applications: Ideal for Arduino, robotics, 3D printers, sensors and electronic control systems.

• Value Pack: Supplied in a convenient pack of 10 connectors.

Technical Specifications

• Product Type: Male PCB Header Connector

• Connector Series: XH2.54

• Number of Pins: 5 Pin (5P)

• Pin Pitch: 2.54mm

• Connector Gender: Male

• Mounting Type: Through-Hole PCB Mount

• Orientation: Right Angle (90°)

• Connection Type: Wire-to-Board

• Housing Colour: White

• Housing Material: Insulating Plastic

• Contact Material: Metal

• Compatible Connector: XH2.54 5-Pin Female Connector Housing

• Quantity: 10 Pieces

Common Applications

• Arduino and microcontroller projects

• 3D printer electronics and wiring

• Robotics and automation systems

• PCB circuit board connections

• Sensor modules and control boards

• DIY electronics and prototyping

• Electronic repairs and maintenance

• Power and signal connections

Package Contents

• 10 × XH2.54 5-Pin Male Right-Angle PCB Connectors

Please Note: These are male PCB-mounted connectors designed to be soldered onto a circuit board. Compatible XH2.54 5-pin female connector housings, crimp terminals and connecting wires are sold separately.

Pins sold separately. Click here
