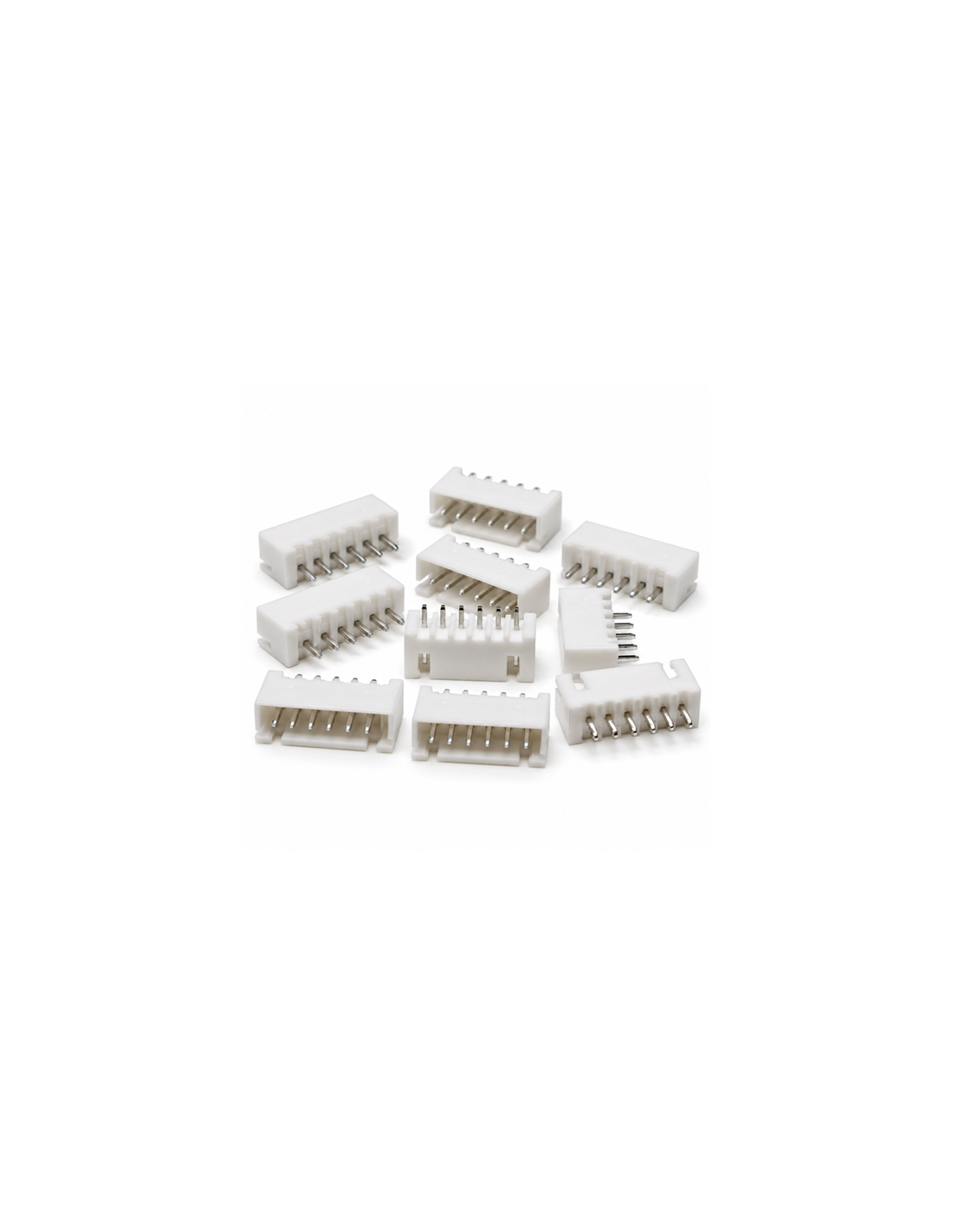

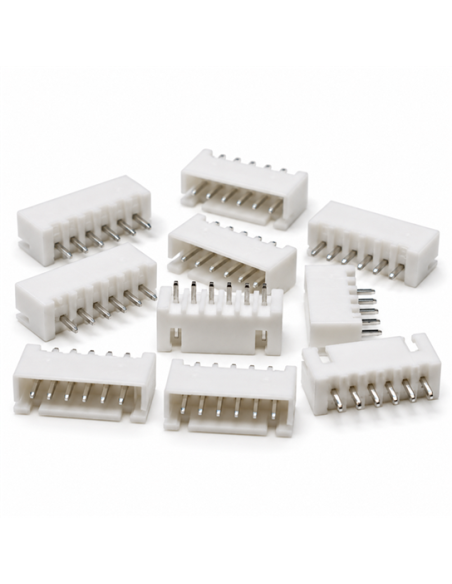

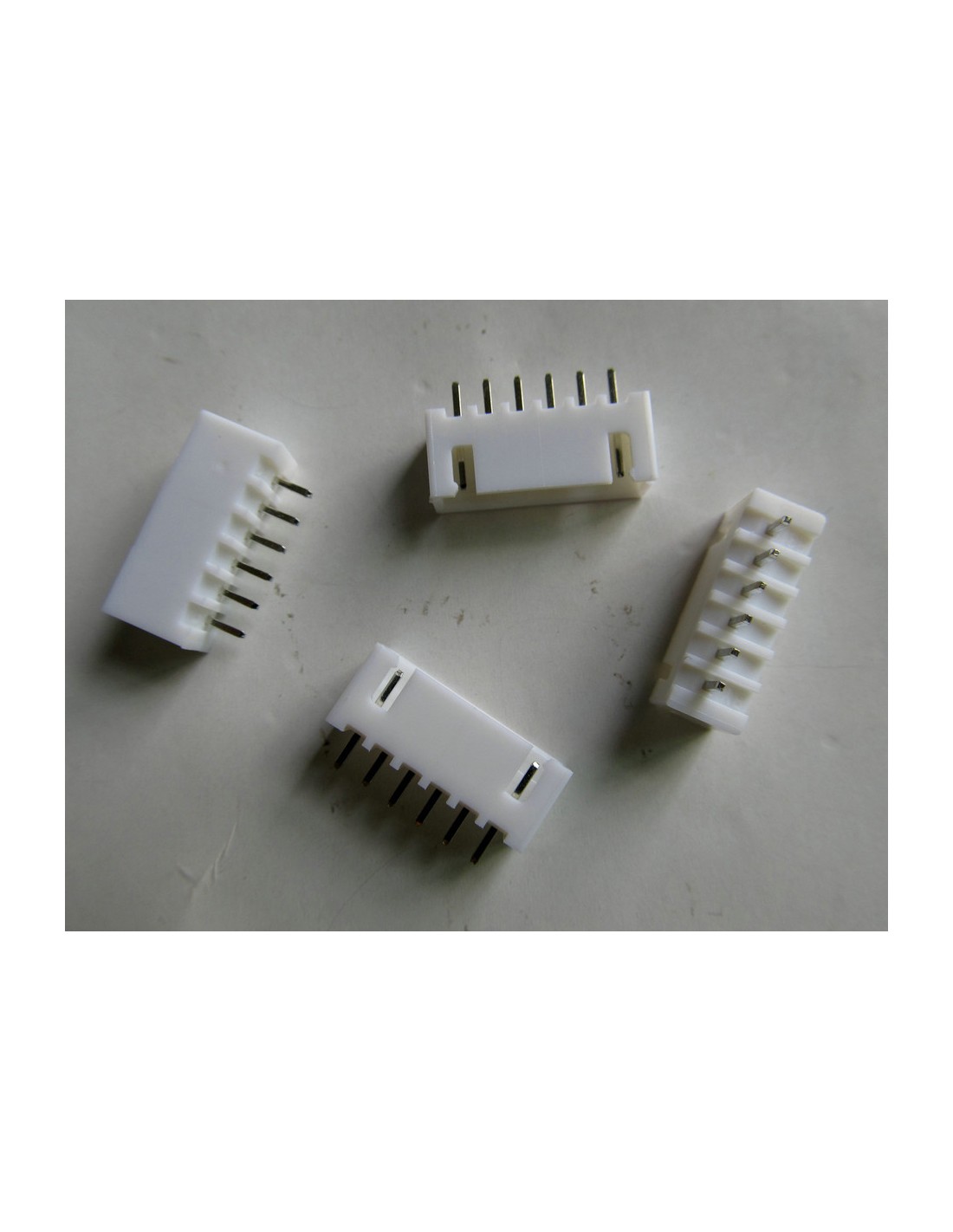

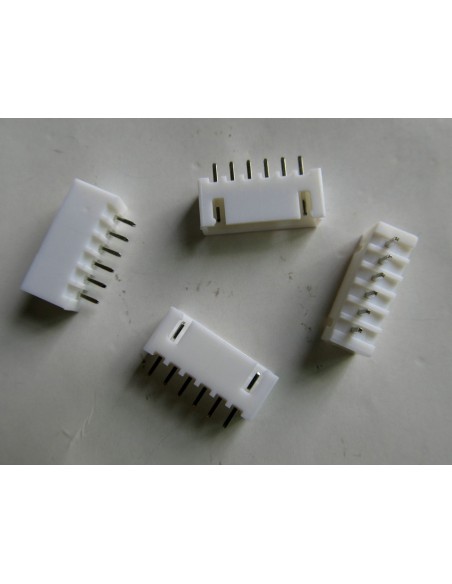

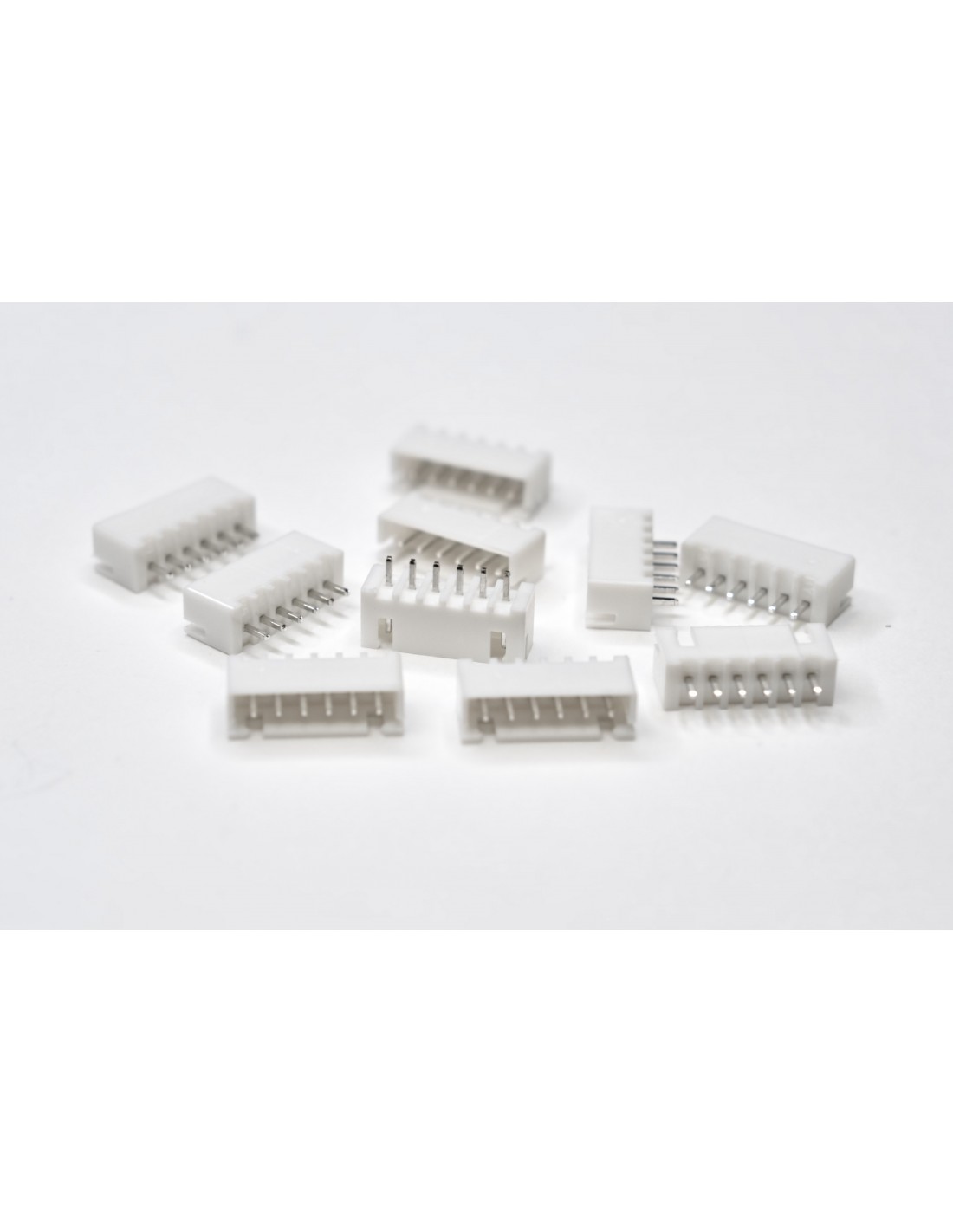

XH2.54 6P Male PCB Connector – 2.54mm Pitch (10 Pack)

The XH2.54 6-Pin Male PCB Connector is a compact and reliable wire-to-board connector designed for secure electrical connections in electronic circuits. Featuring a standard 2.54mm pin pitch, these connectors are ideal for Arduino projects, 3D printers, robotics, PCB assemblies and various DIY electronics applications.

Each connector features six metal pins housed in a durable white plastic body, providing a secure and stable connection when paired with a compatible XH2.54 6-pin female connector housing.

The right-angle (90°) design allows for horizontal PCB mounting, making these connectors particularly useful in applications where space is limited or cables need to connect parallel to the circuit board.

Key Features

• 6-Pin Configuration: Provides six electrical connection points for power and signal connections.

• 2.54mm Pin Pitch: Compatible with matching XH2.54 series female connector housings.

• Right-Angle Design: Designed for horizontal PCB mounting and convenient cable routing.

• Durable Construction: White insulating plastic housing with metal contact pins.

• Secure Connection: Shrouded and polarised housing helps ensure correct connector alignment.

• PCB Mounting: Suitable for through-hole soldering onto printed circuit boards.

• Compact and Lightweight: Ideal for electronic projects with limited installation space.

• Value Pack: Supplied in a convenient pack of 10 connectors.

Technical Specifications

• Product Type: Male PCB Header Connector

• Connector Series: XH2.54

• Number of Pins: 6 Pin (6P)

• Pin Pitch: 2.54mm

• Connector Gender: Male

• Mounting Type: Through-Hole PCB Mount

• Orientation: Right Angle (90°)

• Connection Type: Wire-to-Board

• Housing Colour: White

• Housing Material: Insulating Plastic

• Contact Material: Metal

• Compatible Connector: XH2.54 6-Pin Female Connector Housing

• Quantity: 10 Pieces

Common Applications

• Arduino and microcontroller projects

• 3D printer electronics and wiring

• Robotics and automation systems

• PCB circuit board connections

• Sensor modules and control boards

• DIY electronics and prototyping

• Electronic repairs and maintenance

• Power and signal connections

• Industrial electronic control systems

Package Contents

• 10 × XH2.54 6-Pin Male Right-Angle PCB Connectors

Please Note: These are male PCB-mounted connectors designed to be soldered onto a circuit board. Compatible XH2.54 6-pin female connector housings, crimp terminals and connecting wires are sold separately.

Pins sold separately. Click here
