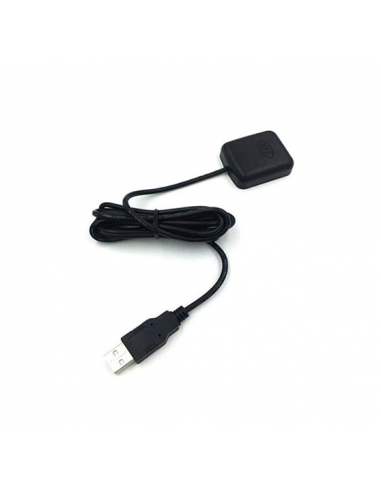

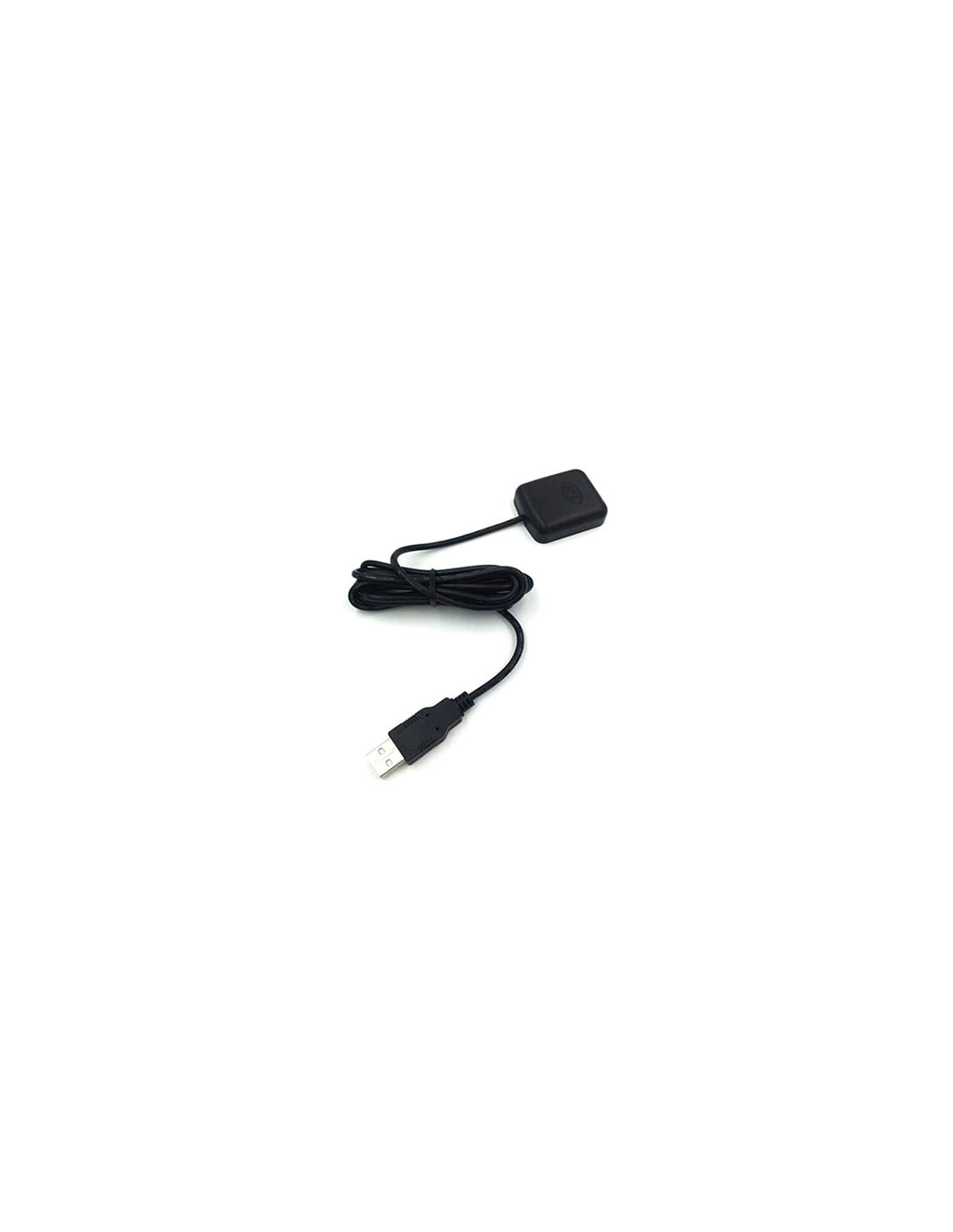

USB Interface GPS Receiver GPS Satellite Positioning Module
- Support: Google Earth map and Microsoft streets & Trips map.
- Support: Win 10/ Win 8/ Win 7/ Win XP/ Win 98/ Win Vista etc.
- Support switching Baud Rate 1200/2400/4800/9600/19200 etc by u-center.
- Built-in High Performance GPS chipset(U-BLOX) and GPS Patch Antenna.
- Ultra High Tracking Sensitivity
Product Description:
This is a USB GPS Support Google Earth App and Microsoft streets & Trips App. This a complete GPS engine module that features super sensitivity, Ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol. Its -165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, ships, PC, Notebook and car vehicle navigation systems.
Features:
Built-in High Gain LNA
Built-in High Performance GPS chipset
Ultra High Tracking Sensitivity
Extremely Fast TTFF (Time To First Fix) At Low Signal Level
Support NMEA 0183 Data Protocol
Built-in Patch Antenna
Super-cohesive Sticker For Mounting On The Car
1.5 Meters Cable Length Enough For Install Anywhere
USB Interface Connection Port
Specifications:
Chipset: low-power chipset
Input Voltage: 3.0V~5.5V DC
Power Consumption: 30~38MA
Port: USB
Protocol: NEMA 0183
Baud Rate: 9,600bps
Sensitivity: -163 dBm
Channels: 48s channel
Dimension: 45*38*13 mm
USB Cable length: 1.5 M
Weight: 60 g
Protocol NMEA 0183
GGA: Global positioning system fixed data
GSA: GNSSDOP and active satellites
GSV: GNSS satellites in view
RMC: Recommend minimum specific GNSS data
