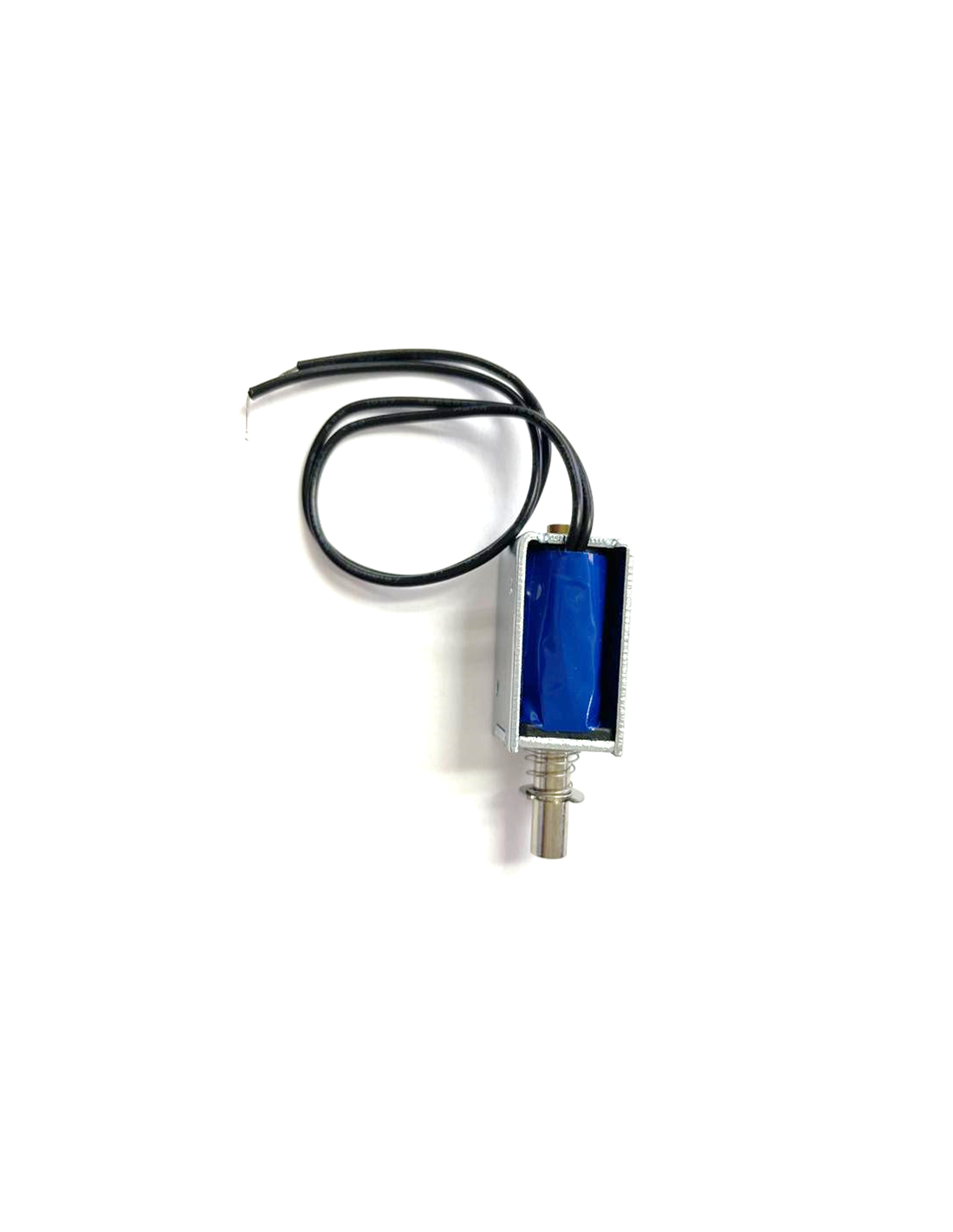

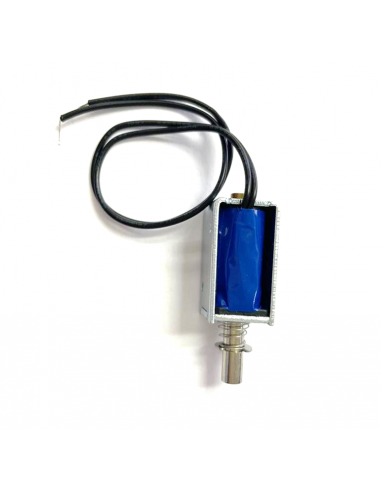

DC 5V Solenoid Electromagnet Pull Type Linear Solenoid

MEC-00194
Backorder (Out of Stock)
R115.05
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Model: JF-0530B
Rated voltage: DC5v
Rated current: 0.7A REF
Mass resistance: 7.1 Ω
Withstand voltage: AC500V/0.5mA, 1 minute or AC600V/0.5mA, 1 second
Attraction: Connect DC5V power supply, stroke 3mm, attractive force above 40 gf. (Initial value)
The highest temperature rise: the coil surface temperature is below 80 °C (energization frequency ≤ 50%)
Lifetime: 200,000 times or more under normal use. (Power-on frequency ≤ 50%)
