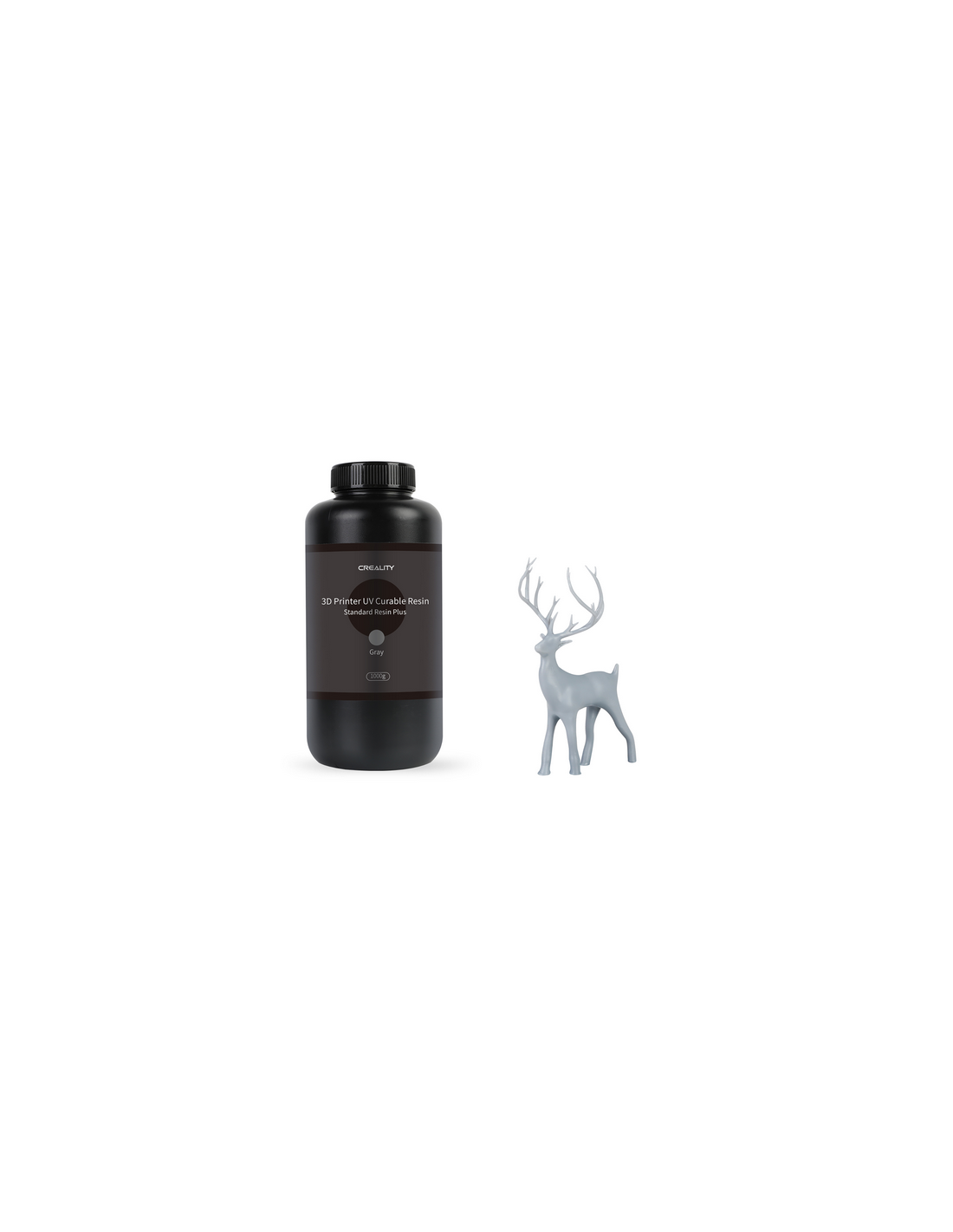

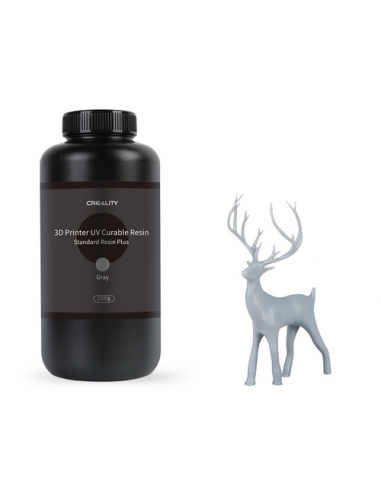

Creality LCD Standard Resin – Grey (1kg, 405nm UV Curing)

The Creality LCD Standard Resin in Grey is a high-precision photopolymer resin designed for detailed printing with excellent dimensional accuracy. Its neutral grey tone makes it ideal for prototypes, mechanical models, and parts where fine details and clean surfaces are required.

Technical Specifications

• Material: UV Photopolymer Resin (Rigid Standard)

• Colour: Grey, opaque

• Net Weight: 1kg bottle

• Gross Weight: 1.35kg (with packaging)

• Packaging Size: 290 × 110 × 110mm

• Applicable Wavelength: 405nm UV curing

• Density: ~1.14 g/cm³

• Viscosity: 300 – 400 cps at 25°C

• Tensile Strength (Cured): 60 – 68 MPa

• Surface Hardness (Post-Cure): 85 – 90 D (Shore)

• Impact / Notch Strength: ~7.5 kJ/m²

• Shrinkage Rate: 3.5 – 4.2%

• Layer Curing Speed:

  • 1–4 seconds (monochrome screen)

  • 7–15 seconds (colour screen)

Key Features

• Neutral grey tone ideal for design validation and prototype parts

• High rigidity and strength with excellent detail reproduction

• Smooth surface finish with minimal warping or shrinkage

• Fast curing speed for efficient model production

• Compatible with most 405nm LCD and DLP resin printers, including Creality HALOT series

• Low-odor, user-friendly formulation

Usage & Handling

• Shake thoroughly before use to mix resin evenly

• Store in a cool, dark place away from direct sunlight

• Post-cure under UV light for maximum hardness and durability

• Clean models with isopropyl alcohol (IPA) or a suitable resin cleaner

• Always wear gloves and protective gear when handling uncured resin

The Creality Grey Standard Resin is the go-to choice for engineers, designers, and makers who need high-accuracy prototypes and models with a professional matte finish.
