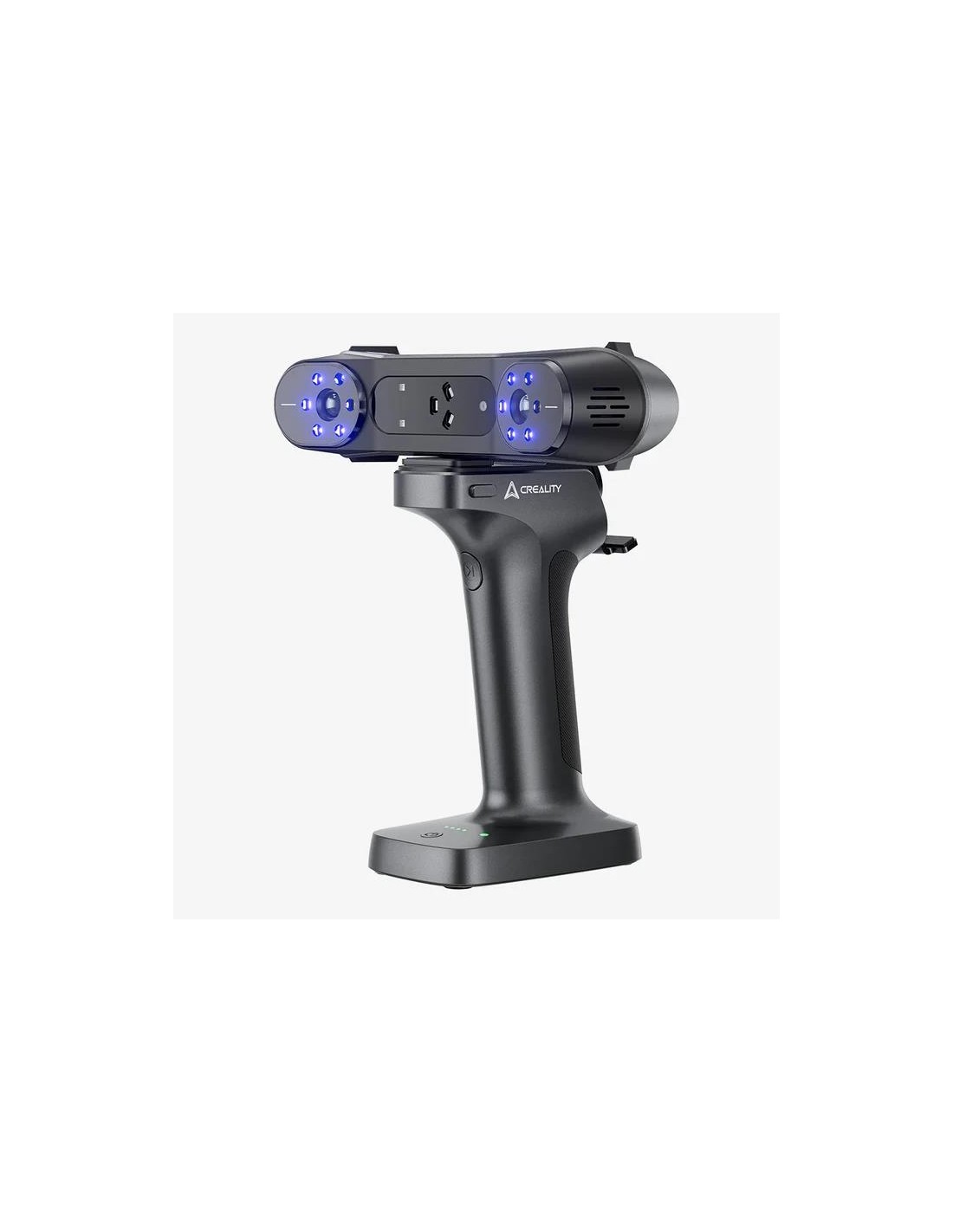

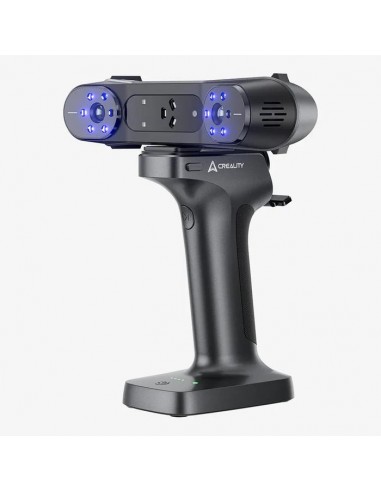

Creality CR-Scan Raptor X Professional Hybrid Blue Laser Scanner

The Creality Raptor X is the world’s first wireless hybrid 3D scanner that integrates blue laser and infrared (NIR) structured light technology. Built for professional-grade performance, it offers unmatched portability, precision, and scanning flexibility for a wide range of applications—from small components to large-scale objects.

Key Features

• Hybrid Scanning Technology: Combines 34 cross blue laser lines, 7 parallel blue laser lines, and infrared structured light.

• Accuracy: Metrology-grade accuracy up to 0.02 mm, with volumetric accuracy of 0.02 mm + 0.06 mm/m.

• Scan Range: Suitable for objects between 5 mm to 4000 mm in size.

• High-Speed Performance: Captures up to 1,020,000 points/second.

• Wireless Capability: Fully portable with Wi-Fi 6 (AX6000) for fast, low-latency data transfer.

• Battery: 35,400 mWh battery supports up to 4 hours of scanning, fast charging to 80% in 1.5 hours.

• Scan Materials: Supports scanning of black and metallic objects without the need for sprays.

• Software: Bundled with CrealityScan, a powerful scanning and editing tool compatible with popular 3D inspection and design software including Geomagic Control X, Design X, and Verisurf Inspect.

• System Support:

  • Windows 10/11 (64-bit): i7-Gen10+, 8GB+ VRAM GPU, 32GB+ RAM recommended

  • macOS 11.7.7+: Apple M1/M2/M3 series with 16GB+ RAM

Scanning Modes

• Full Object Mode: 34 cross laser lines for scanning vehicles, machinery, or molds.

• Partial HD Mode: 7 parallel laser lines and a 2.3 MP 3D camera for fine-detail scanning.

• NIR Mode: Ideal for scanning faces, hair, and human bodies; full scan in as little as 2 minutes.

• Outdoor Use: Blue laser scanning up to 100,000 lux light resistance.

Hardware Specifications

• Weight: 405g

• Laser Line Resolution: 0.1 mm

• Working Distance: 170 mm – 1000 mm

• Single Capture Range: Up to 665 mm × 574 mm @ 1000 mm

• Color Capture: 24-bit full-color scanning in all modes

• Lens: 9-element glass lens with large depth of field, low distortion, and metal barrel

Included Features

• Wireless Handle Support

• Real-Time Scanning Preview via Smartphone

• Magnetic Quick-Release System

• Anti-shake Stabilization

• Advanced Temperature Compensation

Applications

• Reverse Engineering

• Industrial Inspection

• Automotive & Aerospace

• Manufacturing

• Heritage & Artwork Digitization

Notes

• Smartphone wireless scanning support will be available from December 2024.

• For detailed specs and updates, visit the official knowledge base: Creality Wiki at creality.com.
