Creality Otter lite Scanner

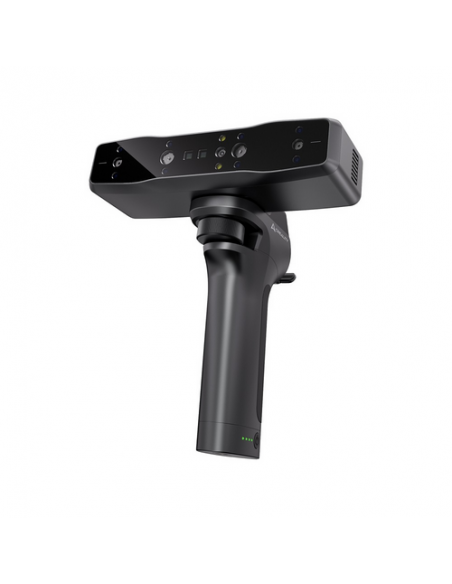

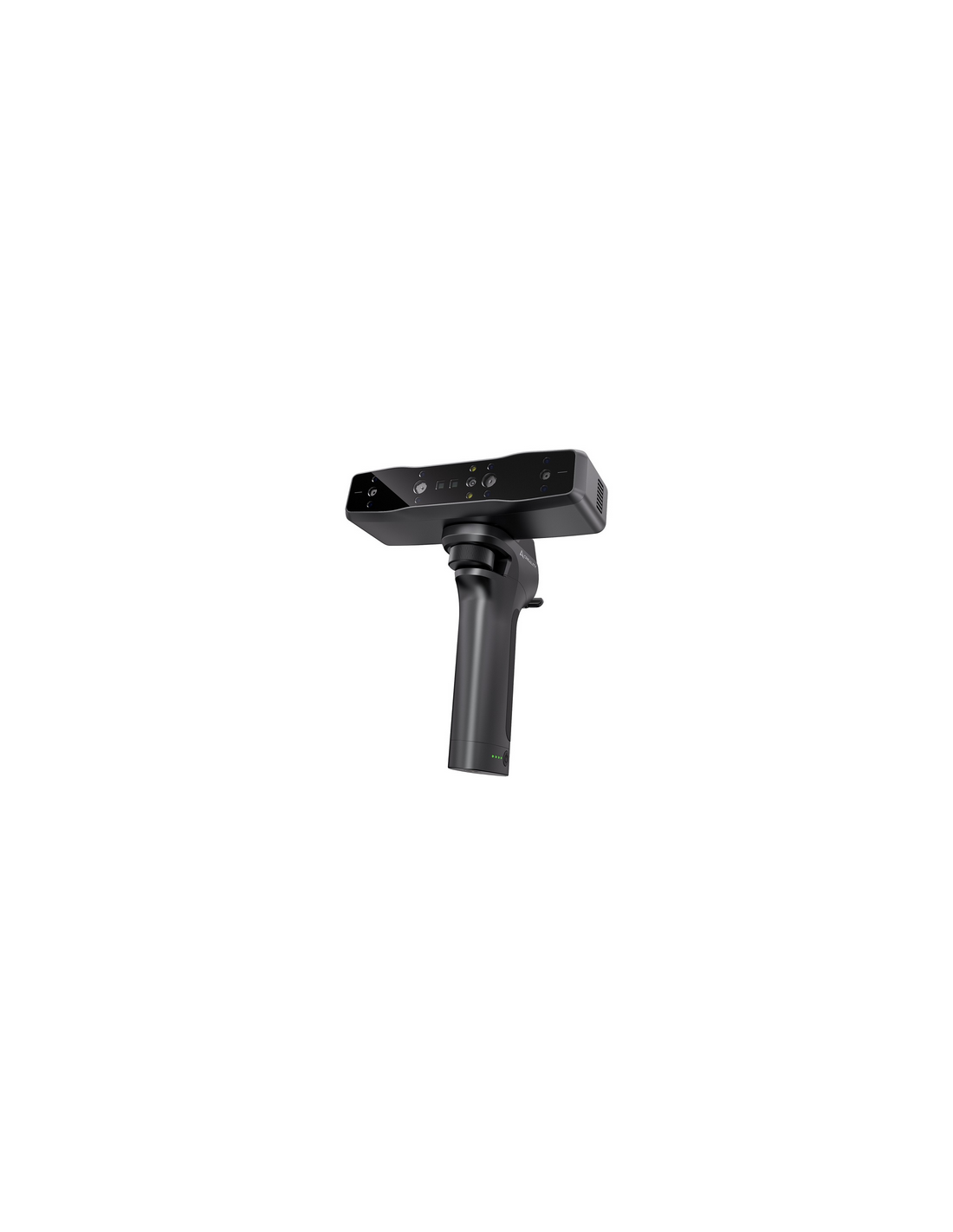

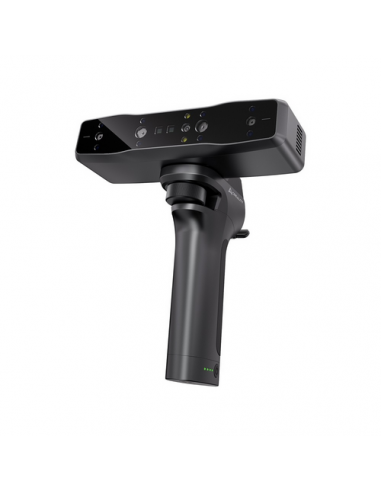

Creality Otter Lite 3D Scanner – High-Precision Wireless Structured-Light Scanning

The Creality Otter Lite 3D Scanner is a professional-grade handheld 3D scanning solution designed for accurate, fast, and portable digital capture. Using advanced NIR (infrared binocular structured-light) technology, the Otter Lite converts real-world objects into highly detailed 3D models with exceptional precision — making it ideal for product design, reverse engineering, education, prototyping, and 3D printing.

With wireless scanning support, a lightweight design, and wide capture range, the Otter Lite allows you to scan both small detailed objects and large real-world items with ease.

Key Features

High-Precision Structured-Light Scanning
Captures fine surface detail with accuracy up to 0.05 mm, ensuring realistic and dimensionally accurate digital models.

Wide Scanning Range
Supports objects from 20 × 20 × 20 mm all the way up to 1.46 m in size, making it suitable for miniatures, mechanical parts, sculptures, furniture, and more.

Wireless Scanning
Built-in wireless capability allows cable-free scanning for maximum freedom and portability.

Dual Scan Modes
Close-range and long-range capture modes adapt automatically to the size of the object being scanned for optimal data quality.

Lightweight & Portable
The main scanner weighs only 300 g, making it comfortable to use for extended scanning sessions.

Stable Infrared Capture
NIR structured light is less affected by ambient lighting, enabling more stable scanning in different environments.

Optimised for 3D Printing & CAD
Produces high-quality scan data that is ideal for reverse engineering, inspection, modelling, and 3D printing workflows.

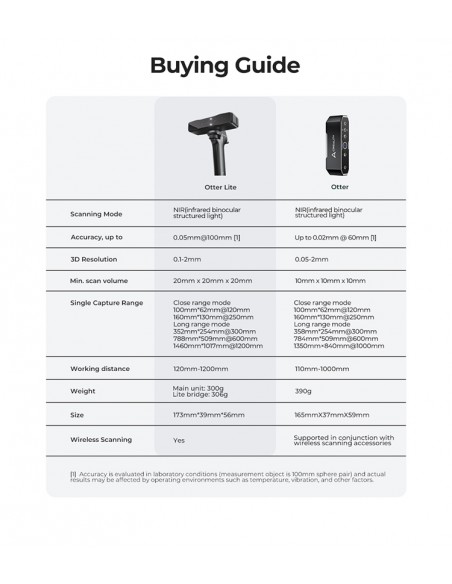

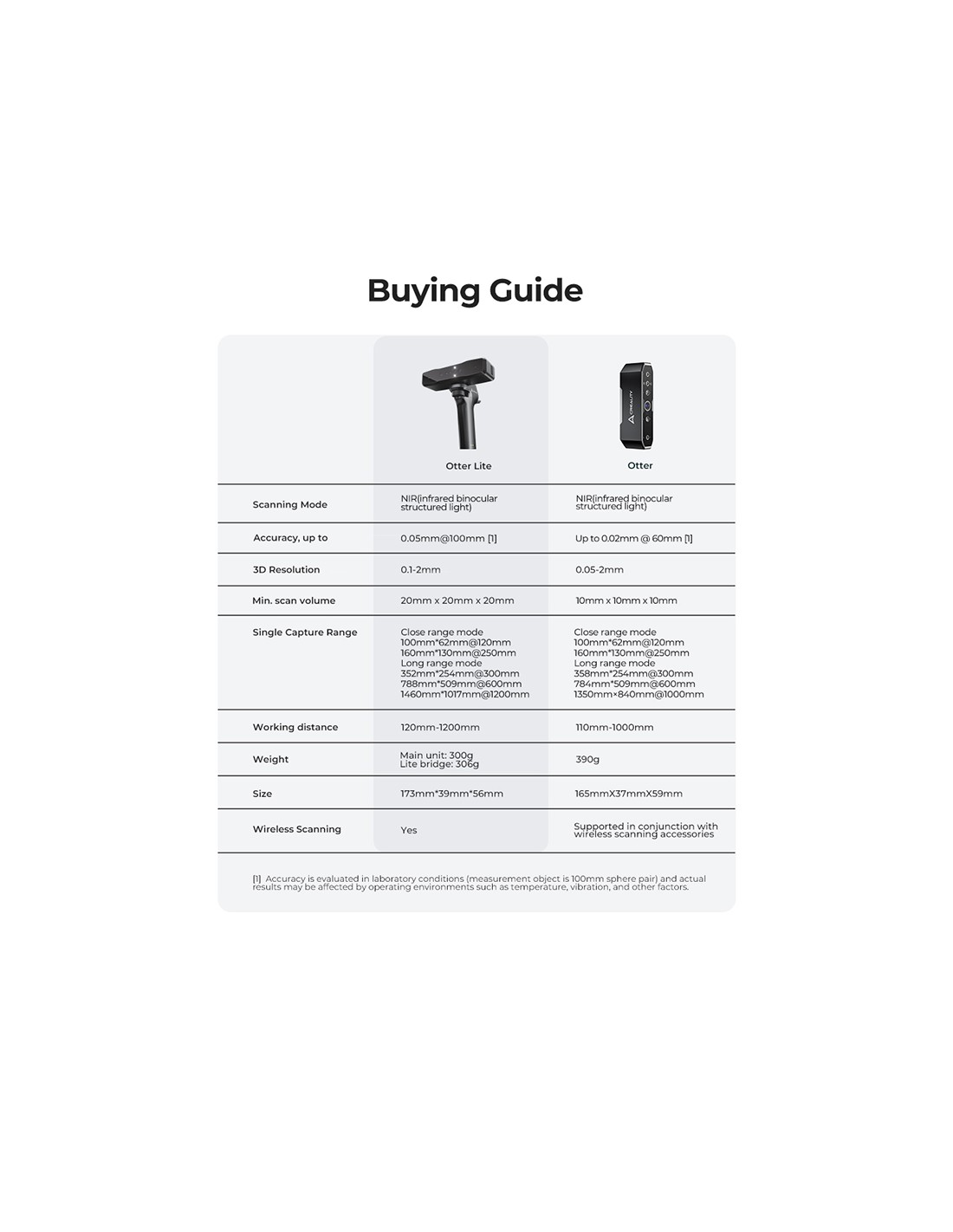

Technical Specifications

Scanning Technology:
NIR (Infrared Binocular Structured Light)

Accuracy:
Up to 0.05 mm @ 100 mm

3D Resolution:
0.1 – 2.0 mm

Minimum Scan Volume:
20 × 20 × 20 mm

Working Distance:
120 mm – 1200 mm

Single Capture Range – Close Mode:
• 100 × 62 mm @ 120 mm
• 160 × 130 mm @ 250 mm

Single Capture Range – Long Mode:
• 352 × 254 mm @ 300 mm
• 788 × 509 mm @ 600 mm
• 1460 × 1017 mm @ 1200 mm

Wireless Scanning:
Yes

Weight:
Main unit: 300 g
Lite bridge: 306 g

Size:
173 × 39 × 56 mm

Why Choose the Creality Otter Lite

The Creality Otter Lite is built for users who need high-accuracy scanning in a portable format. Whether you are capturing small mechanical parts or large real-world objects, its 0.05 mm accuracy, wide working distance, and wireless operation make it a powerful tool for engineers, designers, educators, and makers.

It is especially well suited for 3D printing, reverse engineering, digital archiving, inspection, and product development, providing fast and reliable digital capture with minimal setup.
