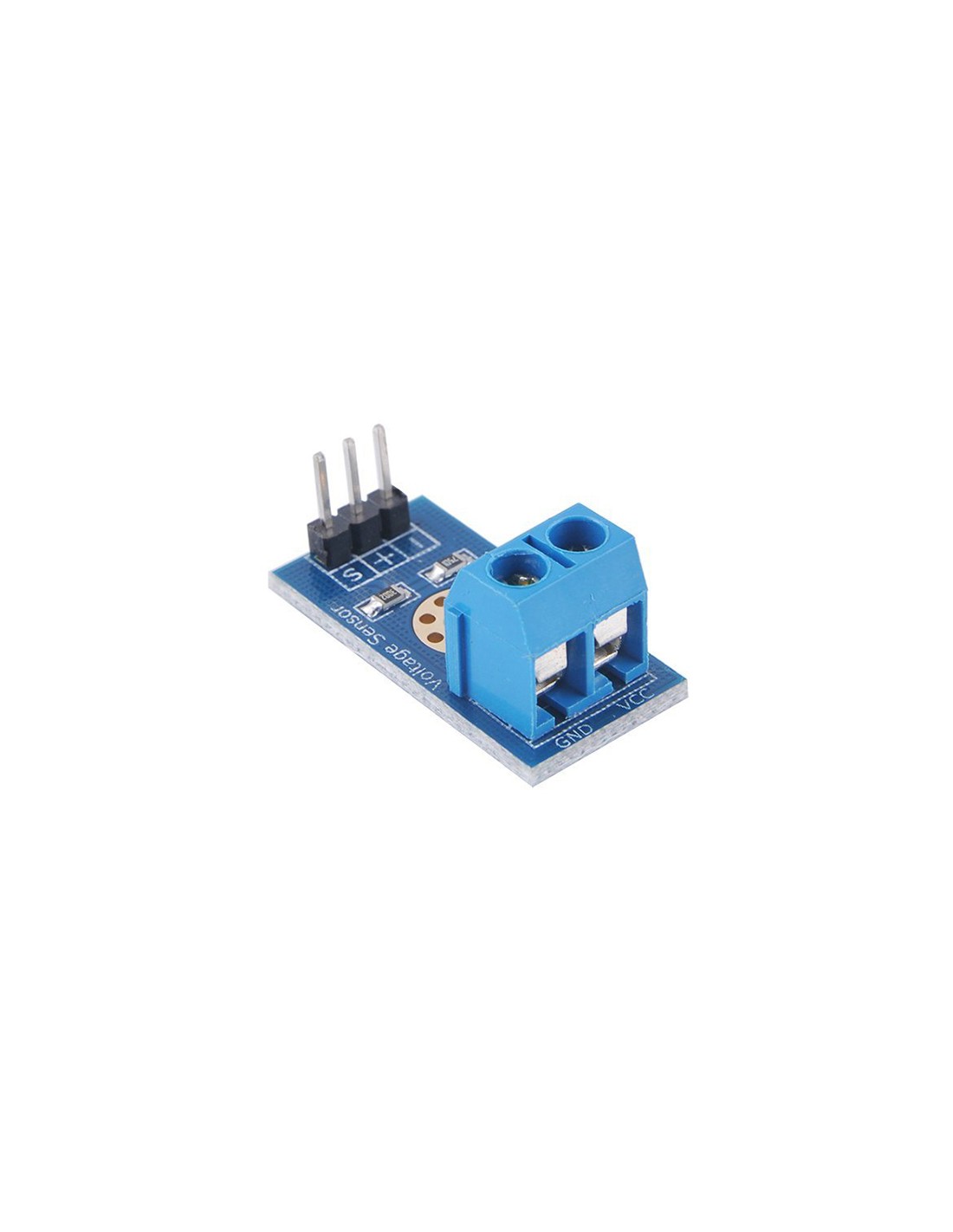

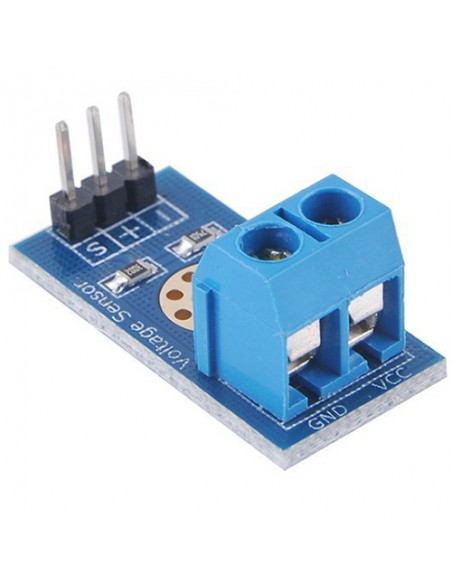

Voltage Divider / Sensor For Arduino

A voltage Sensor is a precise low-cost sensor for measuring voltage.
SEN-00235
Last items in stock
R15.52
Tax included
3 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

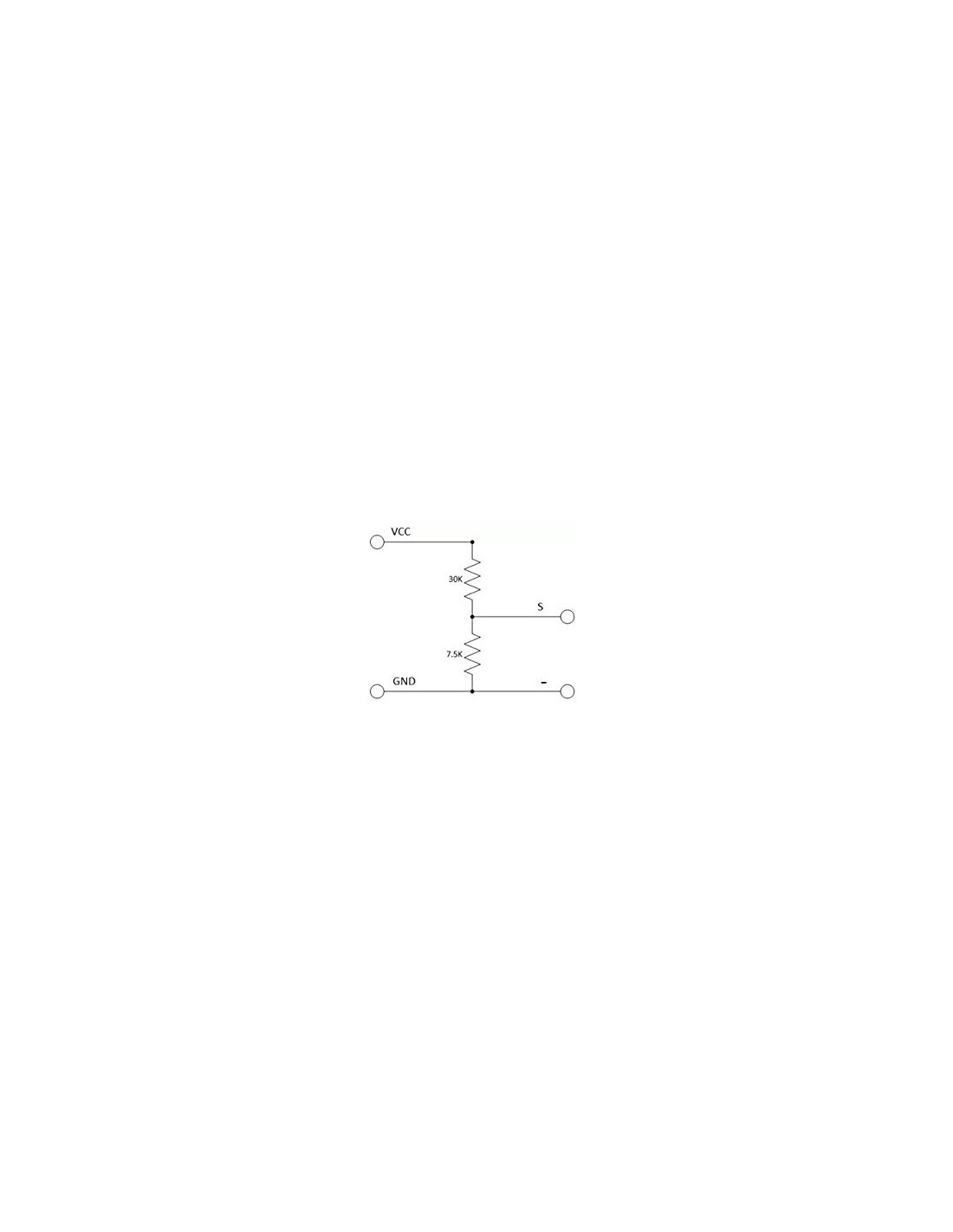

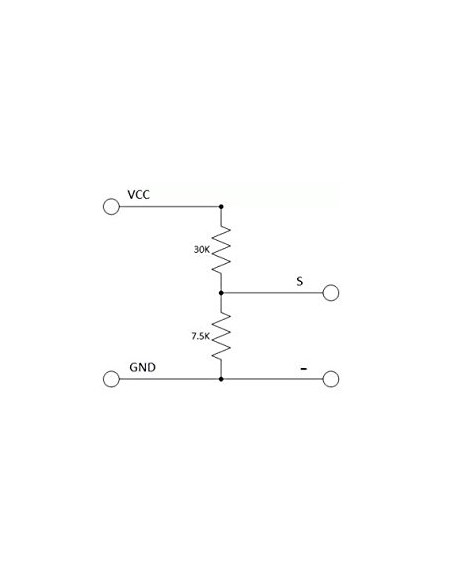

The Voltage Sensor is basically a Voltage Divider consisting of two resistors with resistances of 30KΩ and 7.5KΩ i.e. a 5 to 1 voltage divider. Hence the output voltage is reduced by a factor of 5 for any input voltage

Voltage input range: DC0-25V
Voltage detection range: DC0.024 45V-25V
Voltage Analog Resolution: 0.00489V
DC input connector: Terminal cathode connected to VCC, GND negative pole

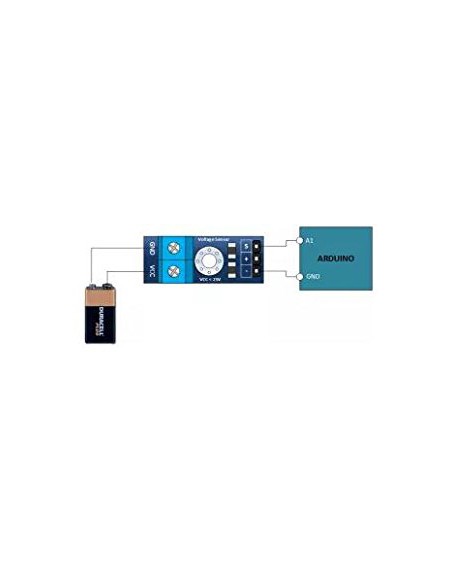

Output interface:
+ 5V or 3.3V
- GND
S Arduino AD pins
