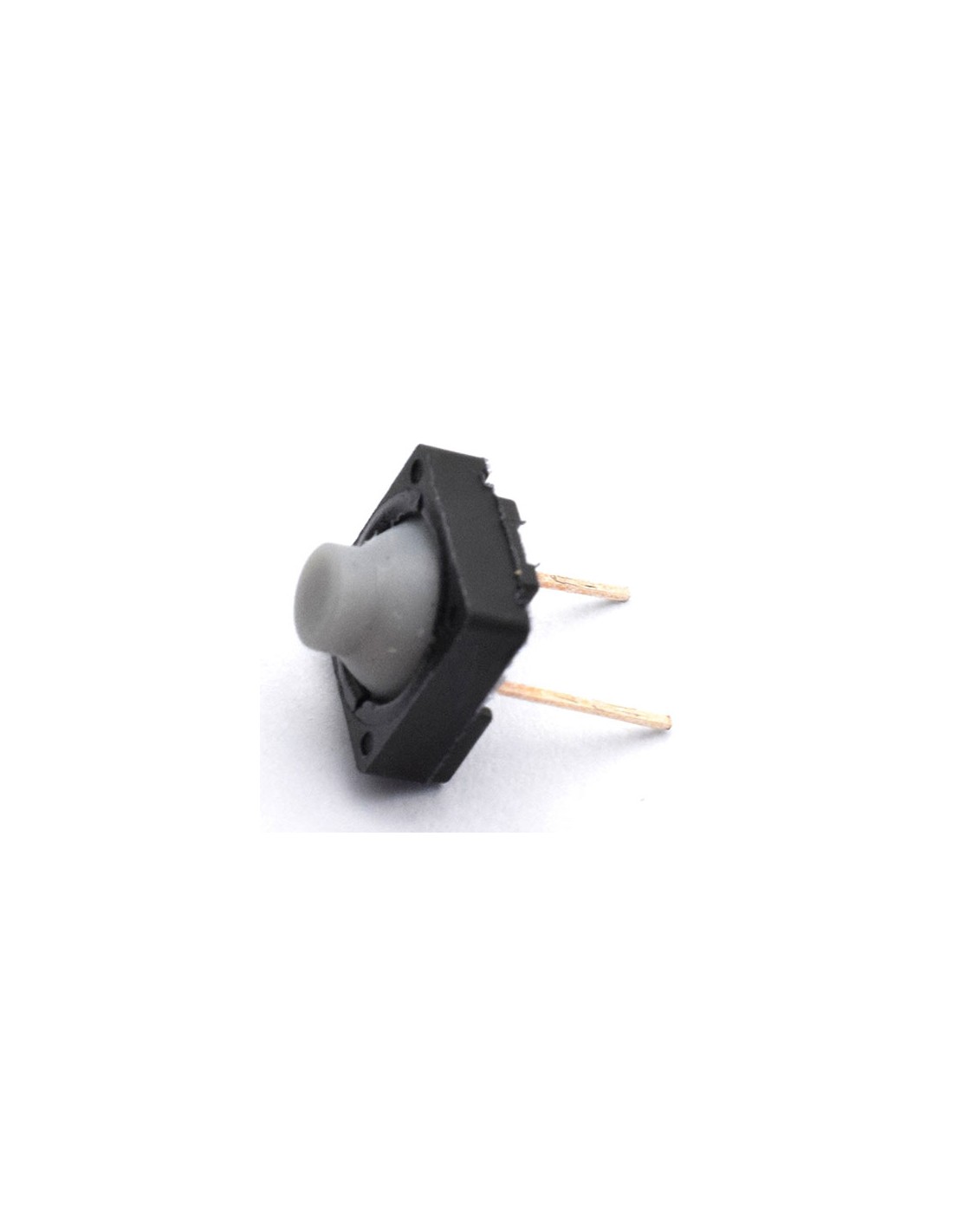

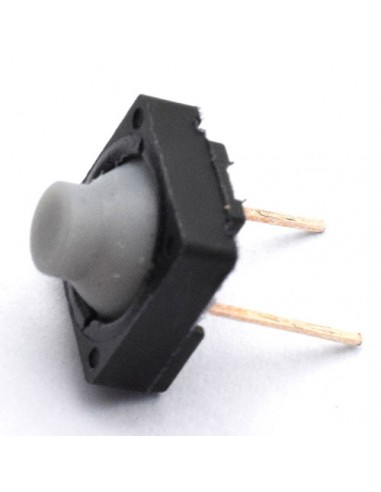

8x8x5mm Tact Switch – 2 Pin Silent Silicone Push Button

The 8x8x5mm Tact Switch is a compact, high-quality push button designed for smooth and silent operation. With its silicone top, this switch provides a soft, noise-free press, making it ideal for projects where quiet operation is essential. The 2-pin design ensures easy integration into circuits, whether for DIY electronics, robotics, or repair applications.

Key Features:

• Silent Operation: Soft silicone button ensures a smooth and quiet press.

• Compact Size: 8mm x 8mm footprint with a 5mm height – perfect for space-constrained projects.

• Durable Build: Reliable tactile feedback with long operating life.

• Easy Mounting: 2-pin through-hole design for quick soldering onto PCBs or protoboards.

• Versatile Use: Great for control panels, keypads, DIY projects, and electronic repairs.

Technical Specifications:

• Switch Type: Momentary tactile push button

• Dimensions: 8mm x 8mm x 5mm

• Pins: 2 pin (through-hole)

• Material: Silicone button cap with plastic housing

• Operating Force: ~160–250g (typical)

• Rated Voltage: DC 12V

• Rated Current: 50mA

• Contact Resistance: ≤100mΩ

• Insulation Resistance: ≥100MΩ

• Mechanical Life: Up to 100,000 cycles

Applications:

• DIY electronics and hobby projects

• Silent control buttons for consumer electronics

• Robotics and Arduino projects

• Repair or replacement in keypads and controllers
