L298N Stepper Motor Driver Board - Dual-H Bridge

MEC-00162
In Stock
R68.00
Tax included
30 Items

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Application:

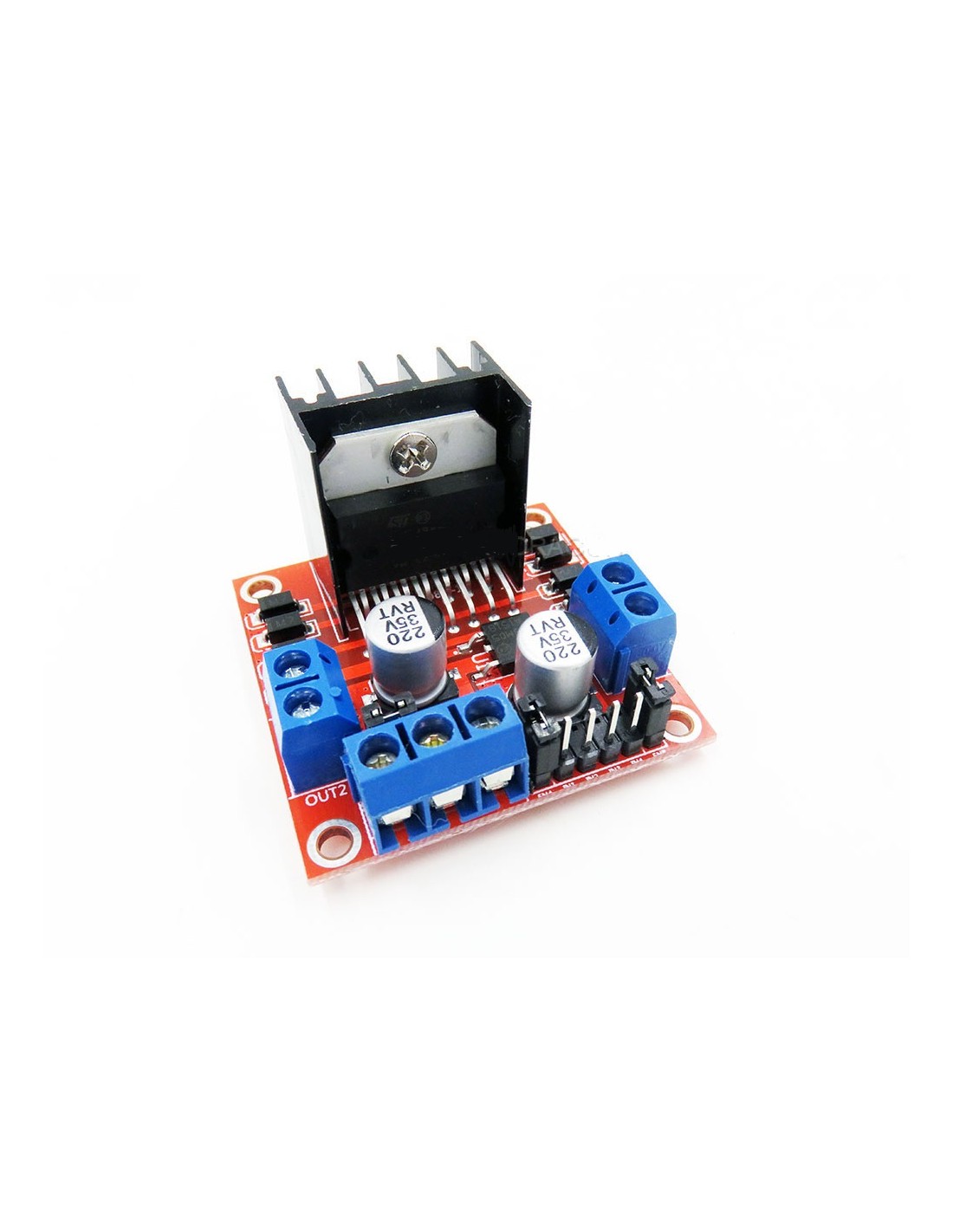

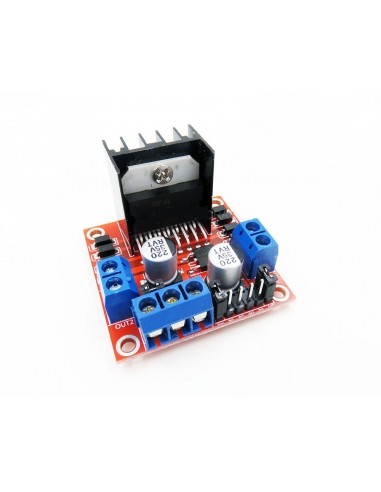

This is the common L298N Motor Driver, designed for driving a 2 DC Motors for Robot Cars or a single Stepper motor.
It uses ST's L298N chip as the main driver which is a well known chip in the industry for motor drivers.
The breakout board itself has a built in 78M05 voltage regulator as well as filter capacitors and diode protection to stop back EMF when the car or robot is freewheeling.

Specifications:
Driver Type: Dual H-bridge.
Master chip: L298N
Logic voltage: 5V
Driving voltage: 5V-35V
Logic Current: 0mA-36mA
Drive current: 2A (MAX single bridge)
Storage temperature: -20 to + 135
Maximum power: 25W
Weight: 30g
Size: 43 x 43 x 27mm

Please remember if you're driving with voltage higher than 12V to please always use 5V Logic.

When using the driver to drive stepper motors - It can be done in the following way:
Pin EN can be used as a PWM to control the steps
Pin IN1 and IN2 can be used for controller the stepper direction.

Common pinouts for Robot Cars with 2 DC Motors can be done in this manner:

Projects and Documentation:

Control DC Motors + Stepper motors using the L298N
