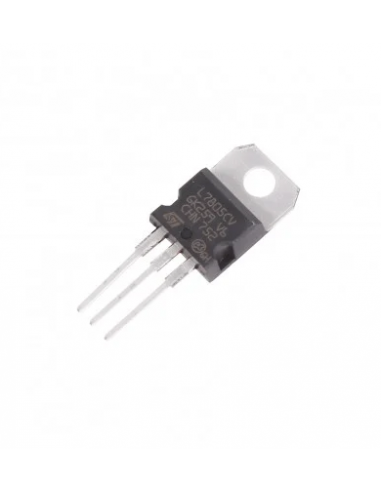

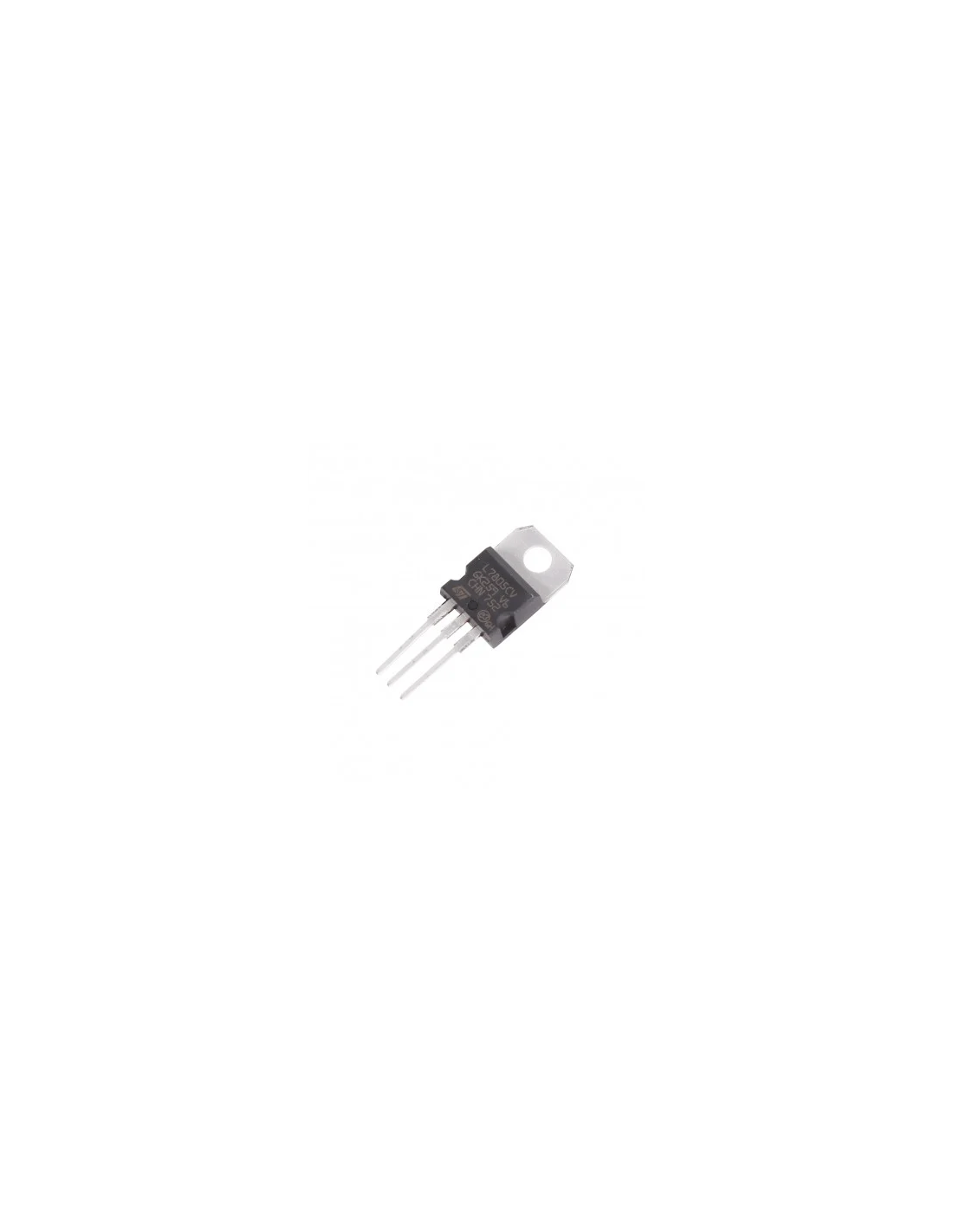

Introducing the L7805CV Linear Voltage Regulator – your ultimate solution for achieving a stable 5V output in your electronic projects. Crafted by STMicroelectronics, this regulator is designed to provide reliable voltage regulation with a maximum output current of 1.5A, ensuring compatibility with a wide array of low-power devices. Let's delve into the details:
Overview:
The L7805CV Linear Voltage Regulator is your go-to tool for taming those elusive electrons, allowing you to convert high incoming voltages into a fixed 5V output. Whether you're working with development boards, sensors, or other low-power electronics, this regulator ensures consistent performance, making it indispensable for hobbyists and professionals alike.
Key Features:
- Fixed 5V Output: Delivers a steady 5V output, perfect for devices operating on the ubiquitous 5V standard, such as those compliant with USB specifications.
- High Output Current: Capable of handling up to 1.5A of current, providing ample power for a variety of applications.
- Advanced Protection Features: Equipped with thermal overload protection, output transition SOA protection, and an integrated current limiter, safeguarding both the regulator and other components in your circuit from unexpected current spikes or excessive loads.
- Compact Design: With a TO-220 package type and through-hole mounting style, installation is a breeze.
- Wide Operating Temperature Range: Designed to operate reliably in temperatures ranging from 0°C to +125°C, ensuring versatility in various environments.
Technical Specifications:
- Manufacturer: STMicroelectronics
- Model No.: L7805CV
- Max Input Voltage: 40V
- Output Voltage (Fixed): 5V
- Max Output Current: 1.5A
- No. of Outputs: 1
- Polarity: Positive
- Typical Dropout Voltage @ Current: 2V @ 1A
- Quiescent Current Draw: 8mA
- Protection Features: Thermal Overload Protection, Output Transition SOA Protection, Integrated Current Limiter
- Load Regulation: 100mV
- Line Regulation: 100mV
- No. of Pins: 3
- Mounting Style: Through Hole
- Package Type: TO-220
- Safe Operating Temperatures: 0°C to +125°C
- Dimensions: 15.75 x 10.4 x 4.6mm
Upgrade your electronics projects with the reliability and precision of the L7805CV Linear Voltage Regulator. Experience stable voltage regulation and enhanced protection for your circuits, empowering you to tackle a diverse range of electrical endeavors with confidence.
