USB Logic Analyzer 24 MHz 8-Channel

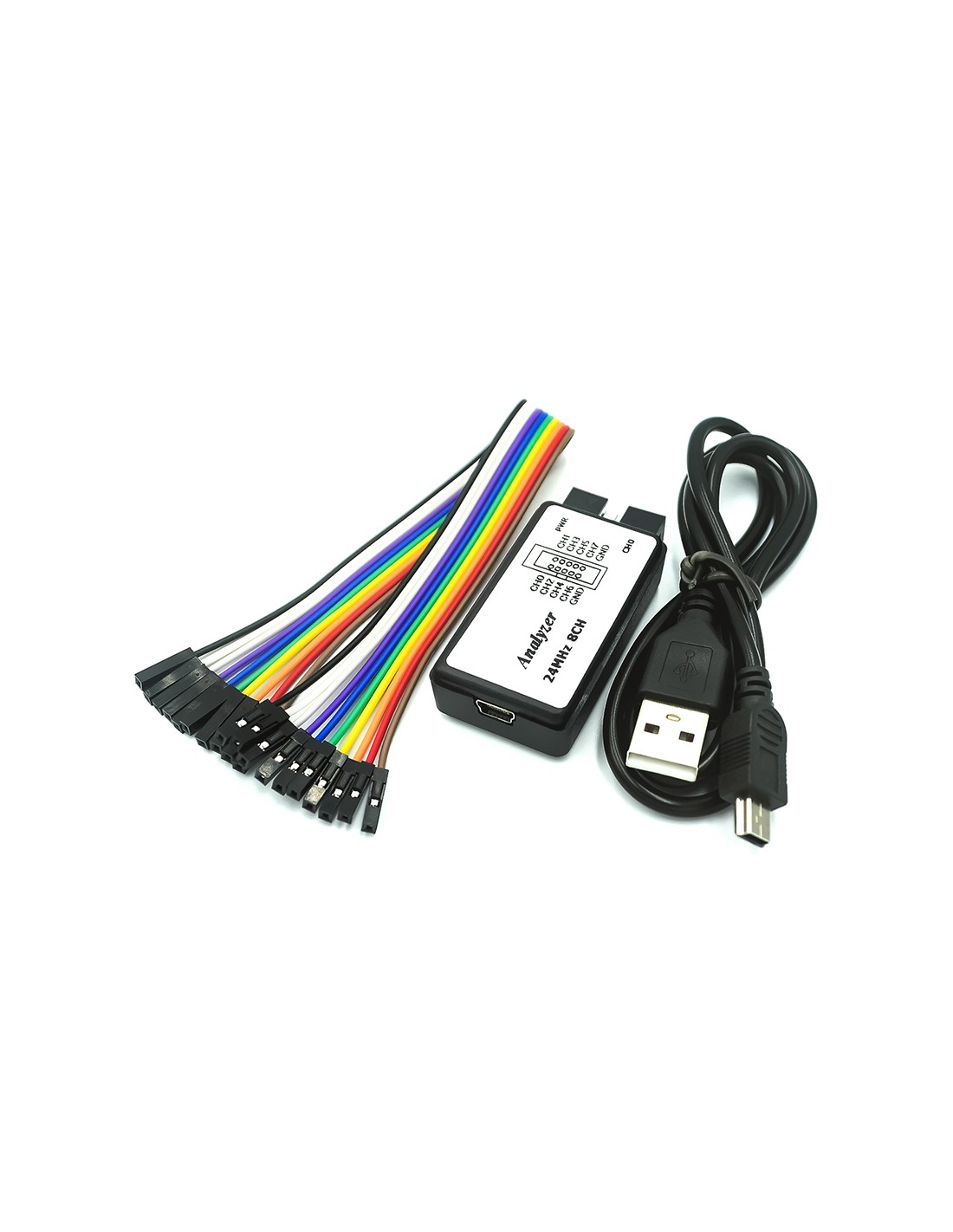

The USB Logic Analyzer 24 MHz 8-Channel is a compact and powerful diagnostic tool designed for capturing, decoding, and analysing digital signals in embedded and electronic systems. Compatible with Saleae Logic software (v1.1.15) and open-source sigrok, this logic analyzer provides a cost-effective solution for debugging communication protocols and digital circuits.

With support for up to 8 simultaneous input channels and a maximum sampling rate of 24 MHz, this device allows accurate signal capture across a wide range of logic speeds. The built-in buffer chip improves signal stability and reliability, making it suitable for professional debugging as well as hobbyist and educational use.

The analyzer connects directly to a computer via USB and is USB-powered, eliminating the need for an external power supply. Its compact size makes it ideal for lab benches, portable toolkits, and field diagnostics.

Key Features

• 8 digital input channels

• Sampling rate up to 24 MHz (configurable down to 20 kHz)

• Integrated buffer chip for improved signal integrity

• Saleae Logic software compatible (v1.1.15)

• Supports sigrok / PulseView open-source software

• USB powered and plug-and-play

• Compact and portable design

Technical Specifications

• Channels: 8

• Maximum sampling rate: 24 MHz

• Minimum sampling rate: 20 kHz

• Maximum input voltage: 5.25 V

• Logic high level (min): 2.0 V

• Logic low level (max): 0.8 V

• Input impedance: >100 kΩ

• Input capacitance: 5 pF

• Power supply: USB

• Software support:

  • Saleae Logic (v1.1.15)

  • sigrok / PulseView

• Operating systems:

  • Windows

  • macOS

  • Linux

  • Android

Typical Applications

• Debugging digital circuits

• Microcontroller and embedded system development

• Protocol analysis (UART, SPI, I²C, etc.)

• Arduino, ESP32, Raspberry Pi projects

• Electronics education and training

The USB Logic Analyzer 24 MHz 8-Channel offers professional-grade signal analysis in a compact and affordable form factor, making it an essential tool for engineers, developers, students, and electronics enthusiasts.
