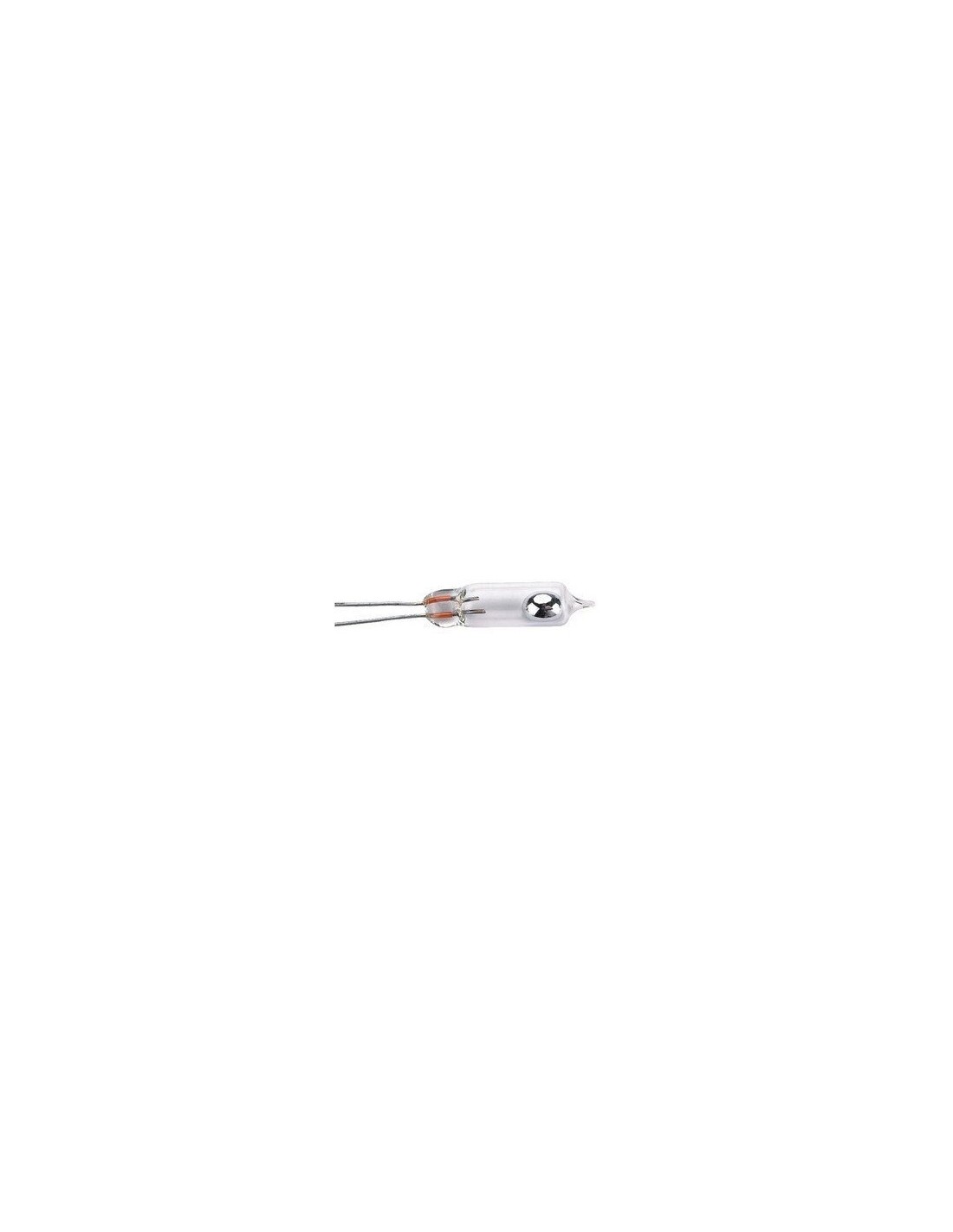

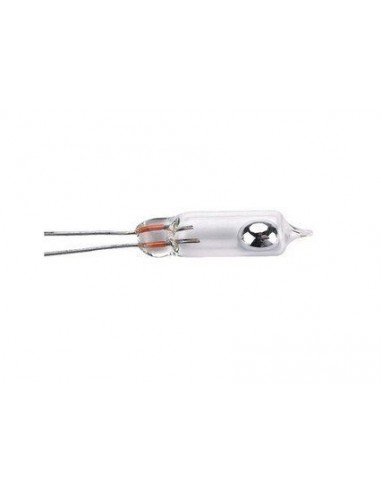

Mercury Switch 2 Pack  (One-Direction)
Mercury Switch 2 Pack  (One-Direction)

Mercury Switch 2 Pack (One-Direction)

Mercury Switch Tilt Sensor Angle Sensor.
TOO-00050
Last items in stock
R25.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

The Mercury switch can place and solder on PCB board, when the board is place horizontally the mercury in the switch keep the circuit connected, and when you tilt it the connection will disconnect.
When both electrodes are touched simultaneously by the mercury the switch is closed.
Can be used under extreme condition as the switch is sealed in glass isolating the mercury from external sources so can be used in oil, steam, dust and corrosive gas situations.
Voltage: 20V
Current: 0.3A
Operating temperature: - 40℃ ~ +300℃
Working angle: 5° ~ 10°
Contact resistance : Less than 0.02Ω
Long-term reliablity
Noiseless electrode contact
Corrosion resistant contacts
Sold in packs of 2.

Product Details

4 Items
