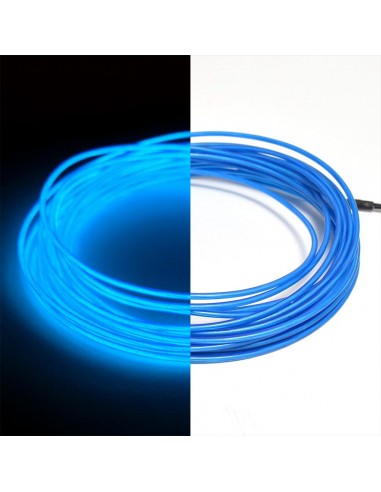

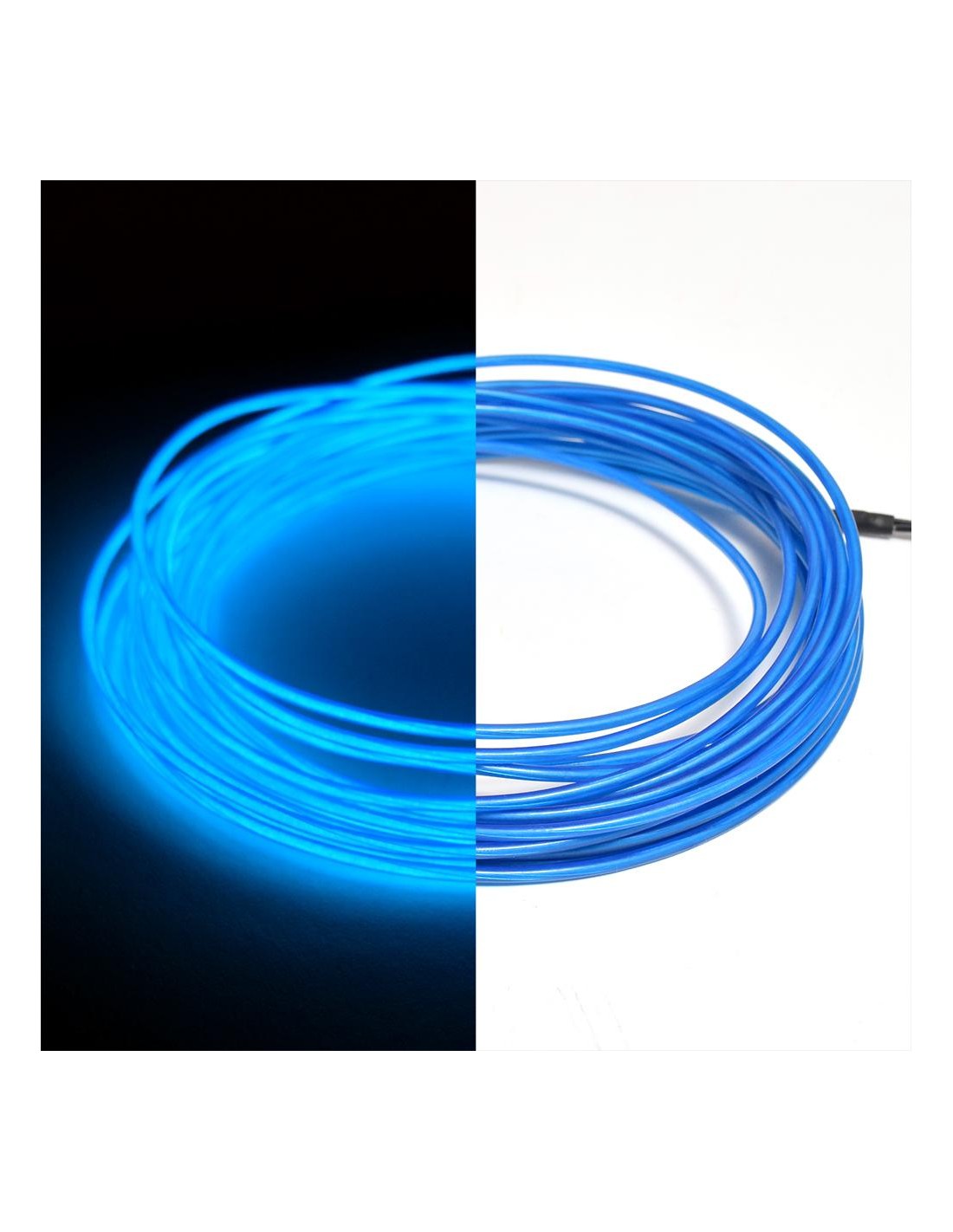

EL Wire - Blue (per meter)

EL Wire - Blue (per meter)

Electroluminescent wire is a thin copper wire coated in a phosphor that produces light through electroluminescence when an alternating current is applied to it.
COM-00466
Out-of-Stock
R30.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

This is a EL wire in custom lengths, sold per meter with high-brightness and long-life EL wire. The brightest and best looking EL color we could find for you. You need an inverter to drive the EL light.

* PLEASE NOTE: EL tape, EL wire and EL panel are made with different processes - the color and brightness will not be consistent between the different types of EL products.



NOTE: You would need to purchase a EL Wire Male Plug as it does not come with it.


Features:
Can be bent, paste or hang up, can be made into any shape and length so it is very easy and convenient to install and use.
Low power consumption (cold light, 97% electricity converted into light, no heat loss), no UV, soft light,environmental friendly materials.
The light radiation at night is extremely bright, eye-catching.
Ultrathin, lightweight, easy to use for production and construction of everything.

Specifications:
Operating Voltage: 20 ~ 220V
Optimum Operating Voltage: 120V
Operating Frequency: 50 ~ 5000Hz
Optimum Operating Frequency :1500-2000Hz
Static Capacitance: 6nf / m (20 ° C, the RH <80%)
Brightness: (at 120V, 200Hz ~ 2000Hz) 30cd/m2 ~ 126 cd/m2
Power: (at 120V, 200Hz ~ 2000Hz)108mw / m ~ 1032mw / m
Light life: (at 100V, 400Hz) normal temperature and humidity, approximately 8000 hours
Operating Temperature / Humidity: -10 ° C ~ +60° C; RH <90%
Storage Temperature / Humidity: -10 ° C ~ +60 ° C; RH <65%
Thickness: 2.3mm



You need an inverter to power the EL wire. Here are some options.



Inverter:

0 - 5 meters Pocket Inverter

EL USB Inverter

12V EL Inverter (30 meters)

12V EL Inverter (20 meters)



EL Wire Splitters:

EL Wire 3 Way Splitter

EL Wire 5 Way Splitter
