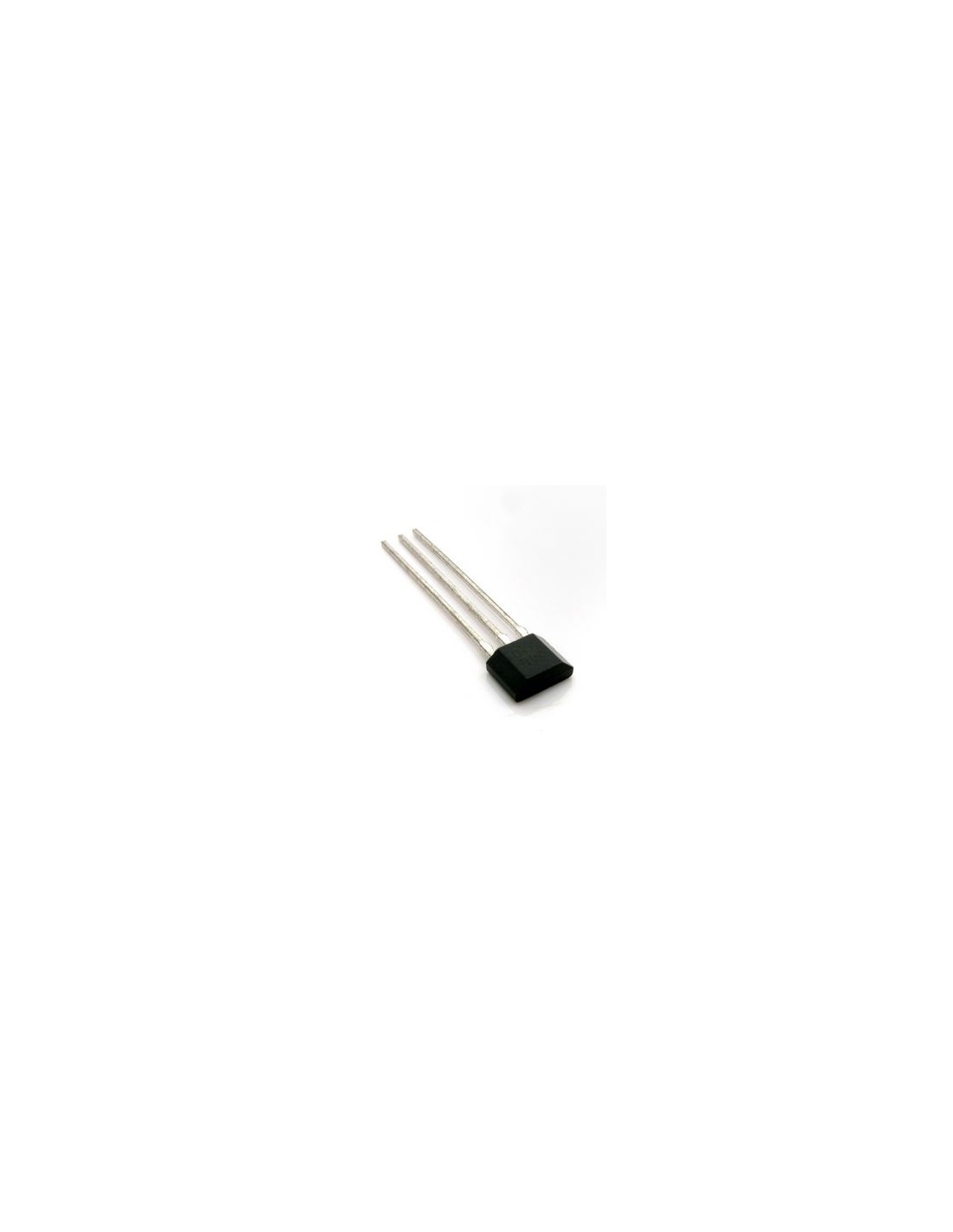

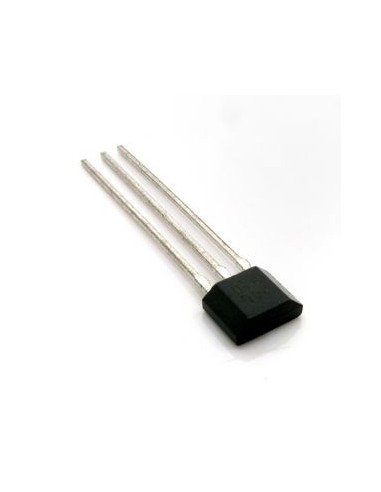

The A3144 is an integrated Hall effect latched sensor. Holding a magnet near the sensor will cause the output pin to toggle. This makes for a robust presence sensor. A reed sensor also works nicely, but can be limited by the glass encapsulation and size. A hall effect sensor is much smaller, but can handle less current than a reed switch.
The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.
If a magnetic flux density larger than the threshold, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).
- Superior temperature resilience. Suitable for automotive or industrial applications
- 4.5 V to 24 V Operation
- Open-Collector 25mA output
- Reverse battery protection
- Activate with small, commercially available permanent magnets
- Solid-State reliability
- Small size
- Resistant to physical stress
