Product Description
Easy, simple, high efficiency and safe. This is the USB version.

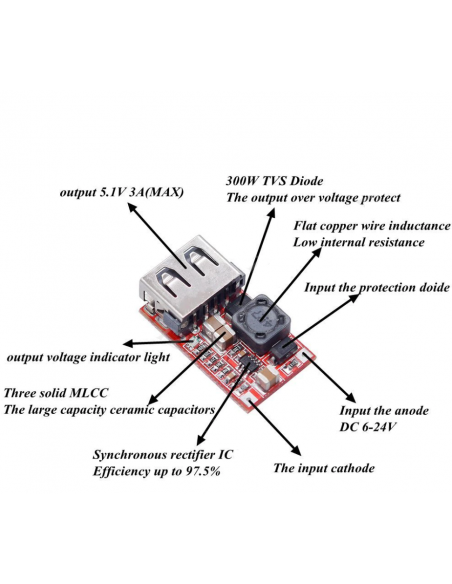

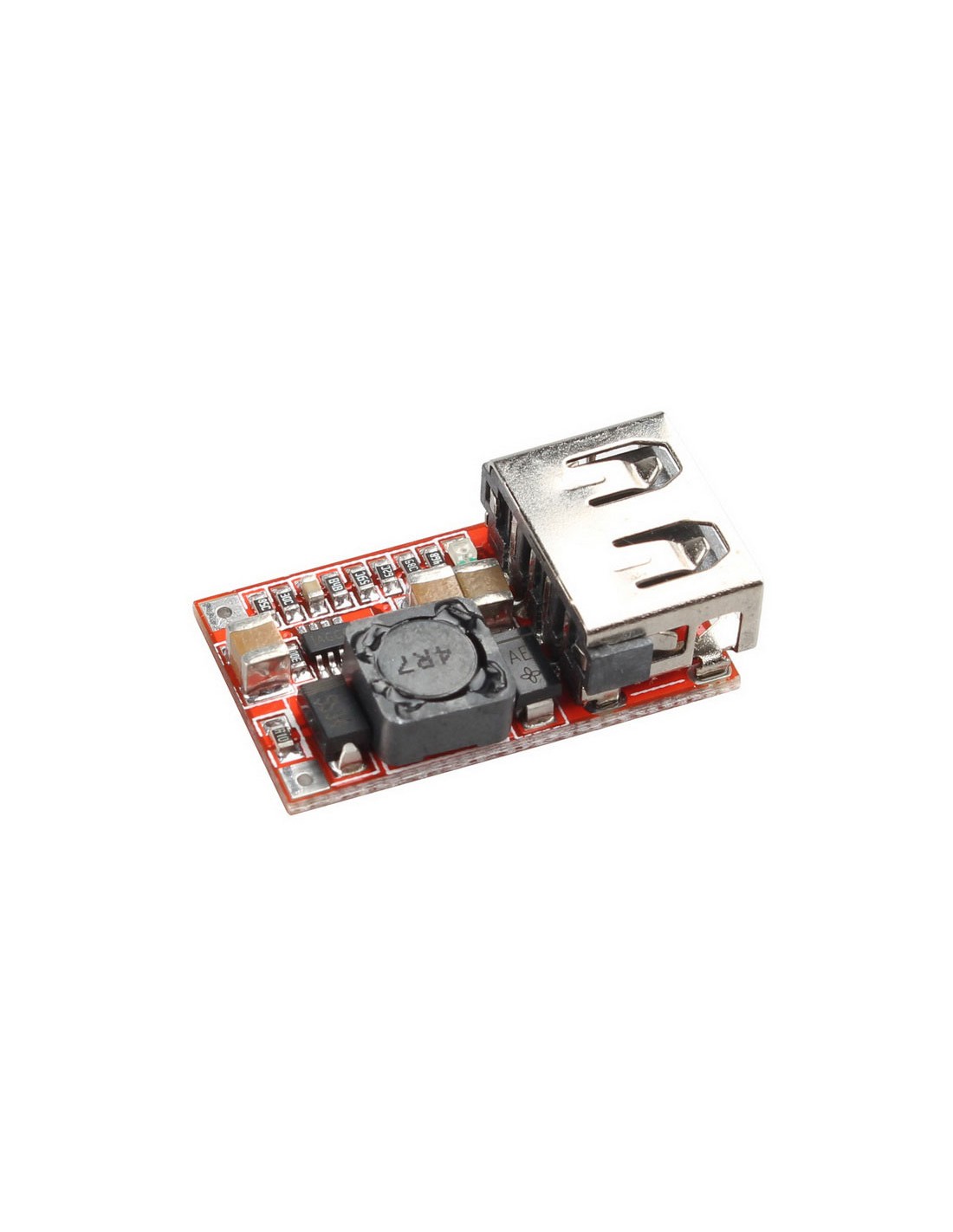

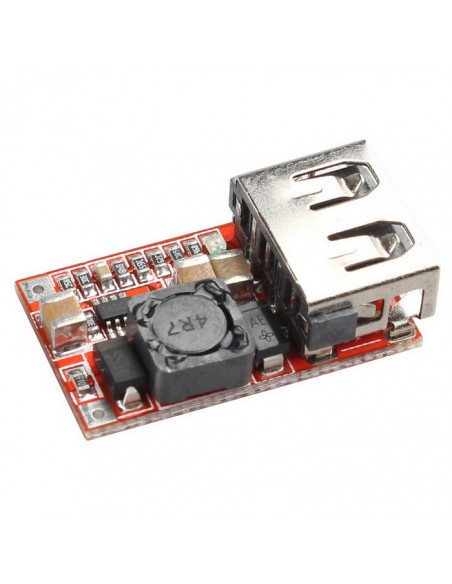

Board Features:
- The maximum output current of 3A, 2.1A long run, sufficient margin.
- Using a new design, circuit design does not require electrolytic capacitors and tantalum capacitors (electrolytic capacitor life is short, tantalum capacitors have the risk of explosion). Using the current high-end circuit with large-size solid-state ceramic capacitors (MCC) 3pcs.
- Ripple is very low, 12V to 5V 3A only 10 mV or so, a lot of ripple rivals have reached 500 mV or greater, the equipment will cause an invisible injury, serious equipment will cause abnormal or damaged, IPHONE Very delicate.
- The new solution uses synchronous rectification, the circuit conversion efficiency is very high, in the 6.5V to 5V0.7A when the efficiency of up to 97.5%, 12V to 5V1A also reached 94%, unlike some efficiency of only 60-70% peers. (The efficiency test removes the voltage drop across the input reverse-polarity protection diodes and fuses).
- Use of flat copper inductors, to maximize the conversion efficiency. Reduce heat.
- The first with output over-voltage protection, input 1.5A fuse, output 5V 300W TVS tube over-voltage clamp protection to protect USB devices are now peer USB buck module are not over-voltage protection, the USB device There is a very large security risk, think about it put it on your iphone or other phones
- Using the latest USB identification circuit, perfectly compatible with IPHONE, the vast majority of android mobile phones, IPAD.
- Short gold-plated edge USB, long life, a normal USB interface can match.
- Output voltage indicator (red)Ultra – small size, 26.4 (L) * 15 (W) * 7.4 (H) mm.
- Input with a reverse polarity protection diode, input positive and negative polarity will not be damaged, (OUR test efficiency ignores the input diode and fuse voltage drop)
- Ultra-low quiescent current, quiescent current 0.85 mA. Connect to the car battery without adding the switch, you can connect the cigarette lighter line, or ACC power line.
Board Specifications:
- Input voltage: DC 6-24V, Output voltage: 5.1-5.2V
- Output current: maximum 3A (full load, please pay attention to heat), the actual test input 12V output 2A no special treatment within the cooling.
- Conversion efficiency: up to 97.5% (6.5 to 5V 0.7A) (short-circuit reverse polarity protection and fuse after the test value)
- Switching frequency: 500KHz
- Output ripple: 10mV or so (12V to 5V3A) 20M bandwidth
- Output indication: The output voltage indicator is red
- Operating temperature: industrial (-40 ℃ to + 85 ℃) (the higher the ambient temperature, the smaller the output power)
- Output overvoltage protection: yes, input 1.5A fuse, output 5V 300W TVS tube clamp protection.
- Full load temperature rise: 30 ℃
- Quiescent Current: 0.85 mA
- Load regulation: ± 1%
- Voltage regulation: ± 0.5%
- Dynamic response speed: 5% 200uS
- Output short-circuit protection: Yes, do not short-circuit for a long time
- Input reverse polarity protection: Yes, input reverse polarity protection diode
- Price is for one unit only.
