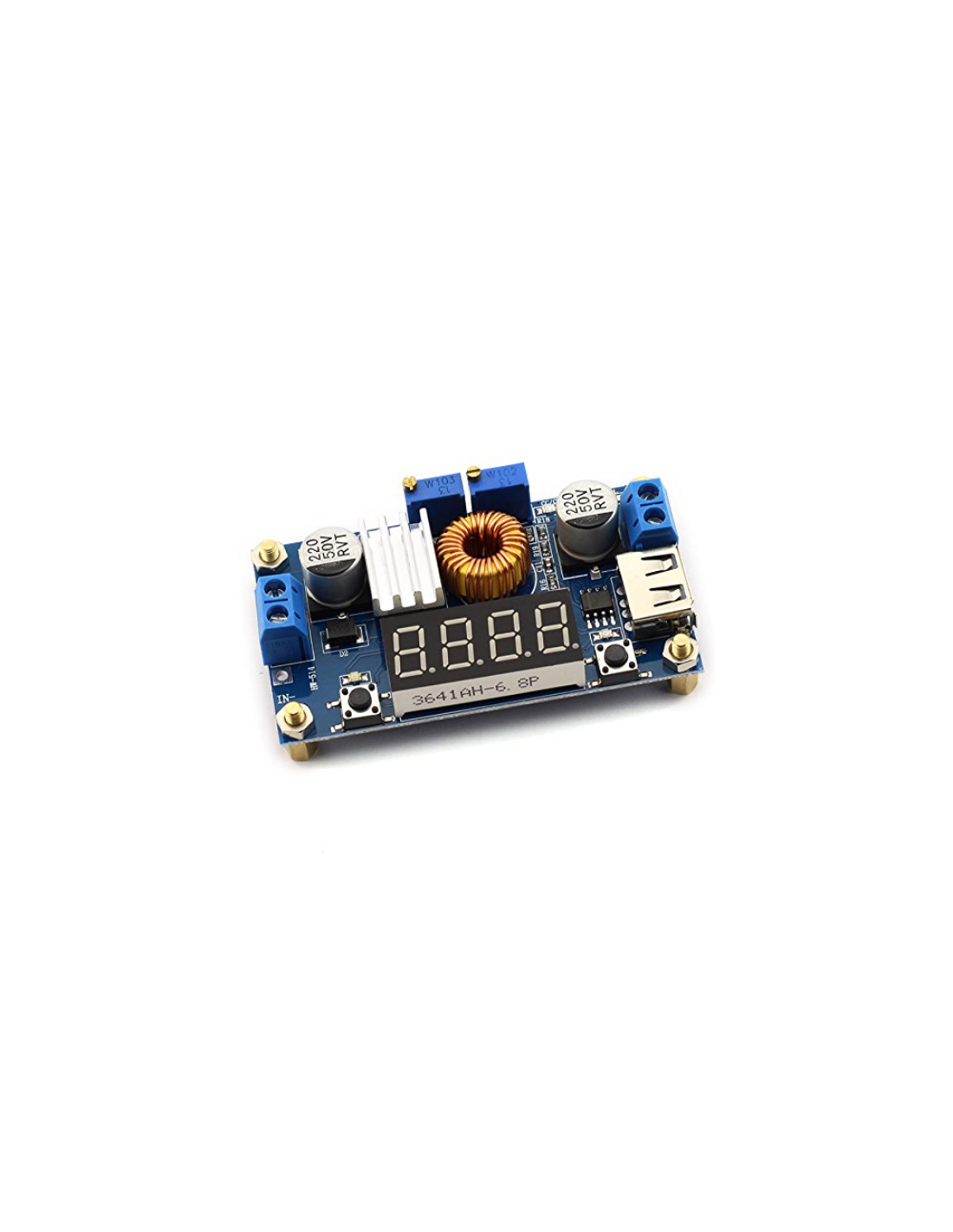

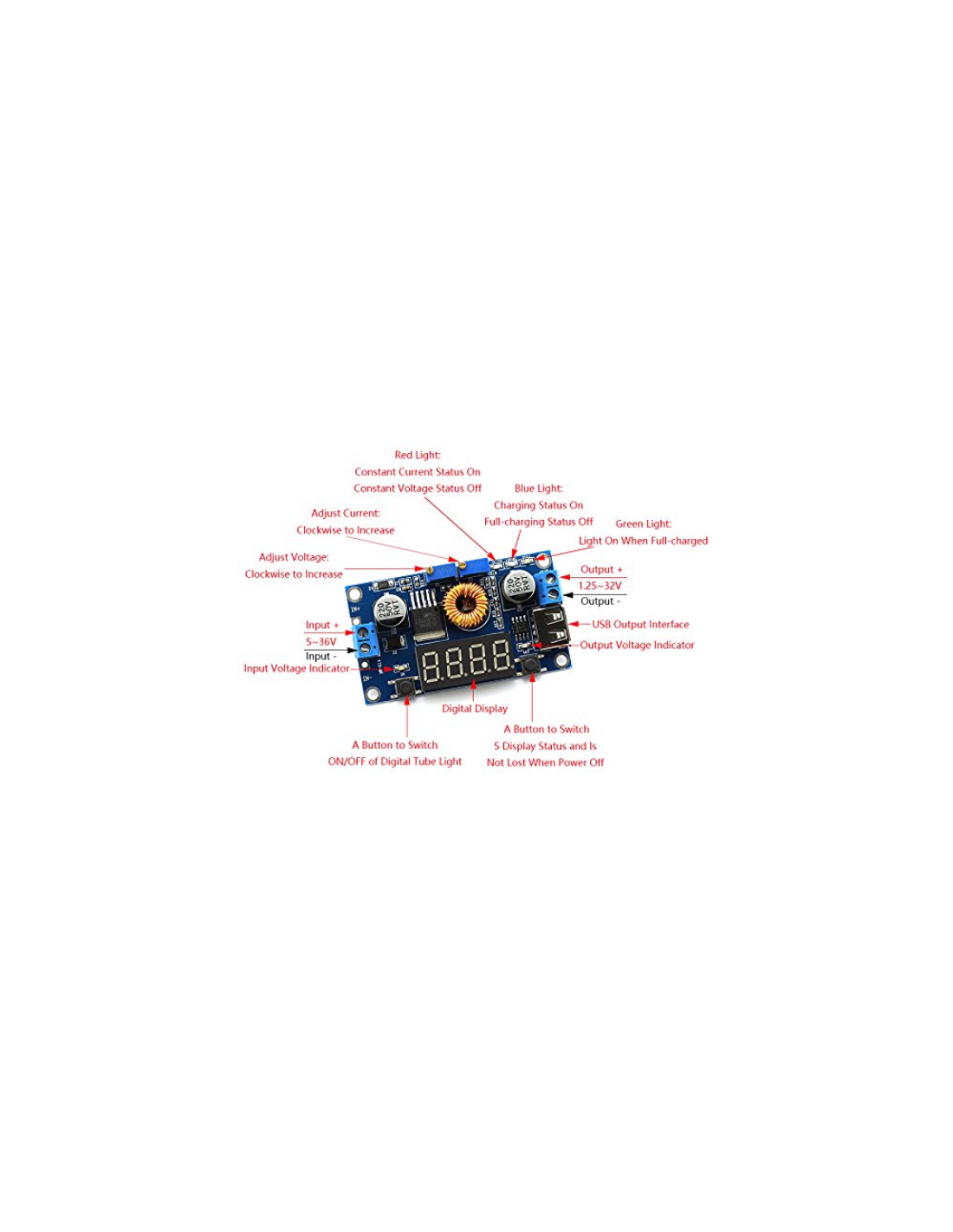

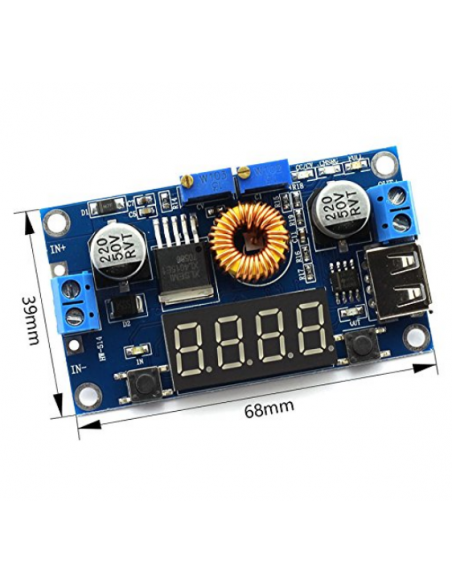

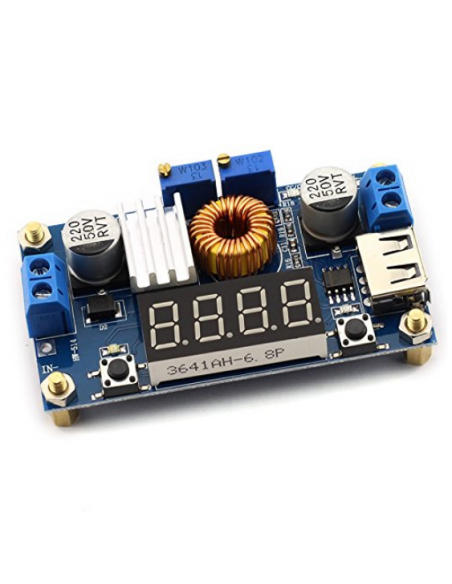

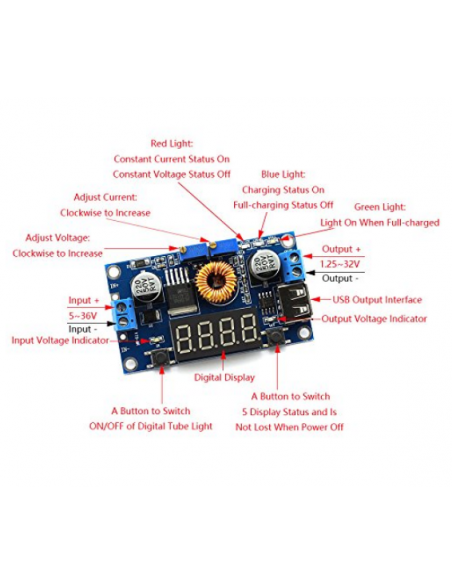

Constant Voltage & Current 5-36V to 1.25-32V 5A 75W Step Down LED Driver Switching Power Supply with Digital LED Display Voltmeter USB Output Interface
POW-00244
In Stock
R166.70
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Specifications:

Input voltage: 5-36V

Output voltage: 1.25-32V continuously adjustable

Output current: adjustable 5A MAX  (recommended below 4.5A)

Output power: maximum 75W (recommended below 50W in the pressure difference, please reduce the power)

Operating temperature: -40 degrees to +85 degrees

Working frequency: 180KHz Conversion efficiency: up to 96% Short circuit protection

Overheat protection (over temperature automatic shutdown output)

Reverse link protection: No (add diode if necessary)

Applications:

Over-current protection step-down module.

As a variety of voltage battery charger for solar panels, wind turbines.

A high-power LED constant current driver module.

Precautions:

If the output power is greater than 3A 35W, please strengthen the heat.

If your load is a USB device, make sure the output voltage is 5V
