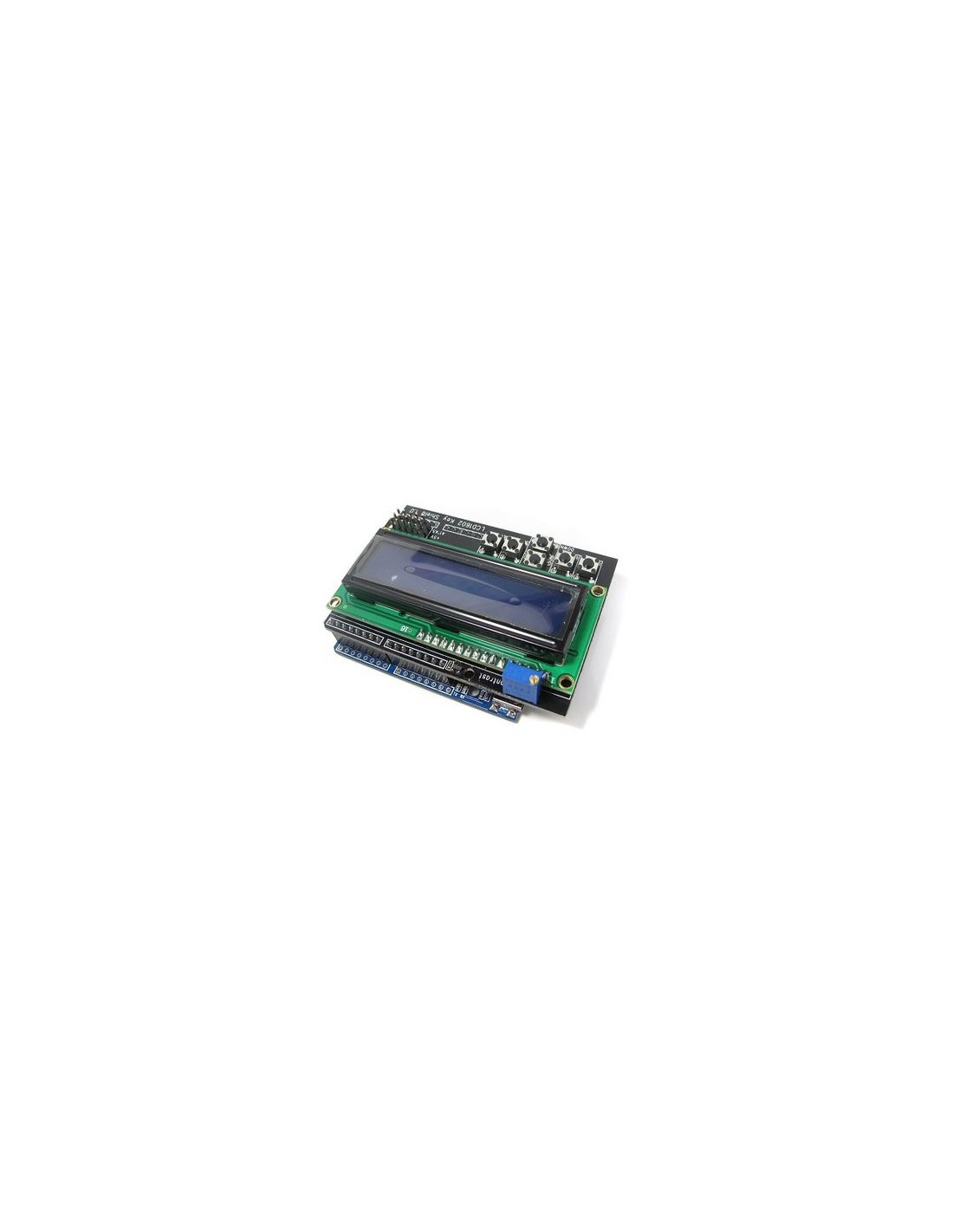

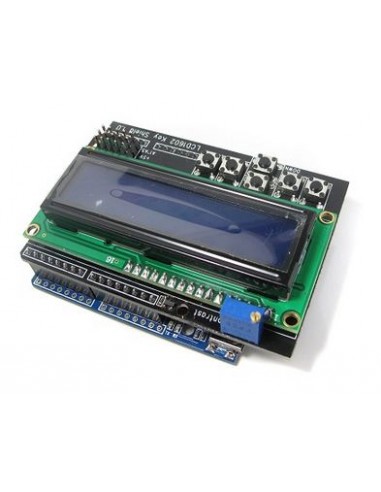

LCD and Keypad Shield (1602)

Reference DIS-00045

Last items in stock

R140.00

Tax included

In stock 3 Items

Secure Checkout

Pay via Card, Zapper or Bank Transfer.

Free Delivery over R1000

To your door delivery. South Africa Only.

Guaranteed Customer Support

Need help? See our Support Page.

Description

The 1602 LCD Keypad Shield is an affordable and easy way to add a simple 16 x 2 LCD screen and 5 button menu to your Arduino projects. The LCD Display uses the LiquidCrystal library that comes standard with the Arduino IDE. The library examples work with the following change in the initialization: LiquidCrystal lcd(8, 9, 4, 5, 6, 7. The 5 navigation buttons use a resistor ladder to connect to analog pin 0. Just use the analogRead(); command to read in the different values.

Specifications:

This is a 16×2 LCD Keypad module for Arduino board.
Uses HD44780 1602 LCD,
Uses 4 Bit Arduino LCD Library LiquidCrystal
Extra buttons to control connection of A0 arduino pin (can be used to control the LCD and analog value reading on pin)

* PLEASE NOTE: Images are for display purposes only
