12V Lithium Battery Step Up Module
12V Lithium Battery Step Up Module

12V Lithium Battery Step Up Module

POW-009045
Backorder (Out of Stock)
R175.00
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Introducing the 12V Lithium Battery Step Up Module 4 in 1 Integrated Plate - the ultimate solution for powering up your devices on the go. This high-quality module is designed to provide a stable output voltage, making it perfect for use with various applications that require a 12V power source.
Whether you're a hobbyist, a DIY enthusiast, or a professional technician, this module is an essential addition to your toolkit.
One of the standout features of this module is its 4-in-1 integrated design. It combines a battery protection board, a boost converter and a charging module all in one compact package. This means you can power your devices without the need for multiple components.

The battery protection board ensures that your lithium battery is protected from overcharging, over-discharging, and short-circuiting. The boost converter provides a stable output voltage even when the input voltage fluctuates, making it ideal for use in applications where voltage stability is critical.
The charging module allows you to charge your battery directly from the module, eliminating the need for a separate charger.

Technical specifications:

Input voltage: 3.7V-5V
Output voltage: 12V
Output current: 400mA @ 12V
Charging current: 1A
Efficiency: up to 96%
Operating temperature: -20°C to +85°C

Overall, the 12V Lithium Battery Step Up Module 4 in 1 Integrated Plate is an excellent choice for anyone looking for a reliable and convenient way to power their devices. With its compact design, versatile features, and high-quality components, this module is sure to meet all your power needs.

Instructions:
Add a battery to the battery holder and your device is automatically turned on.
(We have already soldered everything together for you)
If you have the ability to solder, you can add a small switch (not supplied) to turn it on and off.

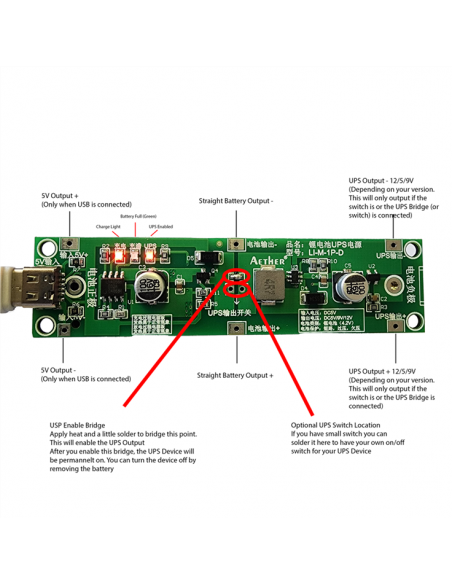

To do this you should first take the battery out and break the UPS Enable Bridge either with a soldering out or a sharp blade ( See the Diagram for Details )
Next, below the UPS Enable bridge there are two holes by which you can add a small switch.
This switch will now act as your UPS Enable bridge that you can enable and disable whenever you want.
