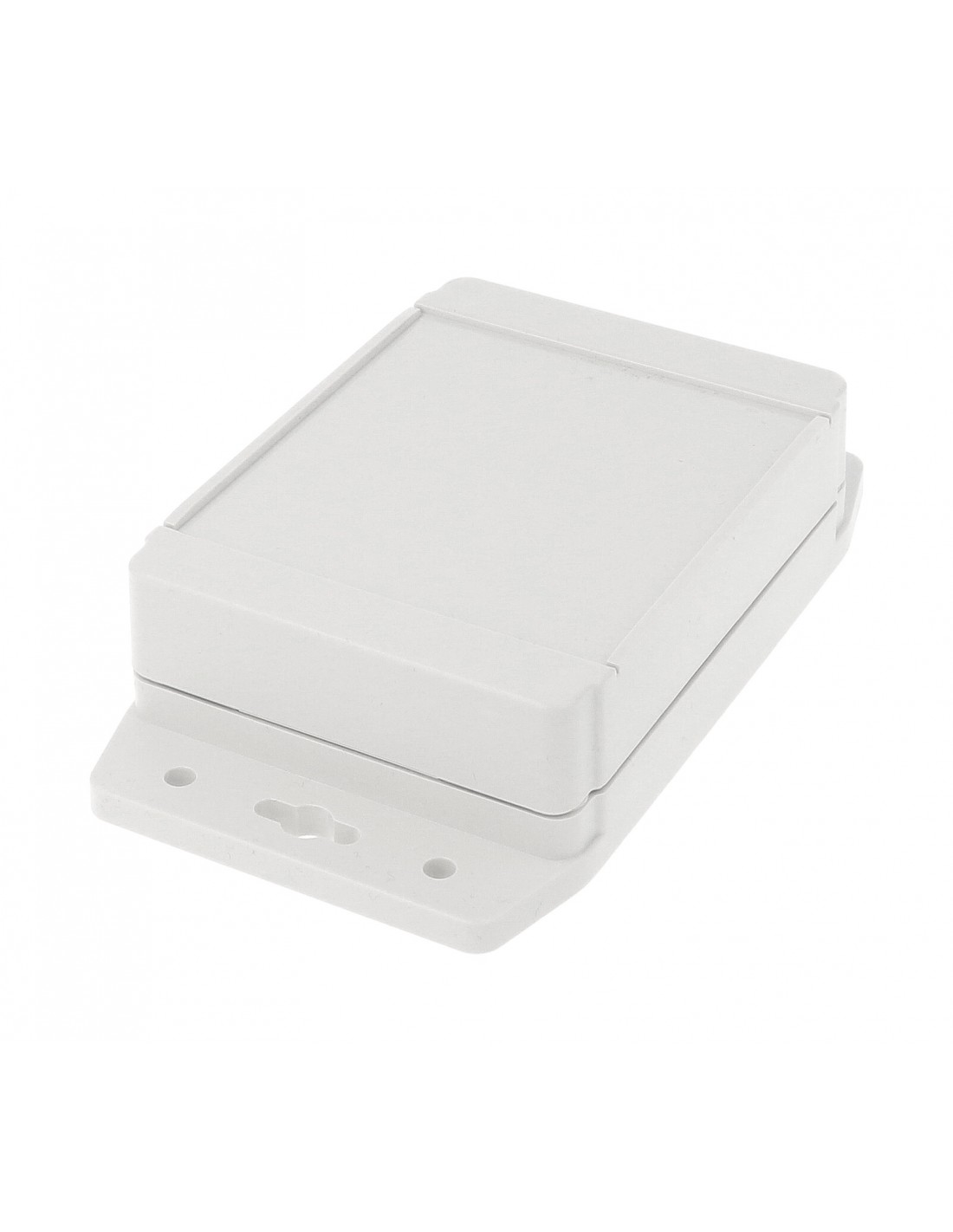

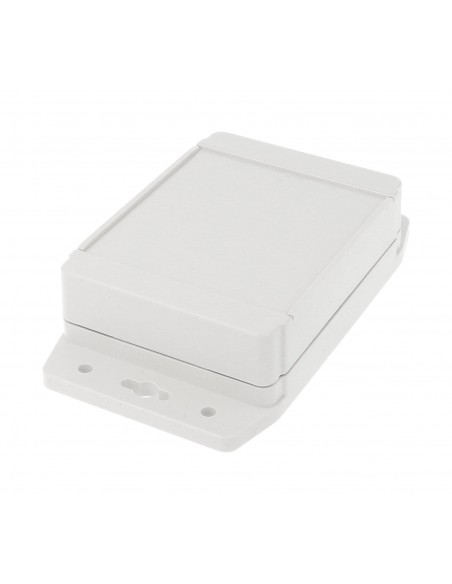

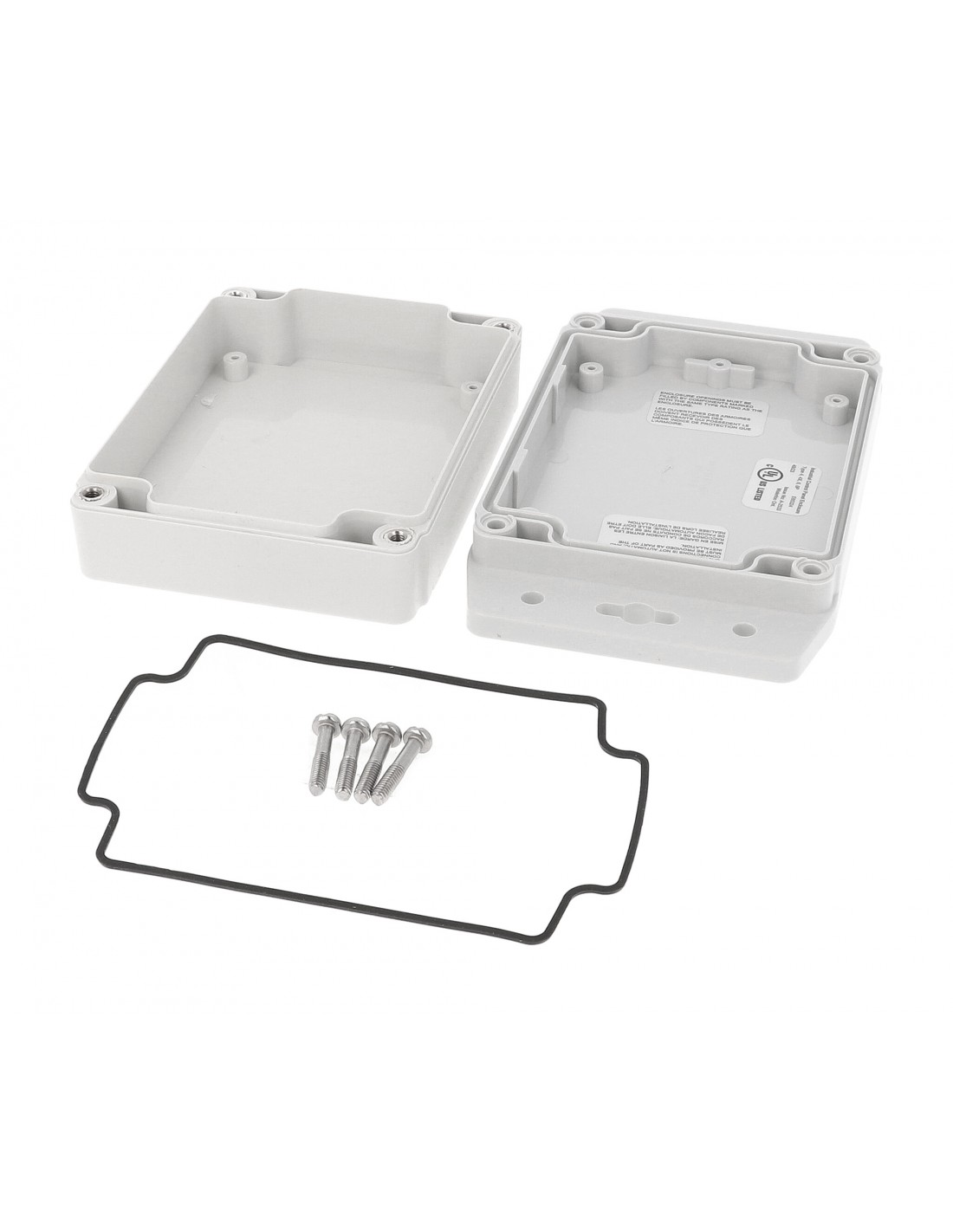

High-Performance, Weatherproof Electronics Enclosure for Harsh Environments

The 1555F2F17GY is a premium RAL7035 light-grey watertight plastic enclosure designed for demanding indoor and outdoor applications. Manufactured from high-impact polycarbonate and rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, this enclosure offers exceptional protection against dust, water, corrosion, and impact.
Its integrated flanged base allows easy wall, panel, or surface mounting—ideal for industrial control boxes, sensor housings, IoT devices, junction wiring, and embedded electronics.

Built to withstand extreme environments while maintaining a sleek, professional appearance, this enclosure is widely used across automation, security, marine, utilities, and electronics integration.

Key Features

• IP68 Watertight Protection – Fully dustproof and submersible; suitable for outdoor and harsh-weather installations.

• NEMA Rated (4/4X/6/6P/12/13) – Corrosion-resistant and impact-resistant for industrial use.

• High-Strength Polycarbonate Body – UV-stable, durable, and lightweight.

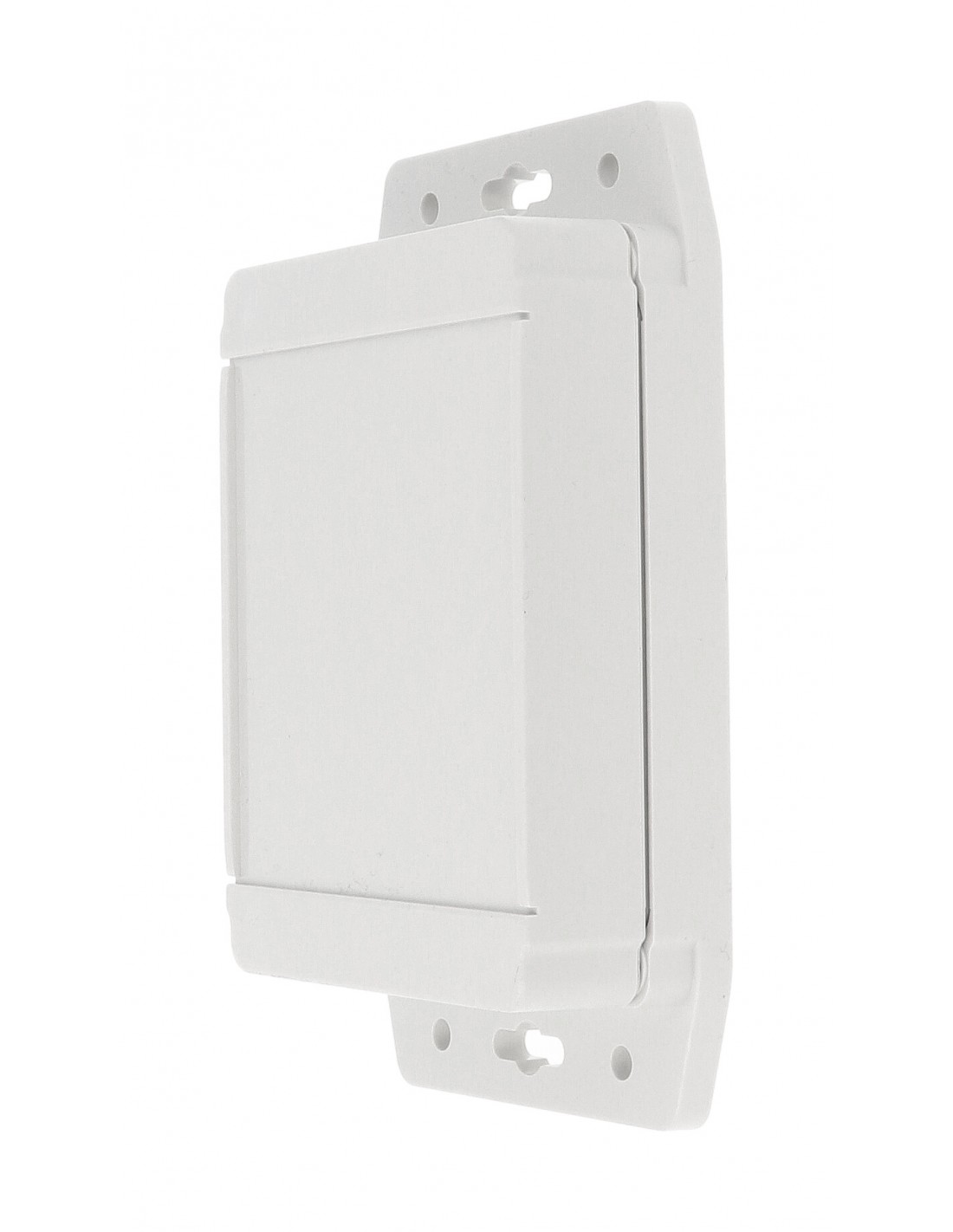

• Flanged Base Design – Convenient and secure mounting to walls, machinery, panels, and surfaces.

• Electronics-Ready Layout – Supports PCB mounting with generous internal space.

• Flame Rating UL94 5VA – Superior fire resistance for safety-critical environments.

• RAL7035 Light Grey Finish – Professional, modern aesthetic for commercial installations.

• REACH & RoHS Compliant – Safe, environmentally responsible material composition.

Technical Specifications

General

• Part Number: 1555F2F17GY

• Series: Hammond 1555F Series – Type 4X, 6P Enclosures

• Product Category: Enclosures

• Type: Watertight, flanged polycarbonate enclosure

• Color: RAL7035 Light Grey

• Material: Polycarbonate

• Flame Rating: UL94 5VA

• Packaging: Shrink-wrapped

Environmental Ratings

• IP Rating: IP68 (dust-tight and submersible)

• NEMA Ratings: 4, 4X, 6, 6P, 12, 13

• UV Resistant: Yes

• Corrosion Resistant: Yes

Dimensions

• External:
  119 mm (L) × 91 mm (W) × 37 mm (H)
  4.7 in × 3.6 in × 1.47 in

• Maximum PCB Support:

  • Length: 76 mm

  • Width: 108 mm

Compliance & Approvals

• UL File #: E65324

• RoHS Compliant: Yes

• REACH Compliant: Yes

• UNSPSC: 39121301

• UPC: 623980035925

Weight

• Shipping Weight: 0.38 lbs (0.17 kg)

Typical Applications

• Security system controllers

• Sensor nodes & IoT devices

• Marine and outdoor electrical junction boxes

• Industrial automation modules

• Power distribution nodes

• Low-voltage wiring enclosures

• Embedded controller projects

• Communication equipment housings
