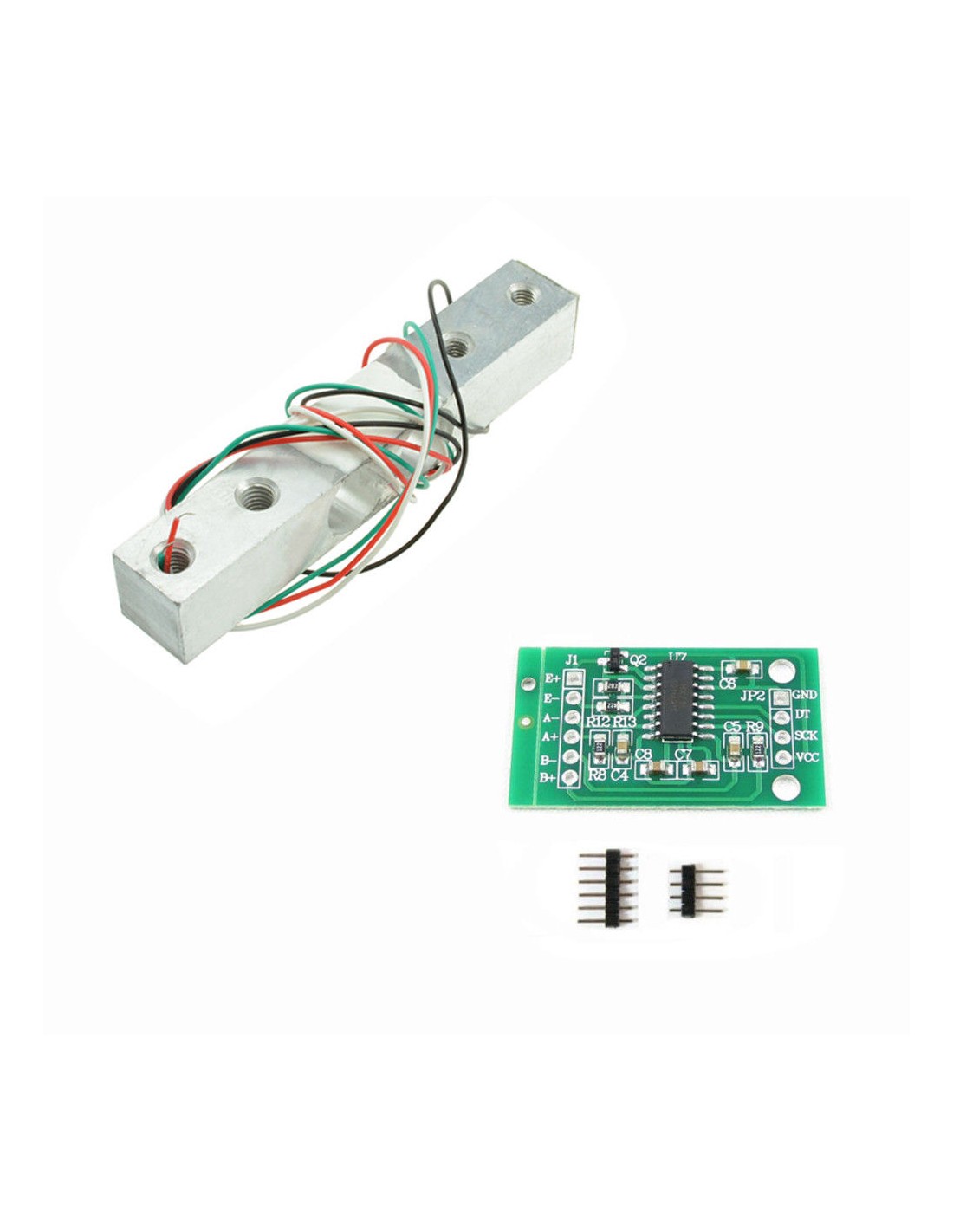

10KG - Load Cell Amplifier, Weight Sensor Kit, HX711

SEN-00188
Backorder (Out of Stock)
R48.50
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Description

  • HX711 load cell amplifier
    • Internal 24bit ADC amplifier
    • Two selectable differential input channels
    • On-chip active low noise PGA with selectable gain of 32, 64 and 128
    • On-chip power supply regulator for load-cell and ADC analog power supply
    • Output sensing range depends on input voltage. For exmaple if input voltage is 5V, then full sensing range is 5V * 1mV = 5mV
    • The higher pressure force, the higher output analog voltage.
  • Common gauge load cell, version 10KG
  • Wiring from HX711 to load cell:
    • Load cell sensor RED – HX711 E+
    • Load cell sensor BLACK – HX711 E-
    • Load cell sensor WHITE – HX711 A-
    • Load cell sensor GREEN – HX711 A+
  • Wiring of HX711 to MCU Pins:
    • Gnd – power gorund
    • DT – data output
    • SCK – clock
    • VCC power 2.7-5V
