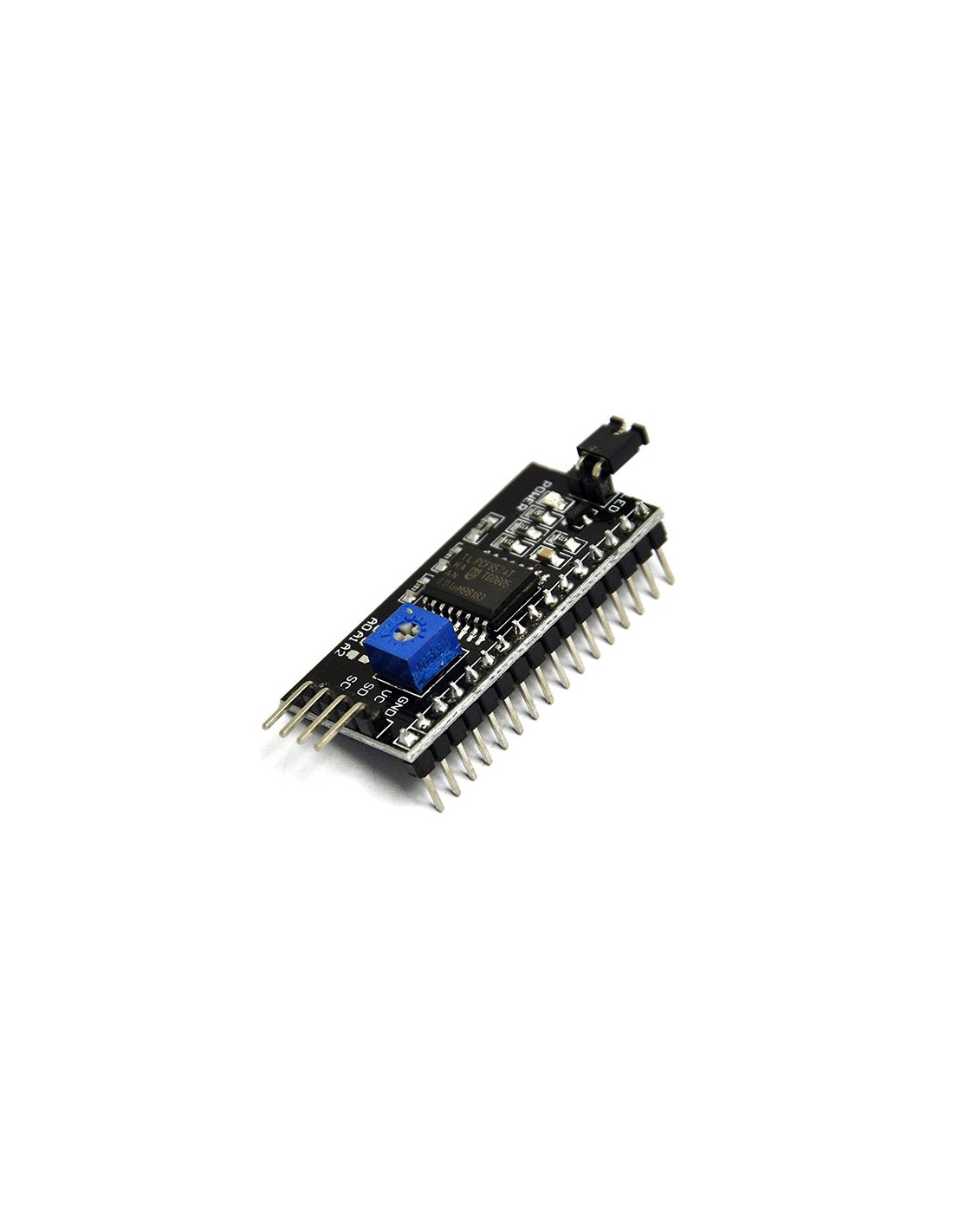

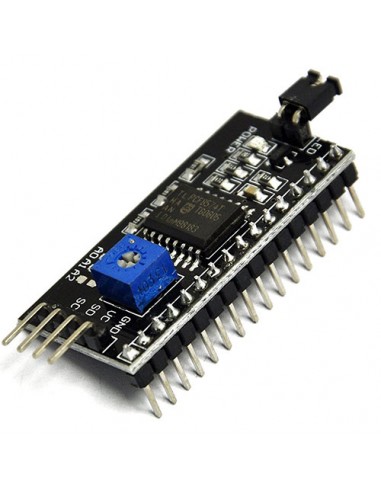

1602 LCD IIC-Interface Converter Board

1602 LCD IIC-Interface Converter Board

INT-00094
Last items in stock
R23.30
Tax included
1 Item

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R1000

To your door delivery. South Africa Only.

  Guaranteed Customer Support

Need help? See our Support Page.

custom html

Description

Description

Simply the interface of 1602 to IIC, save more IOs, with this board you only need two IOs.

Product info:

  • Supply voltage: 2.5-6V
  • 41.5mm (length) * 19mm (W) * 15.3mm (height)
  • IIC I2C Interface.
  • Contrast back light can be adjusted by rotating the blue potentiometer, clockwise to increase, counterclockwise weakened. Potentiometer design on the front, enabling customers to freely adjust anytime
  • 4-wire output
  • Modules can be cascaded up to cascade 8. By short-circuiting A0/A1/A2 modify the device address. The default address is 0x27
  • With backlight power control, can be connected via jumper settings are backlight power. Plug the jumper to connect the backlight off, unplug the jumper to disconnect the backlight power

Product Details

1 Item

Reviews

No reviews
