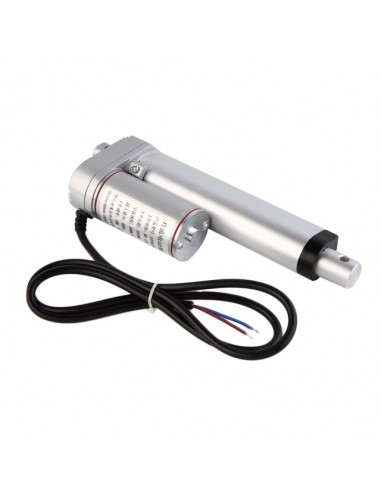

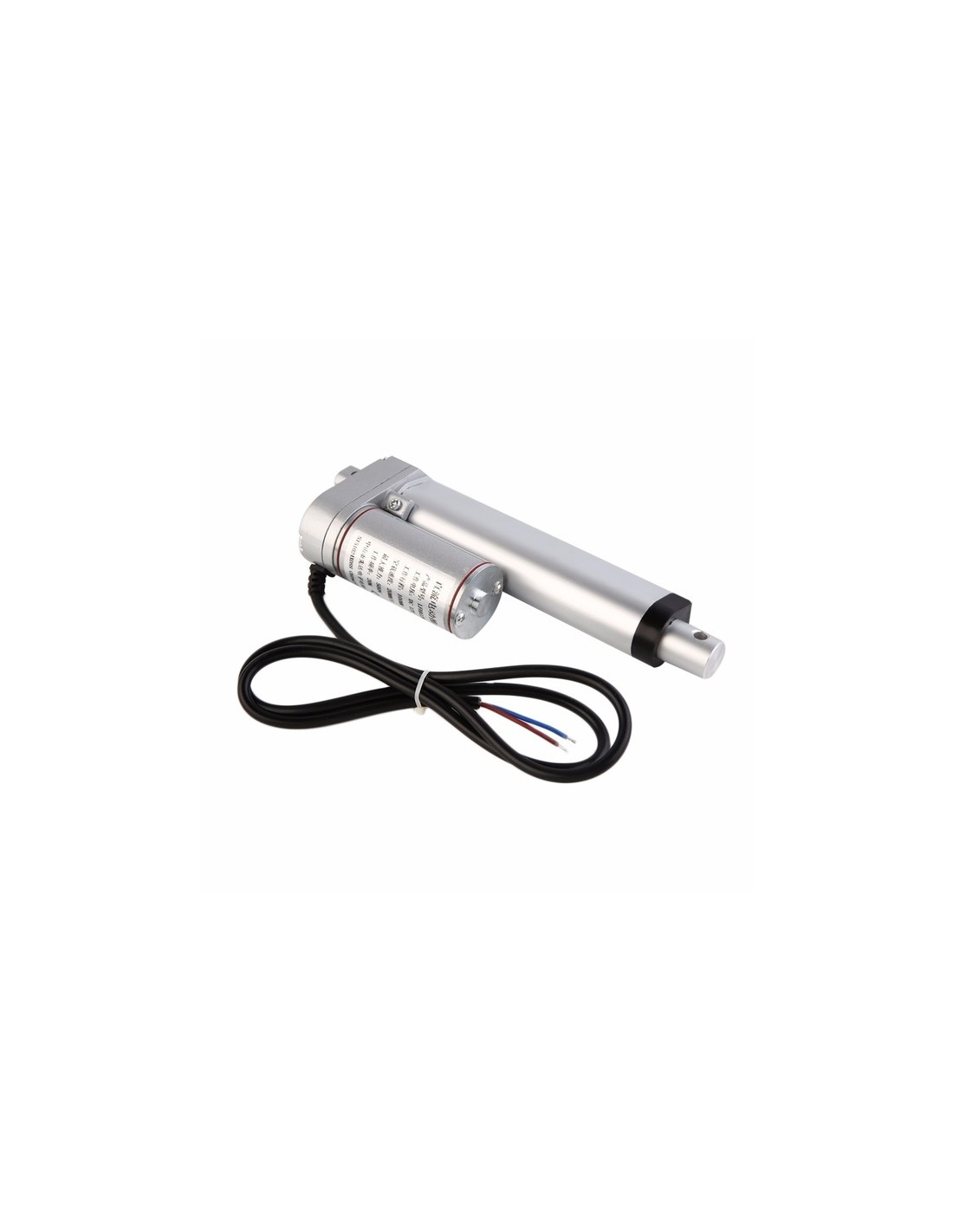

100mm Stroke Linear Actuator
100mm Stroke Linear Actuator

100mm Stroke Linear Actuator

12VDC Linear Actuator
3DP-005037
Last items in stock
R1,126.90
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery. Main Centres Only.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Input voltage: 12VDC
Load capacity: Max 750N (push) Speed: 12mm/s (no load)
Stroke: 100mm(Customized Stroke Available, price is different)
Mounting type: mounting plate for vertical or horizontal
Duty cycle: 10% 2min on 18min off
Limit switches: Built-in, factory preset Operation temperature: -25°C ~ +65°C
Protection class: IP54
Minimum installation distance: ≥100mm stroke+105mm

For more information on how linear actuators work please visit this link: Linear Actuators
