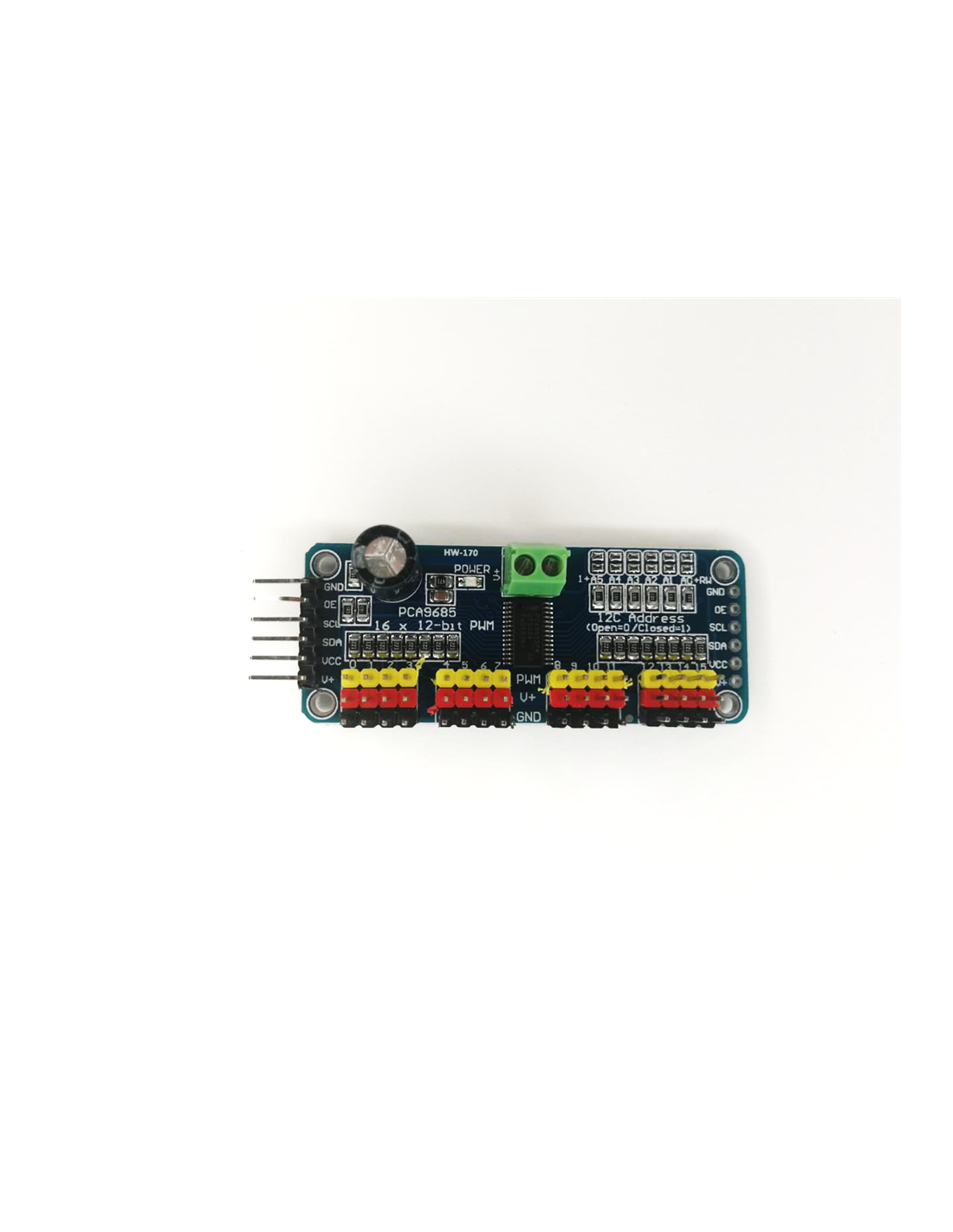

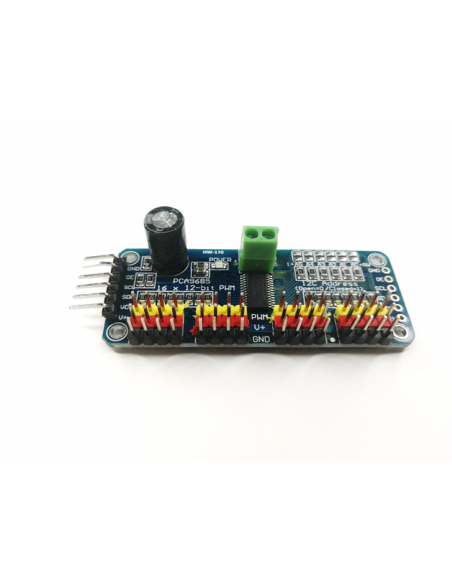

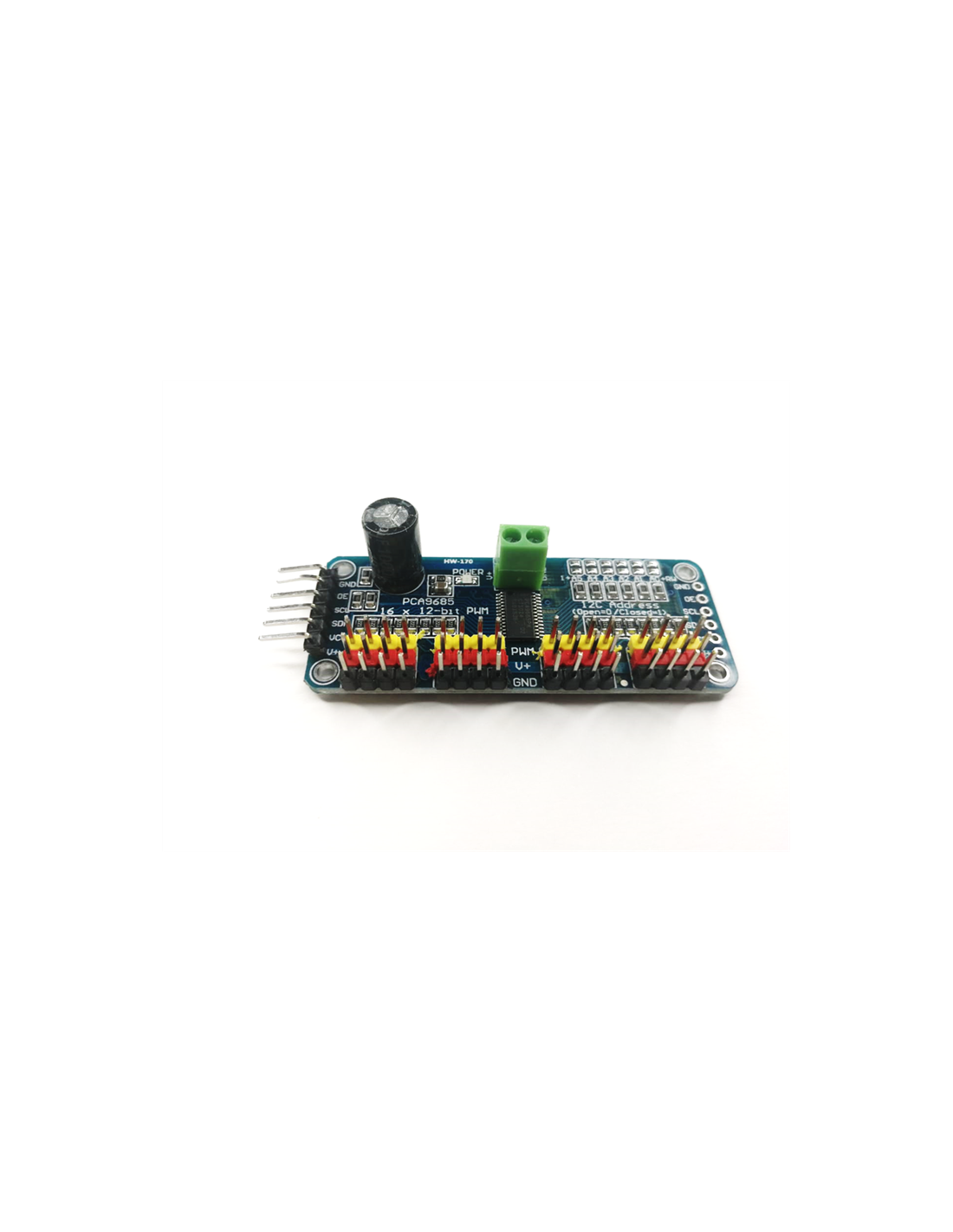

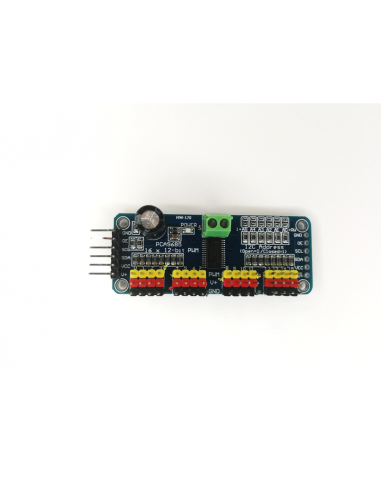

16 Channel 12-bit PWM/Servo Driver
16 Channel 12-bit PWM/Servo Driver

16 Channel 12-bit PWM/Servo Driver

MEC-000282
Last items in stock
R113.70
Tax included

  Secure Checkout

Pay via Card, Zapper or Bank Transfer.

  Free Delivery over R750

To your door delivery.

  Guaranteed Customer Support

Need help? See our Support Page.

Description

Using only two pins, control 16 free-running PWM outputs!

You can even chain up 62 breakout board to control up to 992 PWM outputs (which we would really like to see since it would be glorious).

Features:
  • IIC interface, PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your MCU, its completely free running!
  • Power supply 5V, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
  • Chain able design, 6 address select pins, so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs – that’s a lot of servos or LEDs
  • Adjustable frequency PWM up to about 1.6 KHz
  • 12-bit resolution for each output – for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output
  • Output enable pin to quickly disable all the outputs
  • On board 220ohm resistors can drive for LED output.
