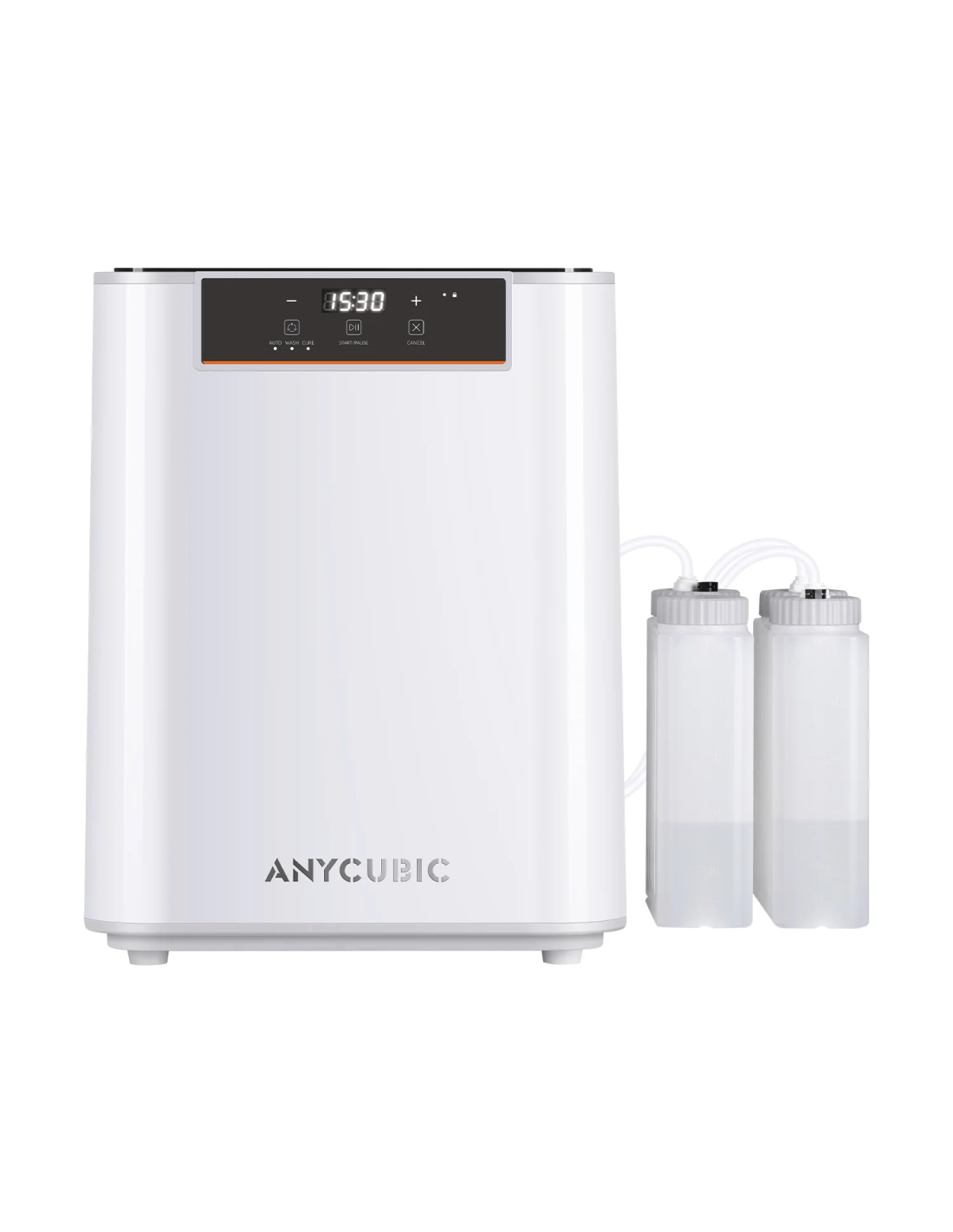

Anycubic Wash and Cure 3 Max

Large-format resin post-processing | 15.1L maximum curing volume | 305 × 165 × 300mm washing capacity | Automated washing & UV curing | 360° spray cleaning | 405nm UV curing

The Anycubic Wash & Cure 3 Max is a large-capacity resin 3D print washing and UV curing station designed to make post-processing bigger models and batch prints faster, cleaner and more convenient. Combining automated washing and curing in a single machine, it is an ideal companion for large-format resin 3D printers including the Anycubic Photon M3 Max and Photon Mono M7 Max, as well as many other LCD resin printers up to 13.6 inches.

With a generous 305 × 165 × 300mm maximum cleaning area, a 20L cleaning container and a maximum curing volume of approximately 15.1L, the Wash & Cure 3 Max provides the capacity needed for large resin models or multiple smaller parts in a single post-processing cycle.

Automated Resin Washing & Curing

Post-processing resin prints can be messy and time-consuming. The Anycubic Wash & Cure 3 Max simplifies the process with an integrated system that combines washing and UV curing in one dedicated workstation.

Its one-click automated operation reduces the amount of manual handling required between printing and finishing, helping create a cleaner and more efficient resin 3D printing workflow.

Choose between three operating modes depending on your requirements:

• Auto Mode: 13–42.5 minutes

• Wash Mode: 10–39.5 minutes

• Cure Mode: 0.5–30 minutes

This flexibility allows you to adjust processing time according to the size, geometry and resin type of your model.

Large 305 × 165 × 300mm Washing Capacity

Built with large-format resin printing in mind, the Wash & Cure 3 Max supports models up to 305 × 165 × 300mm during washing.

The large working area makes it suitable for processing:

• Large resin figurines and statues

• Scale models

• Engineering prototypes

• Large display pieces

• Multiple miniatures simultaneously

• Batch-produced resin components

• Models from large-format LCD resin printers

It is compatible with the Anycubic Photon M3 Max, Photon Mono M7 Max and most mainstream LCD resin printers with a build size of 13.6 inches or smaller.

360° Spray & Immersion Cleaning

The Wash & Cure 3 Max uses a combination of alcohol soaking and spray rinsing to clean uncured resin from printed models.

Its 360° spray-cleaning system works together with bottom-section immersion to reach complex surfaces and recessed areas while making efficient use of cleaning liquid.

This approach is particularly useful for large or detailed models where manual cleaning can be difficult and inconsistent.

Powerful 405nm UV Curing

Once your model has been cleaned, the same machine can be used for final UV curing.

The curing system features 20 × 405nm UV LEDs together with a flexible gooseneck UV light, providing additional exposure to areas that can be difficult to reach with conventional fixed curing lights.

A rotating curing platform helps expose the model from multiple directions for more consistent curing across the print.

The system can deliver a maximum UV power density of up to 25,000μW/cm² at an irradiation distance of 18cm, providing powerful post-curing for compatible 405nm UV resin prints.

Intelligent Process Monitoring

The Anycubic Wash & Cure 3 Max includes intelligent monitoring designed to detect potential problems during operation.

The system can provide alerts for conditions including:

• Open cover

• Cleaning liquid not flowing correctly

• Outlet blockage

• Low-voltage conditions

These monitoring functions help make large-format resin post-processing more controlled and convenient.

Designed for an Easier Workflow

A transparent flip-open cover provides easy access to the working area while allowing you to view the machine during operation.

The straightforward touch-button control panel makes it easy to select operating modes and adjust processing times without complicated setup.

For users running larger resin printers or regularly processing multiple prints, the Wash & Cure 3 Max provides a dedicated post-processing solution that reduces manual washing and curing work.

Key Features

• Large-format resin washing and UV curing station

• Maximum 15.1L curing volume

• Large 305 × 165 × 300mm washing capacity

• 20L cleaning container

• One-click automated washing and curing

• Separate Auto, Wash and Cure modes

• Adjustable washing and curing times

• 360° spray-cleaning system

• Bottom-section immersion cleaning

• Alcohol soaking and spray-rinse cleaning method

• Rotating curing platform for more even UV exposure

• 20 × 405nm UV LEDs

• Additional flexible gooseneck UV curing light

• Maximum UV power density up to 25,000μW/cm² at 18cm

• Intelligent process and error monitoring

• Transparent flip-open cover

• Simple touch-button controls

• Suitable for large models and batch processing

• Compatible with many LCD resin 3D printers up to 13.6 inches

Specifications

• Brand: Anycubic

• Model: Wash & Cure 3 Max

• Accessory Type: Resin 3D Printer Wash & Cure Station

• Compatible Technology: LCD / MSLA Resin 3D Printing

• Maximum Curing Volume: 15.1L

• Maximum Washing Dimensions: 305 × 165 × 300mm

• Cleaning Container Capacity: 20L

• Cleaning Method: Alcohol Soaking + Spray Rinse

• Auto Mode Time: 13–42.5 Minutes

• Wash Mode Time: 10–39.5 Minutes

• Cure Mode Time: 0.5–30 Minutes

• UV Light Configuration: 20 × 405nm LEDs + Gooseneck UV Light

• Maximum UV Power Density: Up to 25,000μW/cm² at 18cm irradiation distance

• Control Interface: Touch Buttons

• Power Supply: 120W

• Product Dimensions: 434 × 434 × 556mm

• Product Weight: Approximately 13.5kg

• Package Dimensions: 505 × 500 × 620mm

• Package Weight: Approximately 19.1kg

• Warranty: 12 Months

Compatible Resin 3D Printers

The Anycubic Wash & Cure 3 Max is designed for large resin prints and is compatible with:

• Anycubic Photon M3 Max

• Anycubic Photon Mono M7 Max

• Most mainstream LCD/MSLA resin 3D printers with a build size of 13.6 inches or smaller

Compatibility should always be confirmed against the actual dimensions of the printed model rather than printer screen size alone.

What's in the Box

• 1 × Anycubic Wash & Cure 3 Max

• 1 × Wash & Cure Tray

• 1 × Detergent Drum

• 1 × Waste Liquid Drum

• 1 × Clean Liquid Drum

• 4 × Water Tubes

• 1 × Wrench Set

• 1 × Power Adapter

• 1 × Power Cord

• 1 × User Manual

Ideal For

The Anycubic Wash & Cure 3 Max is particularly well suited to:

• Large-format resin 3D printing

• Miniature and figurine production

• Large resin statues and display models

• Scale-model production

• Product and engineering prototypes

• Small-batch resin production

• Studios operating multiple resin printers

• Makers who want a cleaner, more automated post-processing workflow

For users who regularly work with larger resin prints, the Anycubic Wash & Cure 3 Max provides an all-in-one solution for washing and UV curing resin 3D prints, combining a large working capacity, automated cleaning, powerful 405nm UV curing and intelligent monitoring in one dedicated post-processing station.
