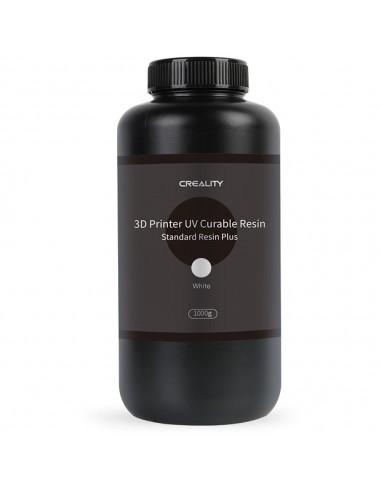

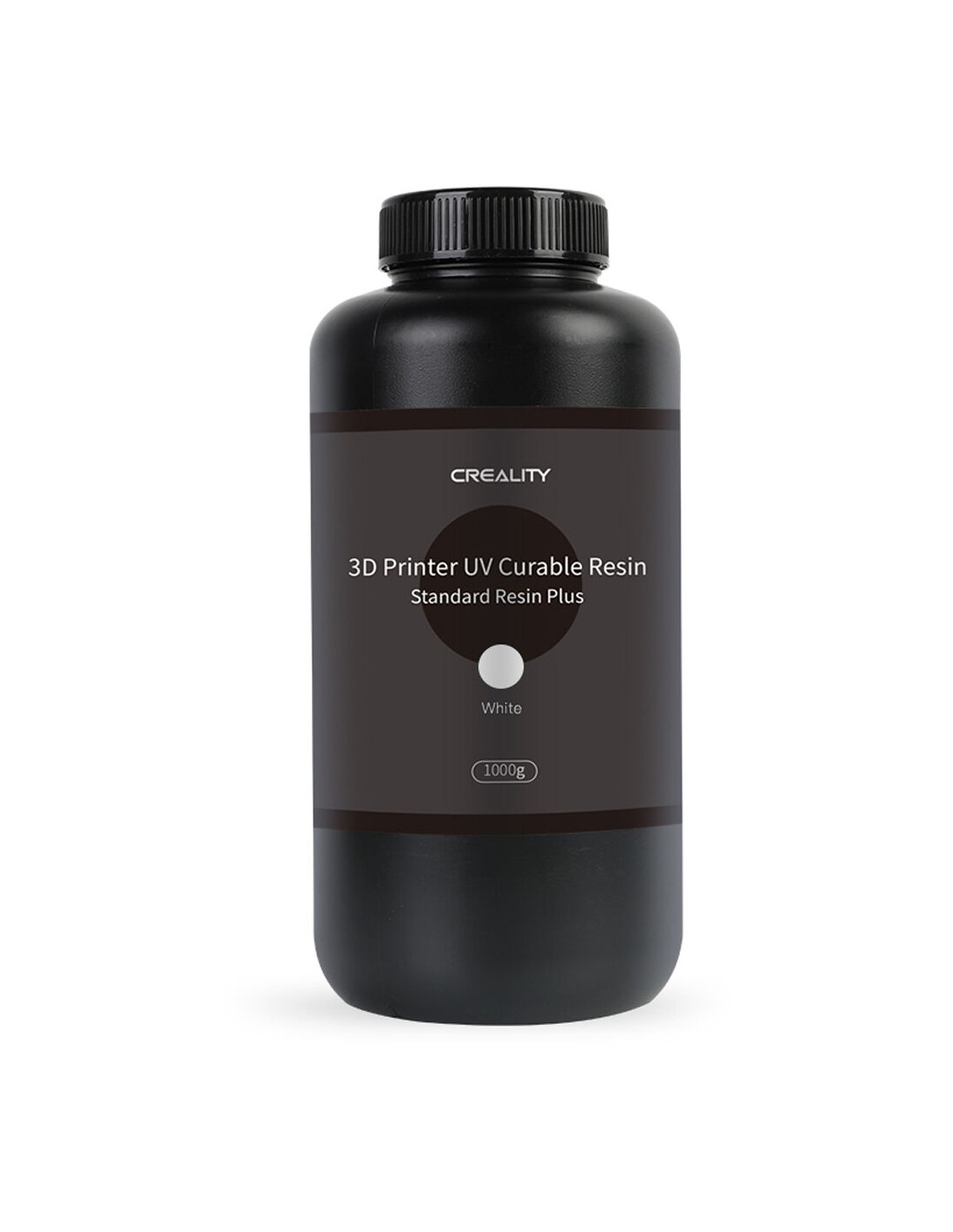

Creality LCD Standard Resin – White (1kg)

The Creality LCD Standard Resin in White is a high-precision photopolymer resin designed for LCD/DLP 3D printers. With excellent rigidity, smooth surface quality, and low shrinkage, it ensures reliable results for functional parts, prototypes, and detailed models.

Technical Specifications

• Product Code: 3302020085

• Material: UV Photopolymer Resin (Rigid Standard)

• Colour: White, opaque

• Net Weight: 1kg bottle

• Gross Weight: 1.35kg (with packaging)

• Packaging Size: 290 × 110 × 110mm

• Applicable Wavelength: 405nm UV curing

• Density: ~1.14 g/cm³

• Viscosity: 300 – 400 cps at 25°C

• Tensile Strength (Cured): 60 – 68 MPa

• Surface Hardness (Post-Cure): 85 – 90 D (Shore)

• Impact / Notch Strength: ~7.5 kJ/m²

• Shrinkage Rate: 3.5 – 4.2%

• Layer Curing Speed:

  • 1–4 seconds (monochrome screen)

  • 7–15 seconds (colour screen)

Key Features

• High rigidity and strength for durable functional prints

• Fast curing under 405nm UV light for efficient production

• Low shrinkage for improved dimensional accuracy

• Smooth surface finish with sharp detail reproduction

• Compatible with most 405nm LCD and DLP 3D printers, including Creality HALOT series

• Low-odor formula with carefully selected raw materials

Usage & Handling

• Shake well before use to evenly mix pigments and resin

• Store in a cool, dry place away from sunlight

• Post-cure under UV light for maximum hardness and durability

• Clean prints using isopropyl alcohol (IPA) or recommended cleaning solution

• Always wear gloves and protective gear when handling uncured resin

This resin is ideal for miniatures, prototypes, dental models, and creative designs that demand a clean white finish and excellent detail accuracy.
