ESP32 2.8" Smart Display Development Board with Capacitive Touch, WiFi & Bluetooth (ESP-WROOM)

The ESP32 2.8" Smart Display Development Board is an all-in-one HMI (Human Machine Interface) development platform that combines the powerful ESP32-WROOM dual-core processor, a vibrant 2.8-inch 240 × 320 TFT colour display, integrated touchscreen, WiFi, Bluetooth, and MicroSD card support into a compact and easy-to-use module.

Designed for makers, engineers, and IoT developers, this development board is ideal for creating interactive user interfaces, smart home controllers, industrial displays, IoT dashboards, data loggers, and automation systems. With full compatibility with the Arduino IDE, ESP-IDF, and LVGL (Light and Versatile Graphics Library), you can rapidly develop professional-looking graphical interfaces with minimal effort.

The included USB cable, touch pen, and connection leads allow you to get started quickly, whether you're building a prototype or a finished embedded product.

Features

• Powerful ESP32-WROOM dual-core processor
• 2.8-inch full-colour TFT LCD display
• 240 × 320 pixel resolution
• Integrated touchscreen for interactive applications
• Built-in 2.4GHz WiFi
• Bluetooth Classic and Bluetooth Low Energy (BLE)
• Compatible with Arduino IDE, PlatformIO, ESP-IDF and LVGL
• MicroSD card slot for data logging and image storage
• USB programming and power
• Compact all-in-one HMI development platform
• Ideal for IoT and smart display applications

Applications

• Smart home control panels
• IoT dashboards
• Home automation
• Industrial HMI displays
• Sensor monitoring systems
• Weather stations
• Data loggers
• Touchscreen user interfaces
• ESP32 learning and development
• Robotics
• DIY electronics
• Educational projects

Technical Specifications

• Processor: ESP32-WROOM Module
• CPU: Dual-Core Xtensa® 32-bit LX6
• Clock Speed: Up to 240MHz
• Wireless Connectivity:
  • WiFi 802.11 b/g/n (2.4GHz)
  • Bluetooth Classic
  • Bluetooth Low Energy (BLE)
• Display Size: 2.8 Inches
• Display Type: TFT LCD
• Resolution: 240 × 320 (QVGA)
• Touch Screen: Capacitive Touch
• Display Colours: 65K Colours
• Storage: MicroSD Card Slot
• Programming Interface: USB
• Programming Support:
  • Arduino IDE
  • ESP-IDF
  • PlatformIO
  • LVGL Graphics Library
• Power Supply: 5V via USB
• Logic Voltage: 3.3V
• Mounting: PCB Mount
• PCB Colour: Gold

Benefits

• Complete ESP32 development platform with integrated display
• Fast dual-core processing for responsive applications
• Wireless connectivity built in
• Professional graphical user interfaces using LVGL
• Expandable storage via MicroSD card
• Easy programming using the Arduino IDE
• Excellent for rapid prototyping and commercial product development

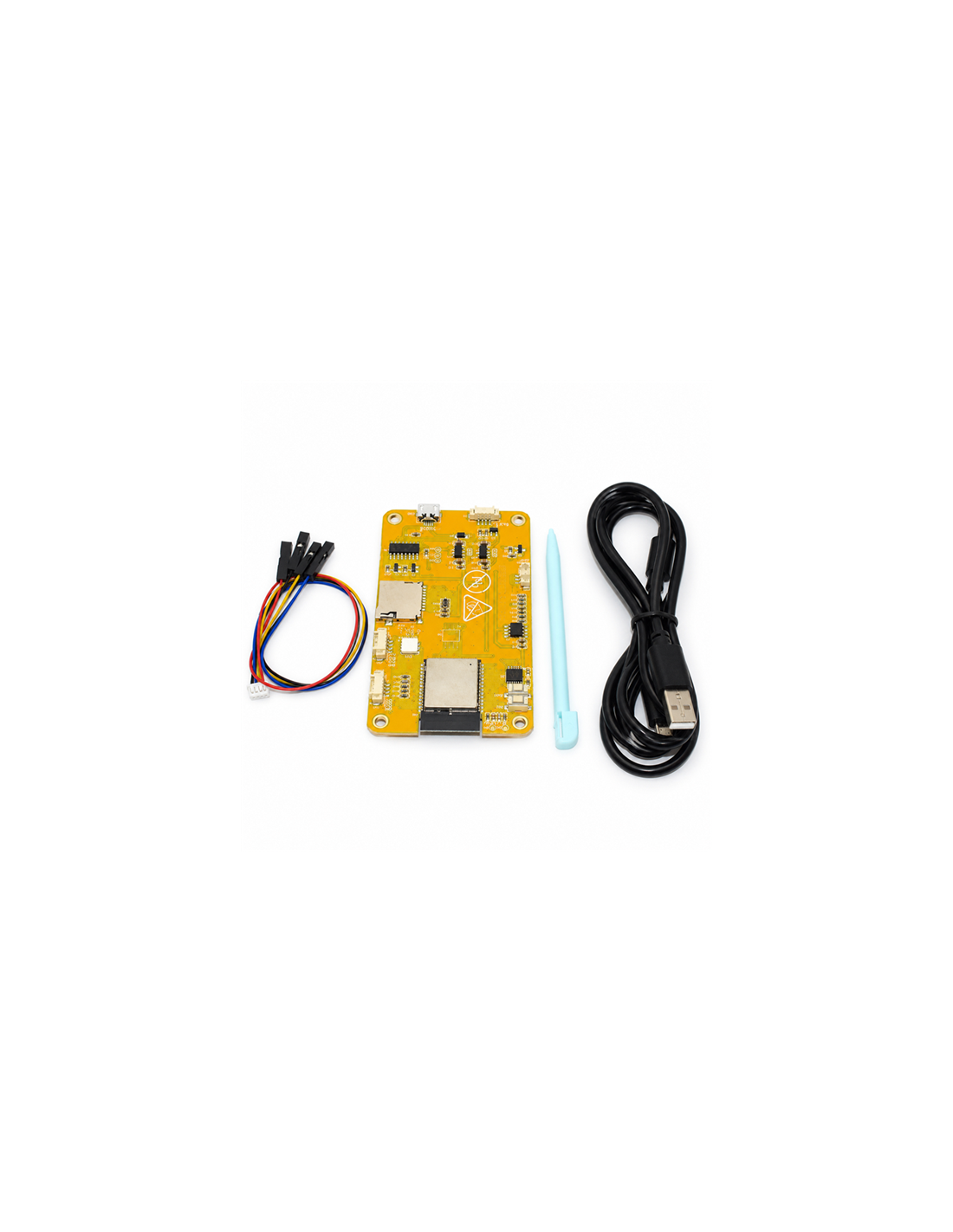

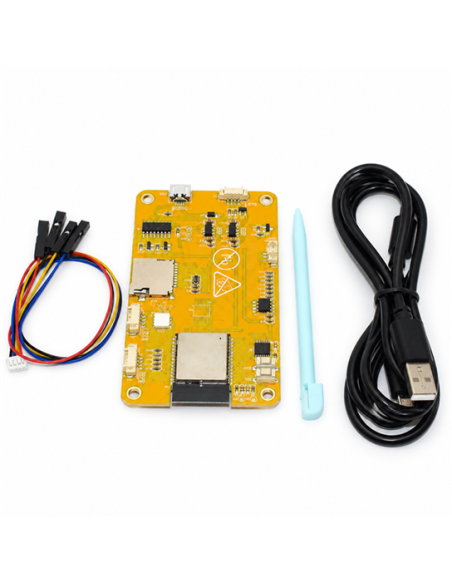

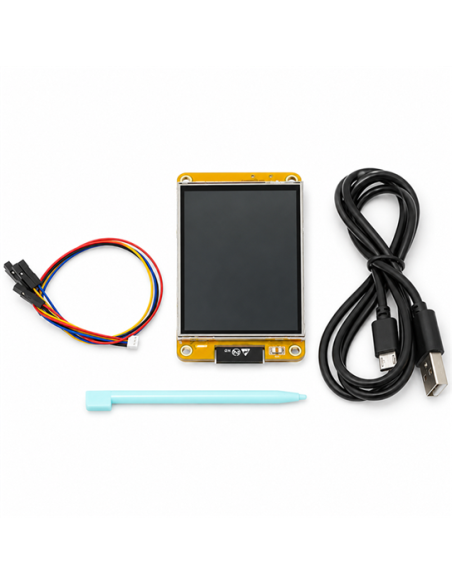

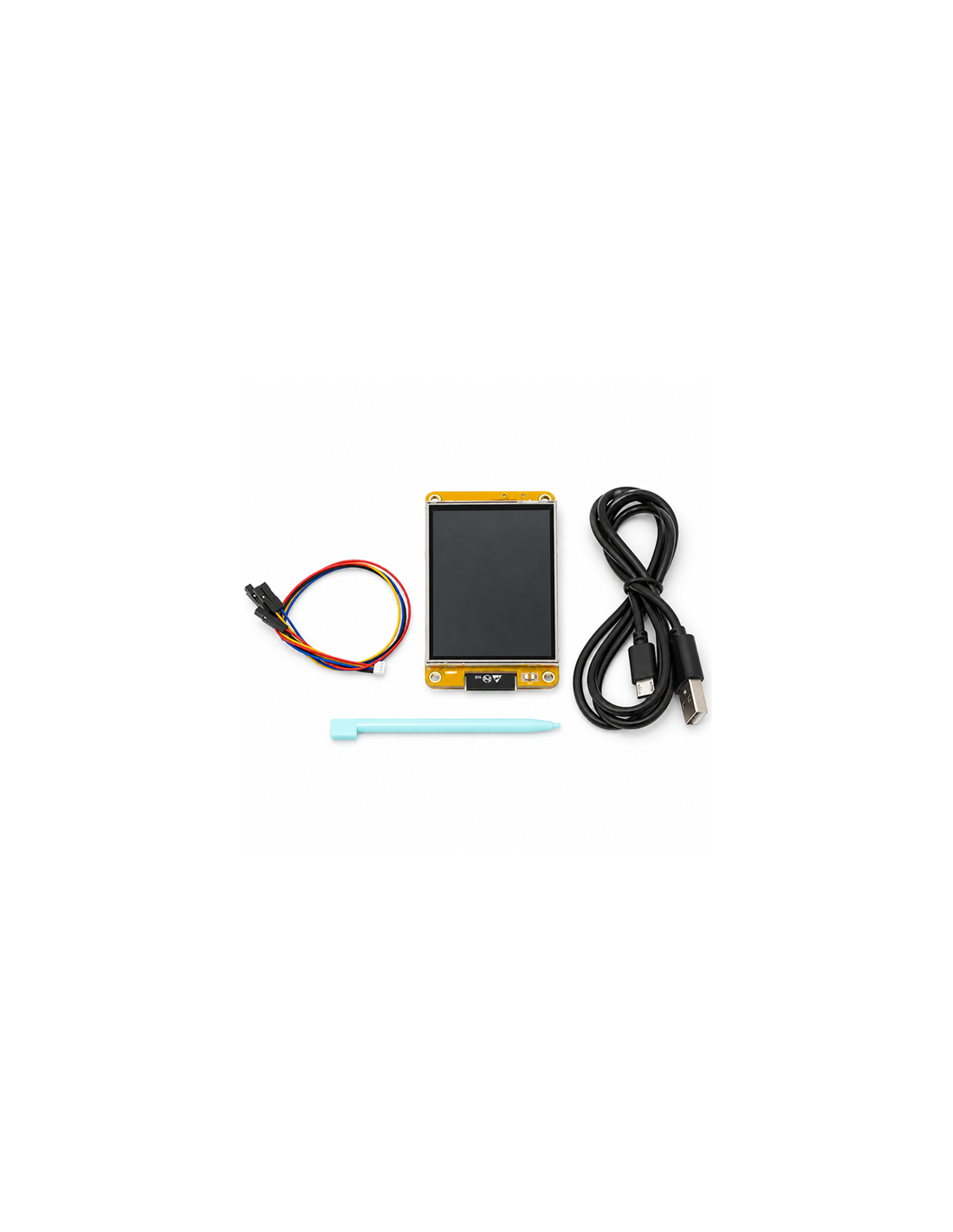

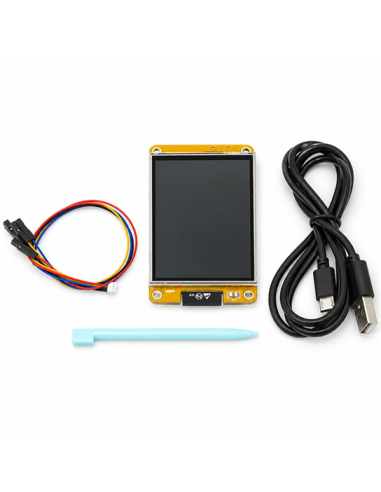

Package Includes

• 1 × ESP32 2.8" Smart Display Development Board
• 1 × USB Programming Cable
• 1 × Touchscreen Stylus
• 1 × Connection Cable Set

The ESP32 2.8" Smart Display Development Board is the perfect solution for developers looking to build modern touchscreen interfaces with wireless connectivity. Combining a powerful ESP32 processor, vibrant TFT display, capacitive touch control, WiFi, Bluetooth, and LVGL compatibility, this board provides everything needed to develop professional IoT devices, smart controllers, automation systems, and interactive embedded applications from a single compact platform.
